Gear Combined Pump — Combined Pump for fuel dispensing and station equipment.

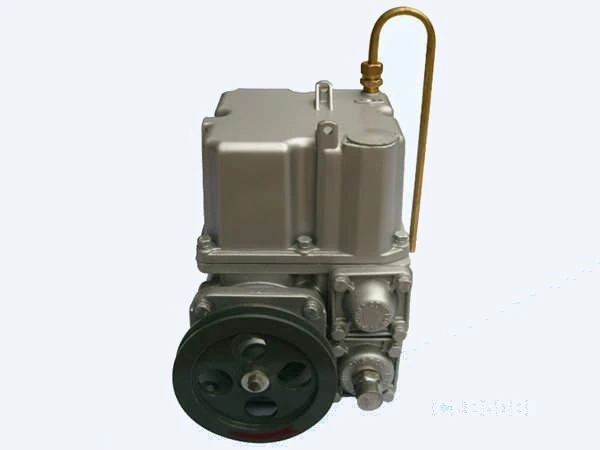

CLB50 is a gear-type combination pump for gasoline, kerosene and mixed fuel.
The pump and the air separator are combined in one body, giving small volume, compact structure, long working life, low noise and strong oil-air separation.
| Parameter | Value |
|---|---|
| Packing size | 345mm × 270mm × 390mm; 17KGS/CTN, 1PC/CTN |
| Collocate motor | 0.75Kw |
| Speed | 660rpm |
| Flow rated | 60L/min |
| Dry degree of vacuum | ≥0.054MPa |
| Noise level | ≤70dB |
| Output pressure | 0.18MPa – 0.35MPa |
CLB50 is a gear-type combination pump for gasoline, kerosene and mixed fuel. At 660 rpm from a 0.75 kW motor it delivers a rated 60 L/min, with dry vacuum of 0.054 MPa or better and output pressure between 0.18 and 0.35 MPa.
Noise is held at or below 70 dB. The pump and the air separator are combined in one body, which gives a small volume, a compact structure and strong oil-air separation — the reason the unit can sit inside a standard dispenser frame.
It ships one piece per carton in a 345 × 270 × 390 mm box at 17 kg, so freight and warehouse planning can be done from the packing data alone. Ask us for the container loading figure for the quantity you have in mind.
