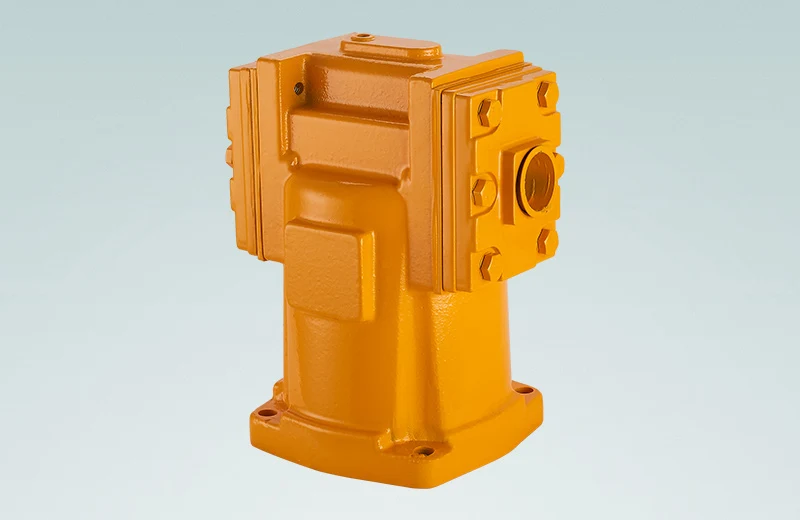

FL Air Eliminator
Vents air and vapor out of the line ahead of the meter, so only liquid passes the measuring unit.
| Material | Aluminum / cast iron / stainless steel options |
| Mounts on | Meter inlet line |
M-Series positive-displacement flowmeters for bulk transfer, truck loading and depot metering — with the air eliminators, strainers, registers and valves that complete the installation.
Every configuration is available in M40 (1.5″), M50 (2″), M80 (3″) and M100 (4″) port sizes.
Standard configuration for diesel and gasoline delivery. No external power required. Pulsed output available.
View specifications →
Electronic counter with IB box, solenoid valve (12 / 24 V DC), strainer and air eliminator. Real-time flow data.
View specifications →
Mechanical register with thermal printer for on-site ticketing. Self-contained, no power required.
View specifications →Eight working parts around the flowmeter — separate the air, strain the solids, count and print the delivery, and shut the line down cleanly.
Vents air and vapor out of the line ahead of the meter, so only liquid passes the measuring unit.
| Material | Aluminum / cast iron / stainless steel options |
| Mounts on | Meter inlet line |

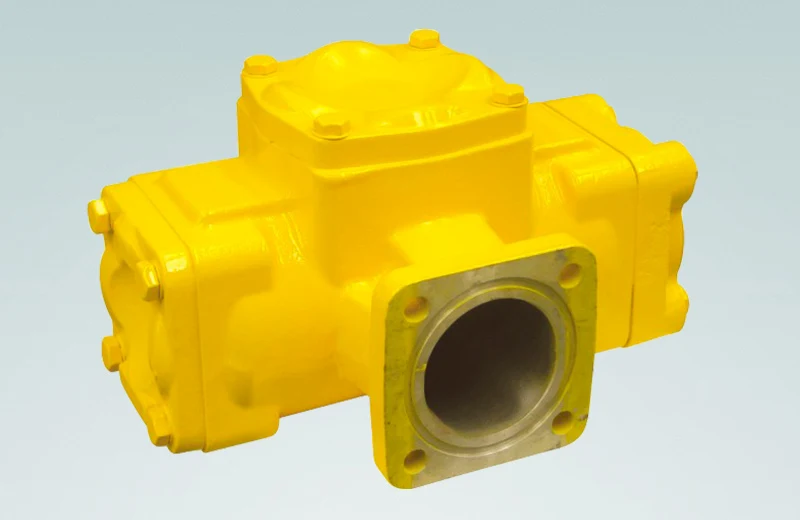

Strainer ahead of the meter — traps rust and solids before they reach the measuring unit.
| GLQ-50 | 50 mm / 2″ |
| GLQ-80 | 80 mm / 3″ |
| GLQ-100 | 100 mm / 4″ |
| GLQ-150 | 150 mm / 6″ |
| Material | Aluminum / cast iron / stainless steel options |

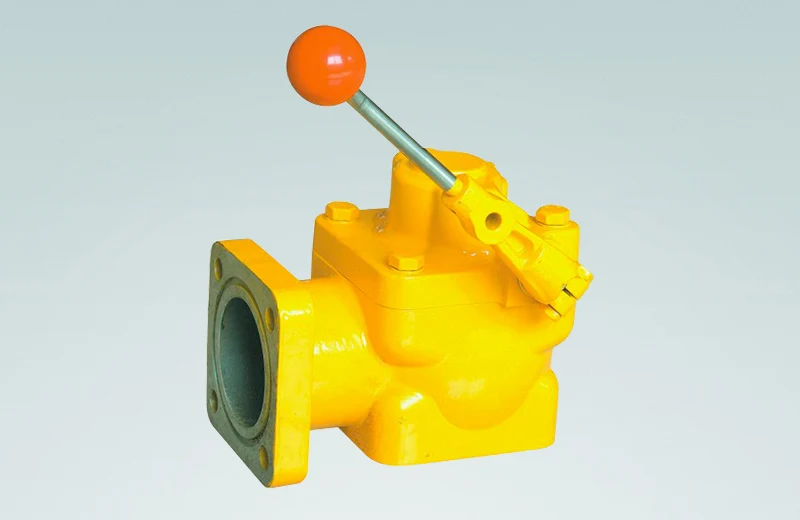

Mechanical preset valve on the meter outlet — shuts the flow off completely at any system pressure. Hand-operated, or linked to a single- / two-stage preset counter.
| V-50 | 1½″ and 2″ · 550 L/min |
| V-80 | 3″ · 1150 L/min |
| V-100 | 4″ · 1700 L/min |
| Material | Aluminum |
| Used with meter | M-40 / M-50 / M-80 / M-100 |

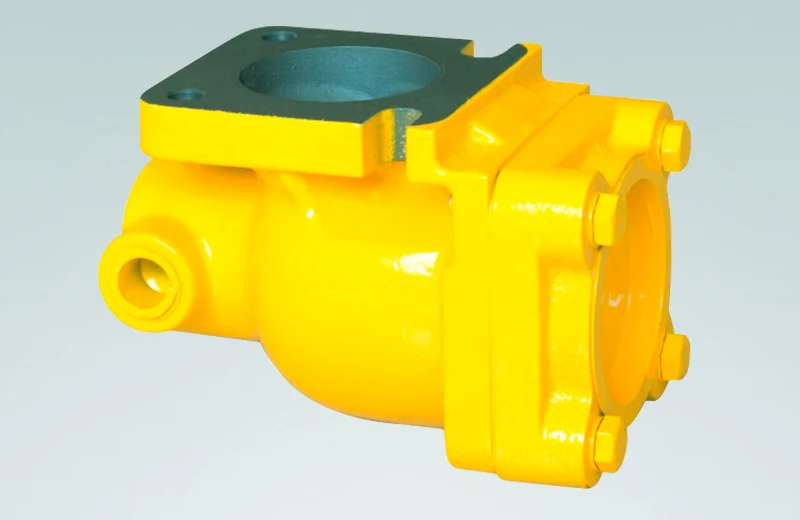

Pneumatic check valve on the meter outlet — cuts the liquid flow whenever air enters the line, keeping the measurement accurate.
| K-50 | 1½″ and 2″ · 550 L/min |
| K-80 | 3″ · 1150 L/min |
| Material | Aluminum |
| Used with meter | M-40 / M-50 / M-80 / M-100 |

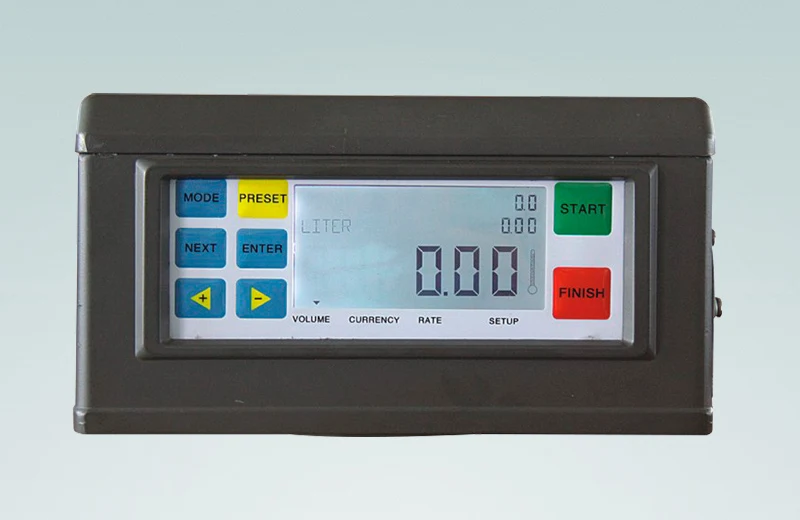

ARM-based electronic register with LCD — free or preset delivery, optional ticket printer. For depots, tank trucks and docks.
| Power | AC 220 V ±20%, 50 Hz ±1 Hz |
| Temperature | −20 °C to +55 °C |
| Humidity | ≤ 95% |
| Sub-total | 6 digits |
| Totalizer | 8 digits |
| Accuracy | ±0.1% |

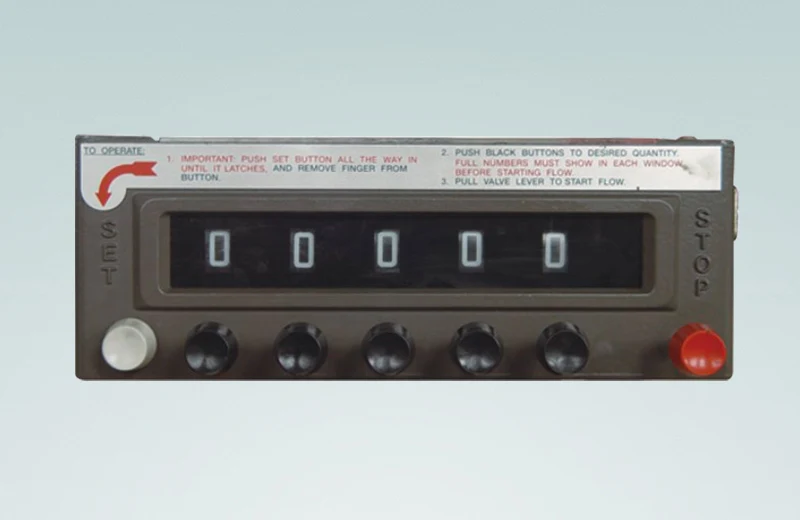

Single- or two-stage mechanical preset counter — dials in a delivery quantity and trips the mechanical preset valve.
| Stages | Single-stage / two-stage |
| Controls | V series mechanical preset valve |

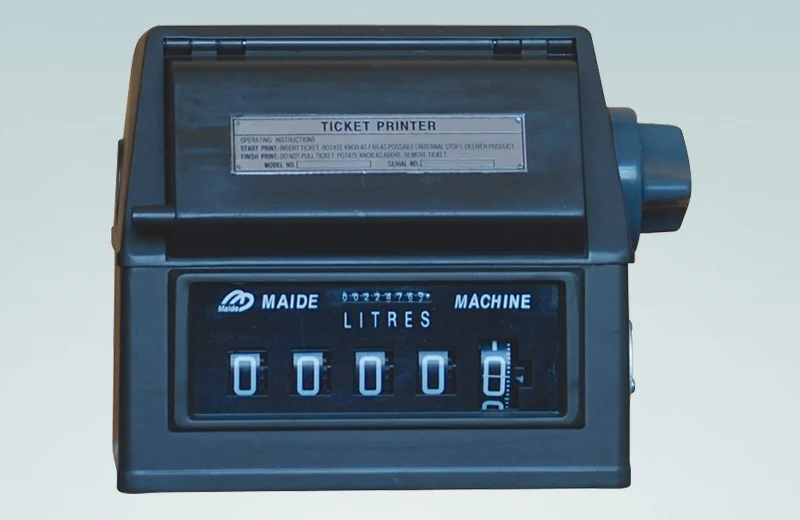

Prints the delivered quantity of each transaction on the spot — a paper ticket for every sale.
| Packing size | 34 × 28 × 38 cm |
| Net weight | 9.5 kg |
| Gross weight | 10.5 kg |
| Package | 1 pc / carton |

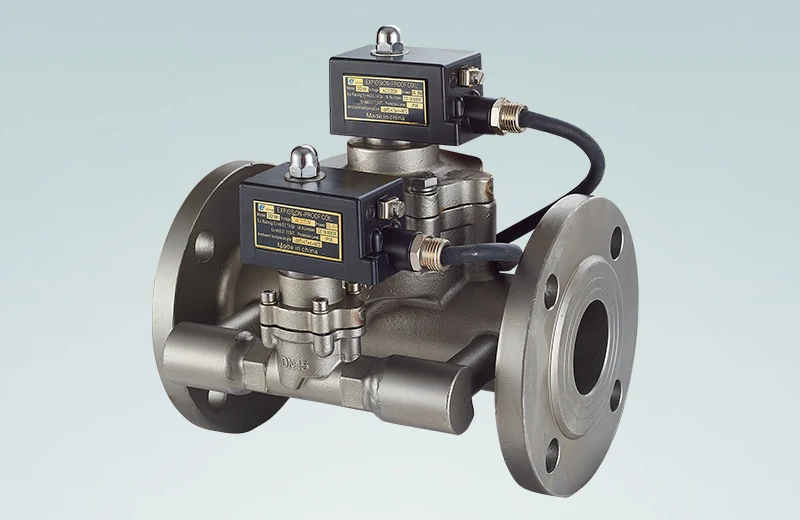

Two-stage solenoid valve in stainless steel — high flow plus a low-flow stage for a precise, hammer-free cut-off.
| SV-50 | DN50 · 380 L/min |
| SV-80 | DN80 · 750 L/min |
| Low stage | 50 L/min |
| Max pressure | 10 bar |
| Material | Stainless steel |
| Voltage | 220 VAC, 50 Hz |
Tell us your flow range, media and required accessories — we will match the right model within 24 hours.
