Type DT-STP submersible turbine pumps lift fuel from the underground tank to every dispenser on the forecourt — with the leak detection, shut-off and connection parts that complete the installation.
One submerged pump feeds every dispenser on the island. The motor end sits inside the tank, the discharge head carries the manifold — a single unit serves up to 8 nozzles.
Electric-motor-driven centrifugal pump, fully submerged in the tank and connected to the discharge head by a coaxial column pipe. For diesel, kerosene, gasoline and alcohol fuel blends.
| Models | DT-STP75 / DT-STP150 / DT-STP150Z / DT-STP200 / DT-STP300 / DT-STP500 |
| Power | 0.75 – 5 HP |
| Voltage | 220 V (1-phase) / 380 V (3-phase) |
| Max flow | 210 – 1000 L/min |
| Max pressure | 230 – 300 kPa |
| Certification | ATEX for Zone 0 / Zone 1 · EAC |
Five working parts around the pump — detect leaks, protect the intake, connect the pipework and shut the line down when something goes wrong.

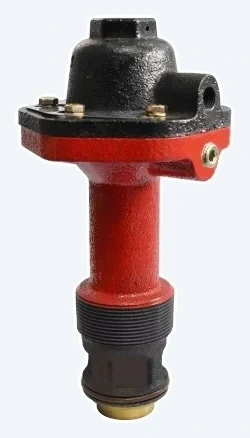

Sits on the pressure line between pump and dispenser. Restricts flow to under 11.4 L/h when a line leak is detected.
| Thread | 2″ BSP / NPT / BSPT |
| Max working pressure | 0.35 MPa |
| Flow rate | 0 – 300 L/min |
| Ambient | −25 °C to +55 °C |
| Detection | ≥ 11.4 L at 0.07 MPa, line up to 3 m above |
| Media | Diesel, gasoline and alcohol blends |

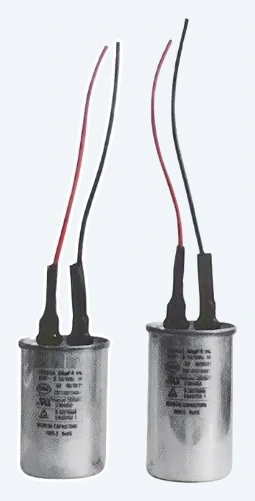

Run capacitor for the single-phase 220 V builds. Three-phase 380 V motors run without one.
| 0.75 HP / 1.5 HP | 450 V, 25 µF ±5% |
| 2 HP | 450 V, 40 µF ±5% |
| Supply | 220 V 50 Hz / 230 V 60 Hz |
| Used on | Single-phase 220 V versions only |

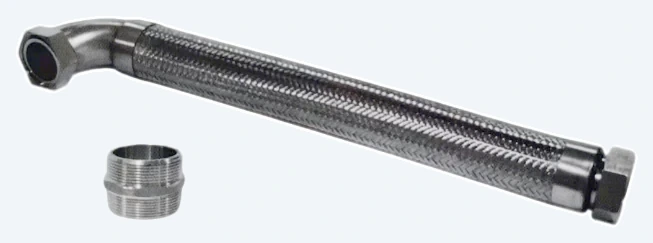

Flexible connector joining the discharge head to the tank-top pipework.
| Length | 600 mm |
| Ends | 2″ BSP / NPT |
| Unit weight | 2.05 kg |
| Packing | 10 pcs per carton |

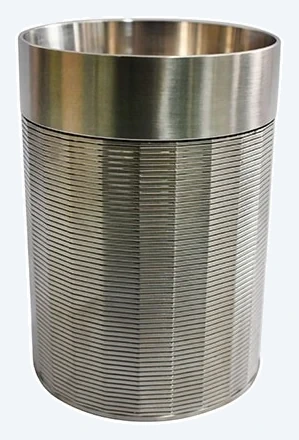

304 stainless screen on the pump intake — traps tank debris before it reaches the impeller. Trapped particles shed when the pump stops.
| Material | 304 stainless steel |
| Mounts on | Pump intake |
| Function | Intake debris protection |

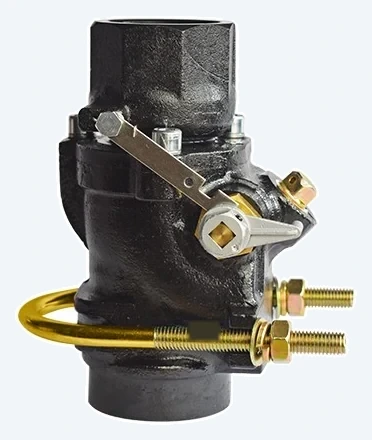

Shear valve at the dispenser inlet — closes automatically if the dispenser is knocked over; a fusible element also closes it in a fire.
| Body | Grey cast iron |
| Nominal pressure | 0.35 MPa |
| Cut-off temperature | 75 °C ± 5 °C |
| Break-off torque | 350 – 550 N·m |
| Thread | 1.5″ BSP / NPT |
| Ambient | −25 °C to +55 °C |
| Media | Gasoline, diesel, kerosene |
Tell us the tank depth, dispenser count and nozzle flow — we will size the pump and quote the matching accessories within 24 hours.
Request a quotation
