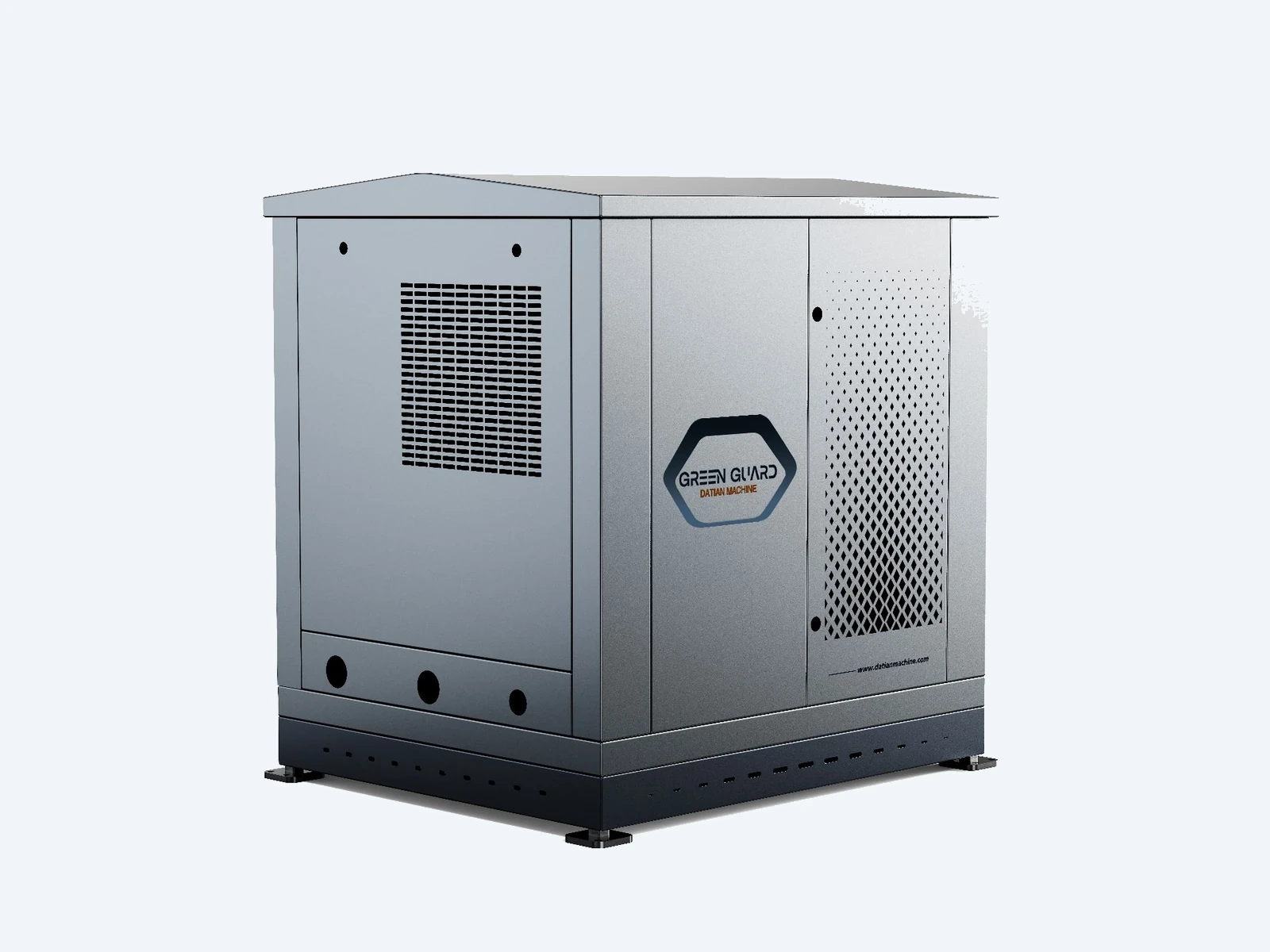

DT-100M
Membrane separation technology — no condensing equipment required.
Ideal for small gas stations — stable control of tank pressure and exhaust emission concentration.

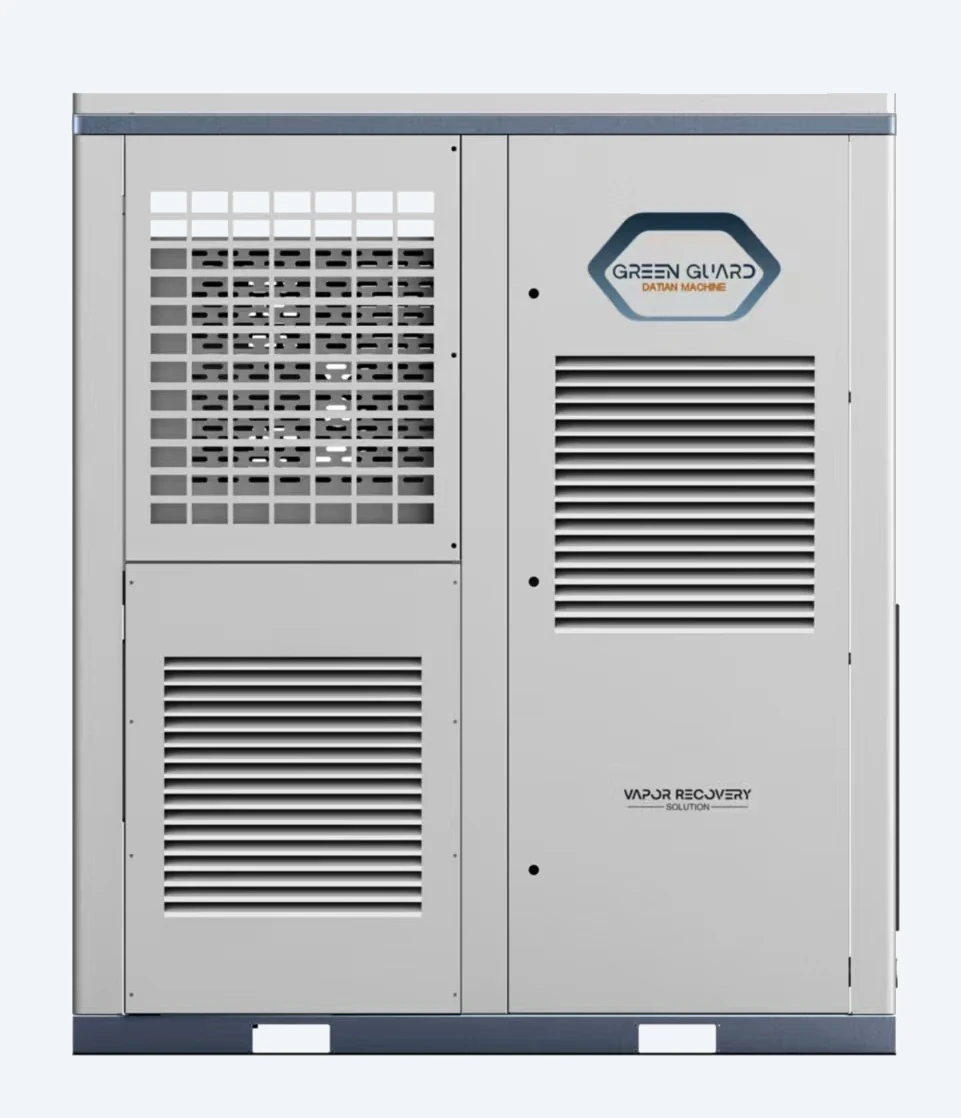

GreenGuard is Datian’s Stage III vapor-processing unit. It monitors underground storage tank pressure, condenses excess gasoline vapor through cooling and membrane separation, and returns it as liquid fuel — cutting VOC emissions by 95%+ while generating measurable savings.
The latest GreenGuard generation is built for stations that want compliance, lower emissions and a fast payback.
95%+ VOCs reduction: from 1,000–2,500 g/m³ down to <30 g/m³. Helps meet China, EU and Middle East environmental standards.
Typical fuel recovery 0.2–0.4%. Stations often see USD 3,000–20,000/year profit with low energy consumption.
24/7 autonomous operation, 4HP condenser module, optimized oil-gas separation and IoT remote control.
Role-based access, real-time safety alerts, tank-pressure trend tracking, VOCs emission analysis and 2+ years data storage.
Sensors measure underground storage tank pressure in real time. When pressure exceeds the set threshold (recommended 500 Pa / 5 mbar), the unit activates automatically.
The vapor/air mixture passes through an air-cooled heat exchanger and refrigeration unit, then membrane modules. High-concentration vapor returns to the tank; cleaned air is discharged safely.
Recovered liquid drains back into the tank. The cloud dashboard logs every cycle, fuel savings and alarm event — accessible anywhere.
Choose the version based on your existing infrastructure.
Membrane separation technology — no condensing equipment required.
Ideal for small gas stations — stable control of tank pressure and exhaust emission concentration.
Pressure-auto or pressure & scheduled operation. Monitors tank pressure and starts according to regulation. Compact condensation unit with cloud interface. Ideal for stations with existing Stage I and Stage II systems.
Includes Stage I assist: during tanker unloading, vapor passes through the condensation unit to recover more fuel.
| Model | Stage I assist | Operation modes | Best for |
|---|---|---|---|
| DT-100M | No | Pressure-auto, Pressure & Scheduled | Moderate-temperature regions; pure membrane separation without condensing equipment |
| DT-VR26M1 | No | Pressure-auto, Pressure & Scheduled | Stations with existing Stage I & II systems that need tank pressure control, regulatory compliance and a cloud-connected condensation unit |

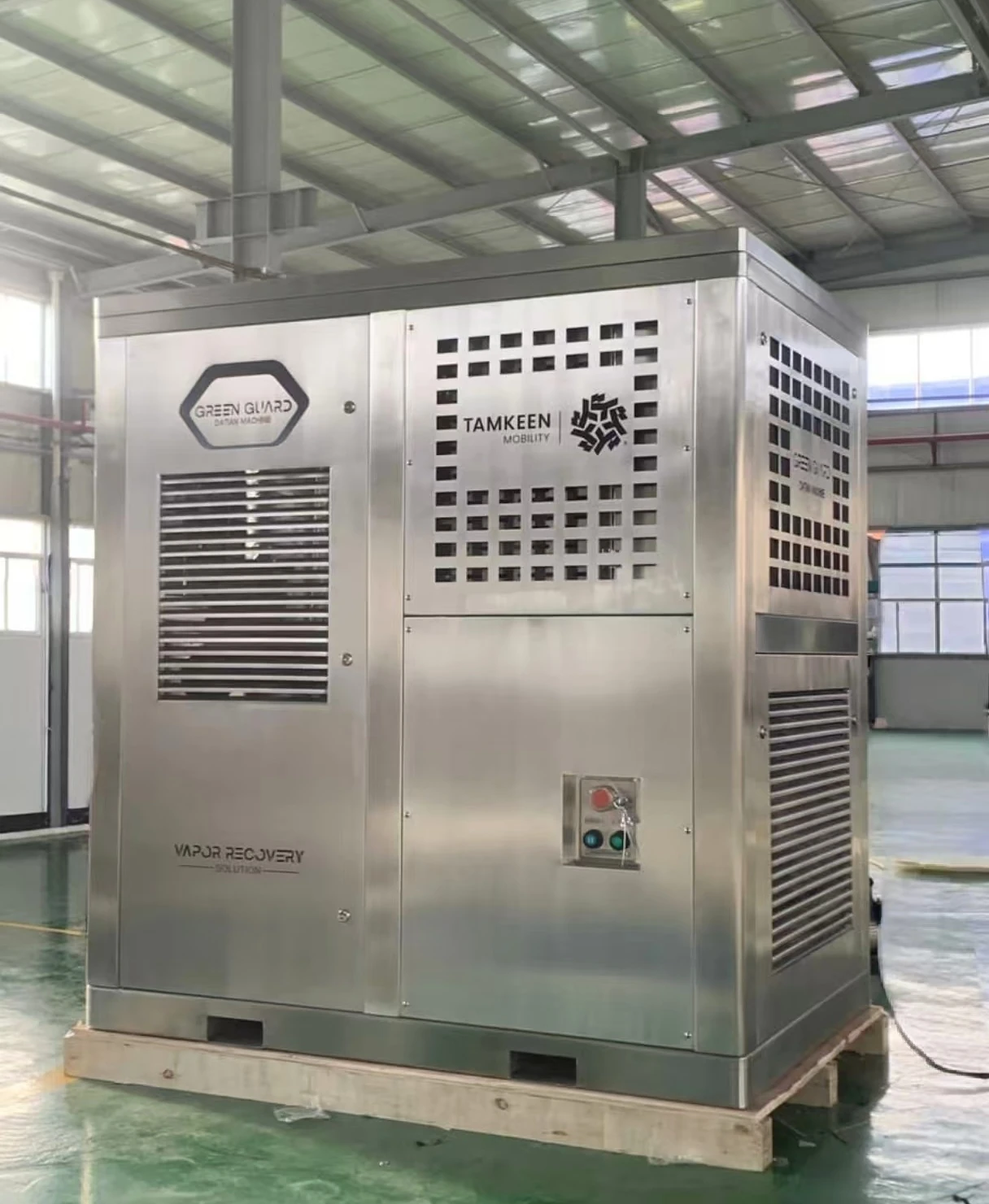

| DT-VR26M2 | Yes | Pressure-auto, Pressure & Scheduled + Stage I | Strongly recommended — stations with or without Stage I seeking maximum recovery |
Extracted from EU-Type Examination Certificate IEP 26 ATEX 1835X and the DT-VR26M1/M2 operation manual.
| Parameter | DT-100M | DT-VR26M1 | DT-VR26M2 | DT-VR26M2 Unloading Recovery |
|---|---|---|---|---|
| Operation mode | Pressure Auto | Pressure Auto | Pressure Auto | Unloading Recovery |
| Processing capacity | 4–8 m³/h | 6–12 m³/h | 6–12 m³/h | 18–22 m³/h |
| Vacuum pump pressure | -100 kPa to -80 kPa | -100 kPa to -80 kPa | -100 kPa to -80 kPa | — |
| Compressor pressure | ≤0.4 MPa | ≤0.4 MPa | ≤0.4 MPa | <0.2 MPa |
| Power | 3.5 kW | 6.5 kW | 7 kW | 7 kW |
| Voltage / Frequency | 220/380/415 VAC · 50/60 Hz | 220/380/415 VAC · 50/60 Hz | 220/380/415 VAC · 50/60 Hz | 220/380/415 VAC · 50/60 Hz |
| Ambient temperature | -20 °C to +50 °C | -20 °C to +50 °C | -20 °C to +50 °C | -20 °C to +50 °C |
IEP 26 ATEX 1835X — EU-Type Examination Certificate for use in potentially explosive atmospheres.
The latest GreenGuard generation introduces four major improvements.
Modern enclosure aesthetics with improved access doors and serviceability.
Redesigned piping structure improves oil-gas separation efficiency.
Higher condensation capacity converts more oil vapor into liquid fuel.
Upgraded backend platform with intuitive interface and real-time monitoring.
Estimate recovered fuel and annual savings at your station.
Results are indicative only. Actual performance depends on temperature, pressure and fuel composition.

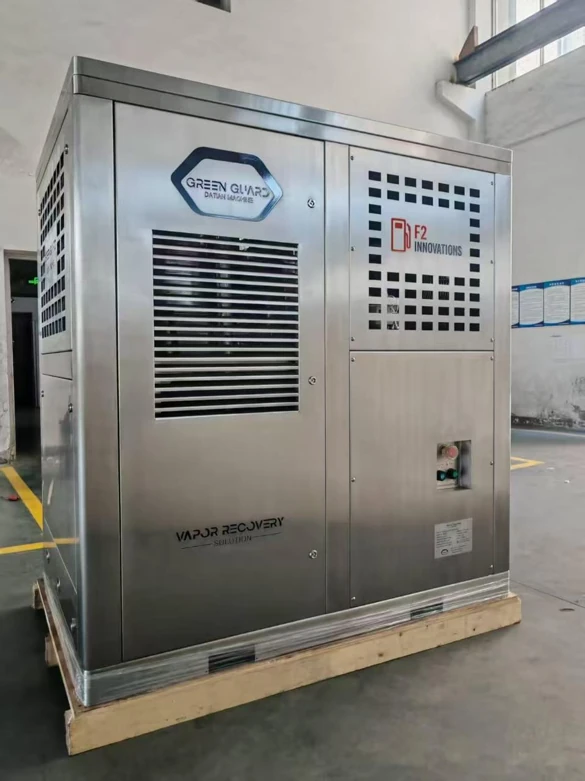

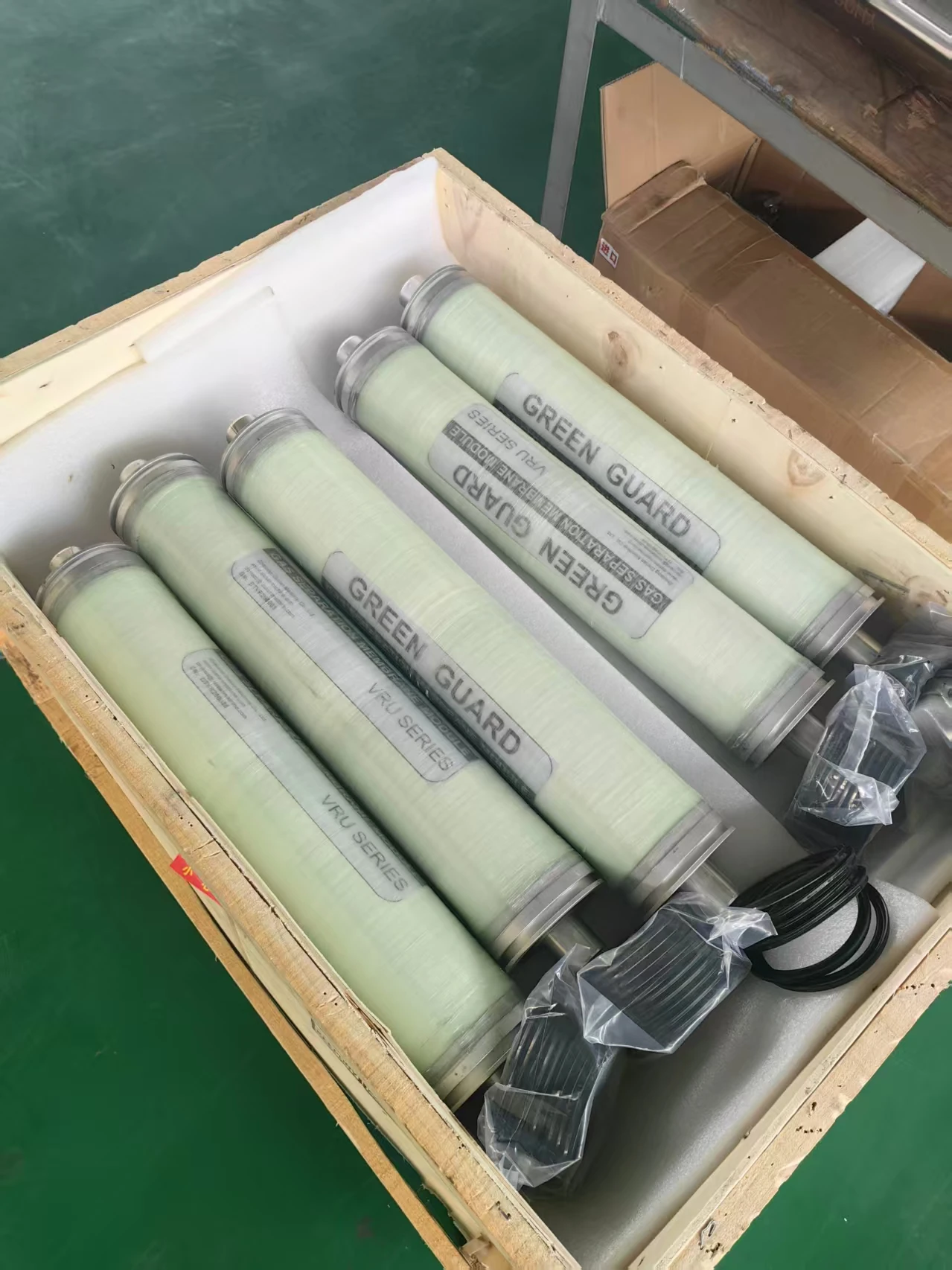

From our first-generation VRU to the latest GreenGuard platform — factory photos, internal assemblies and membrane modules.
