Gear Combined Pump — Combined Pump for fuel dispensing and station equipment.

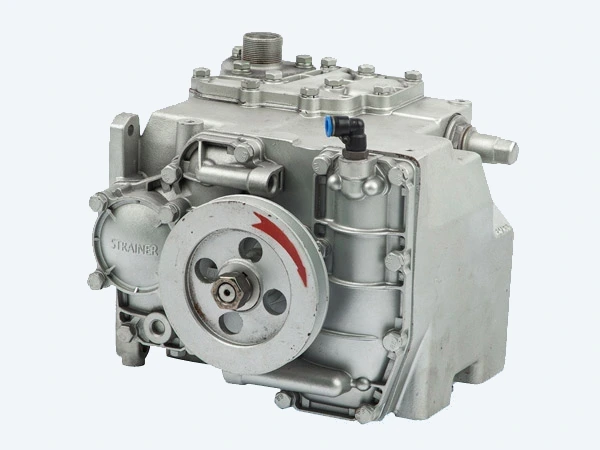

CP5 is a Tatsuno-type gear combination pump for fuel dispensers and station equipment.
A 0.75 kW motor drives it across a 680–980 rpm speed range for a rated flow of 45–90 L/min. Dry vacuum is 0.054 MPa or better, noise level 72 dB or less, and output pressure 0.18–0.3 MPa.
| Parameter | Value |
|---|---|
| Model | CP5 |
| Collocate motor | 0.75Kw |
| Speed | 680–980rpm |
| Flow rated | 45–90L/min |
| Dry degree of vacuum | ≥0.054MPa |
| Noise level | ≤72dB |
| Output pressure | 0.18MPa – 0.3MPa |
CP5 is a Tatsuno-type gear combination pump. Its 0.75 kW motor runs across a 680–980 rpm band and the rated flow follows the speed, from 45 L/min up to 90 L/min, so one pump body covers a range of dispenser throughputs without changing hardware.
Dry vacuum is 0.054 MPa or better, noise stays at or below 72 dB and output pressure is 0.18–0.3 MPa. As a combined pump the unit also handles air separation, so the dispenser does not need a separate separator housing.
Because the speed is set by the drive rather than fixed at the factory, tell us the pulley or coupling arrangement on the dispenser you are building and we will confirm the flow you will actually see at the nozzle.
