Vane Combined Pump — Combined Pump for fuel dispensing and station equipment.

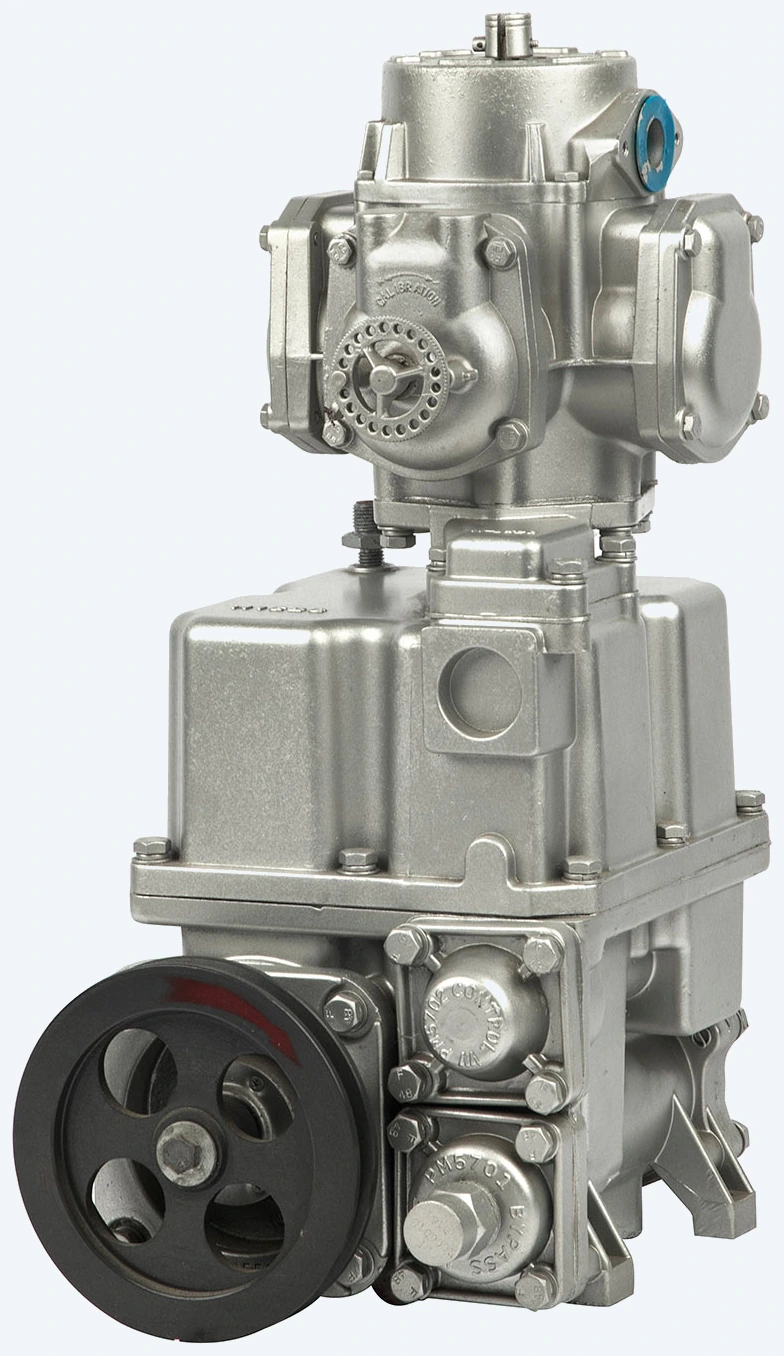

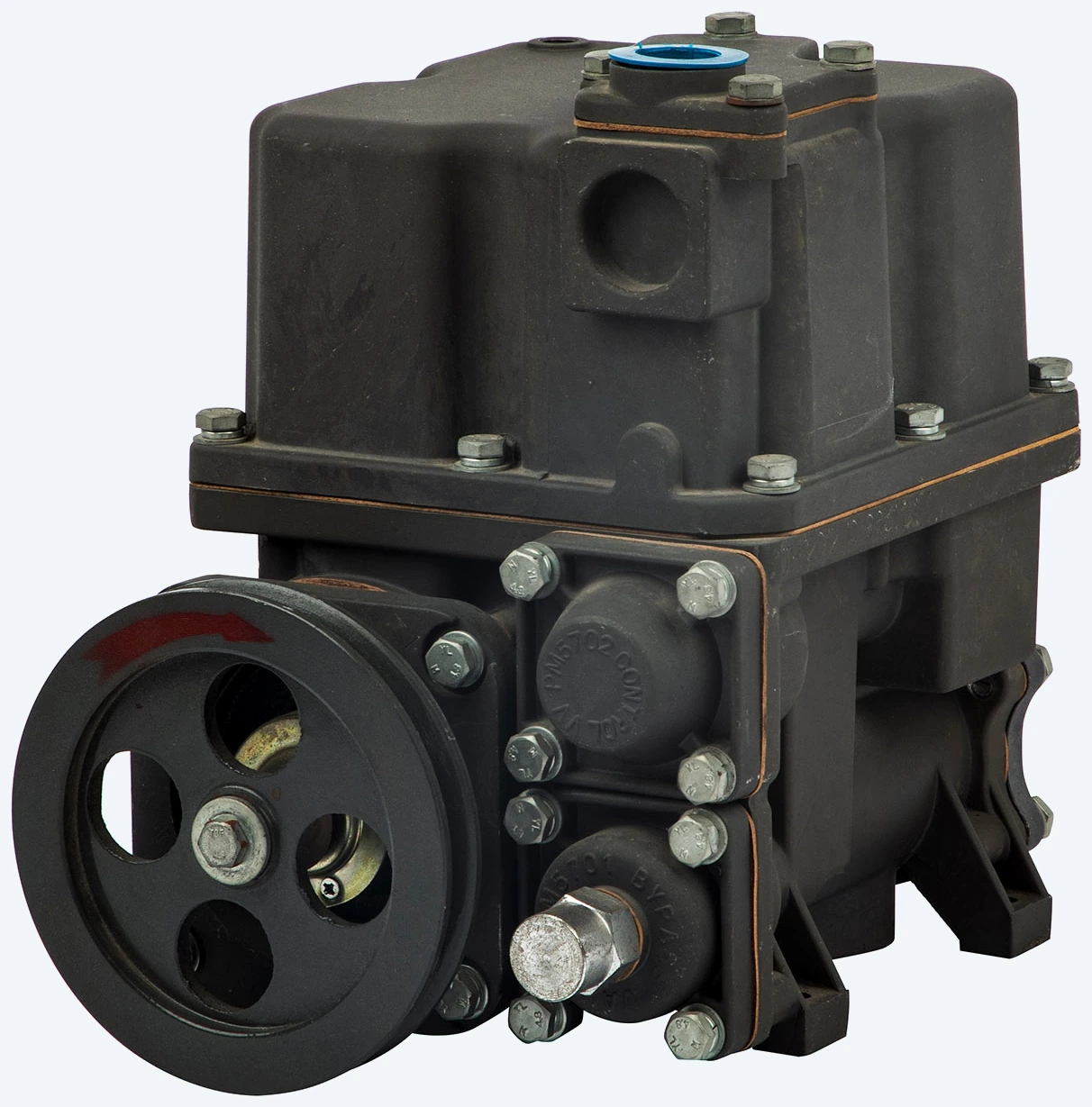

JBL80 is the vane-type combination pump developed from the JBL50 series. It is normally fitted as part of a complete dispenser assembly, and can also handle other mixed gas-and-liquid media.
The pump combines suction and air separation in one unit — gasoline, kerosene and diesel oil are separated from entrained air before delivery. Reasonable design, compact structure, low noise and long service life, in an aluminium alloy shell with a clean cast finish.
| Parameter | Value |
|---|---|
| Packing size | 345mm × 270mm × 390mm; 17KGS/CTN, 1PC/CTN |
| Collocate motor | 0.75Kw |
| Speed | 660rpm |
| Flow rated | 80L/min |
| Dry degree of vacuum | ≥0.054MPa |
| Noise level | ≤72dB |
| Output pressure | 0.18MPa – 0.35MPa |
