DTLPG

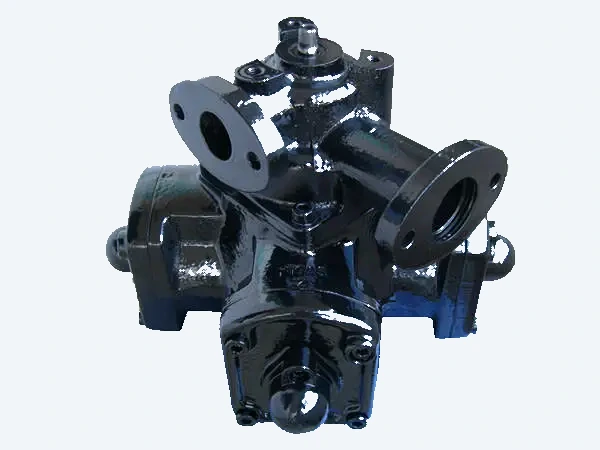

DTLPGJ1 Flow Meter is used for LPG dispensing machine. It adopts structure of stainless steel bush and four-piston. The material of meter body is cast iron with advantages of high intensity, good wearability, high precision, and long working life.

Long service life, high precision, rigid structure
Suitable as a direct dispenser component or replacement meter
Compatible with Datian DT-G, DT-L, DT-T and Classic dispensers

Request a Quote All Flowmeters

Specifications

Technical Specifications

Parameter	Value
Max. Working Pressure	1.8 MPa (18 Bar)
Flow Rate	5 – 60 L/min
Discharge Rate per Revolution	5 L/r
Accuracy	±0.5%
Repeatable Tolerance	≤0.25%
Structure	Stainless steel bush, four-piston; cast iron body
Package	1 pc / carton
Net Weight	30 kg
Gross Weight	32 kg

Final values are confirmed per order — contact our engineering team for the drawing and certification set.
