LPG Pump — LPG Dispenser & Parts for fuel dispensing and station equipment.

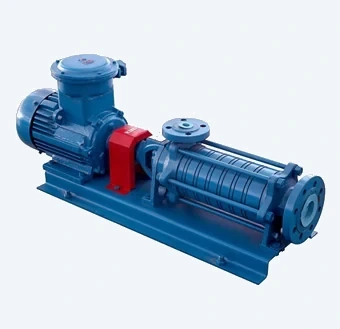

A centrifugal side-channel pump in a horizontal layout, supplied with 4, 6 or 8 impeller stages. The shaft runs on a mechanical seal that needs no cooling water. It is built for LPG at high differential pressure and low NPSH, and is used for road tanker unloading, bulk transfer and cylinder filling.
| Parameter | DT-LPGP-32 | DT-LPGP-65 | DT-LPGP-85 |
|---|---|---|---|
| Stages | 4 | 6 | 8 |
| Flow rate | 5.5 m³/h | ||
| Max. differential pressure | 1.0 MPa | 1.5 MPa | 2.2 MPa |
| Speed | 1 450 rpm | ||
| Motor power | 4 kW, 380 V / 220 V 50 Hz | 4 kW, 380 V 50 Hz | 5.5 kW, 380 V 50 Hz |
| Direction of rotation | Anti-clockwise, facing the pump drive shaft end | ||
| Connecting flanges | Inlet DN65 / outlet DN32 | ||
| Bearings | Sliding bearing at pump end, ball bearing at drive end | ||
| Lubrication | Pump-end bearing by pumped medium; drive-end bearing self-lubricating | ||
| Ambient temperature | −30 °C to +60 °C | ||
