DT-PNH-A

Plastic Nozzle Holder — Nozzles, Holders & Accessories for fuel dispensing and station equipment.

DT-PNH-A plastic nozzle holder
Plastic Nozzle Holder

DT-PNH-A

The plastic nozzle holder is a dedicated rest bracket for the fuel nozzle. Lightweight and durable, it is made from engineering plastic that is oil-resistant, corrosion-resistant and electrically insulated for safety. The internal buffer structure effectively reduces noise during nozzle placement and wear on the nozzle body, improving the operating experience and protecting the equipment.

Request a Quote
Specifications

Technical Specifications

ParameterValue
BodyPA6
Switch plateStainless steel
BaseAluminium alloy
CertificationISO9001
Packing20 pcs/carton
Net weight10.92 kg
Gross weight12.5 kg
Carton dimensions58.5 × 44.5 × 46 cm
Variants

Available Variants

DT-PNH-A is available with different switch options. All variants share the same PA6 body, stainless switch plate and aluminium base.

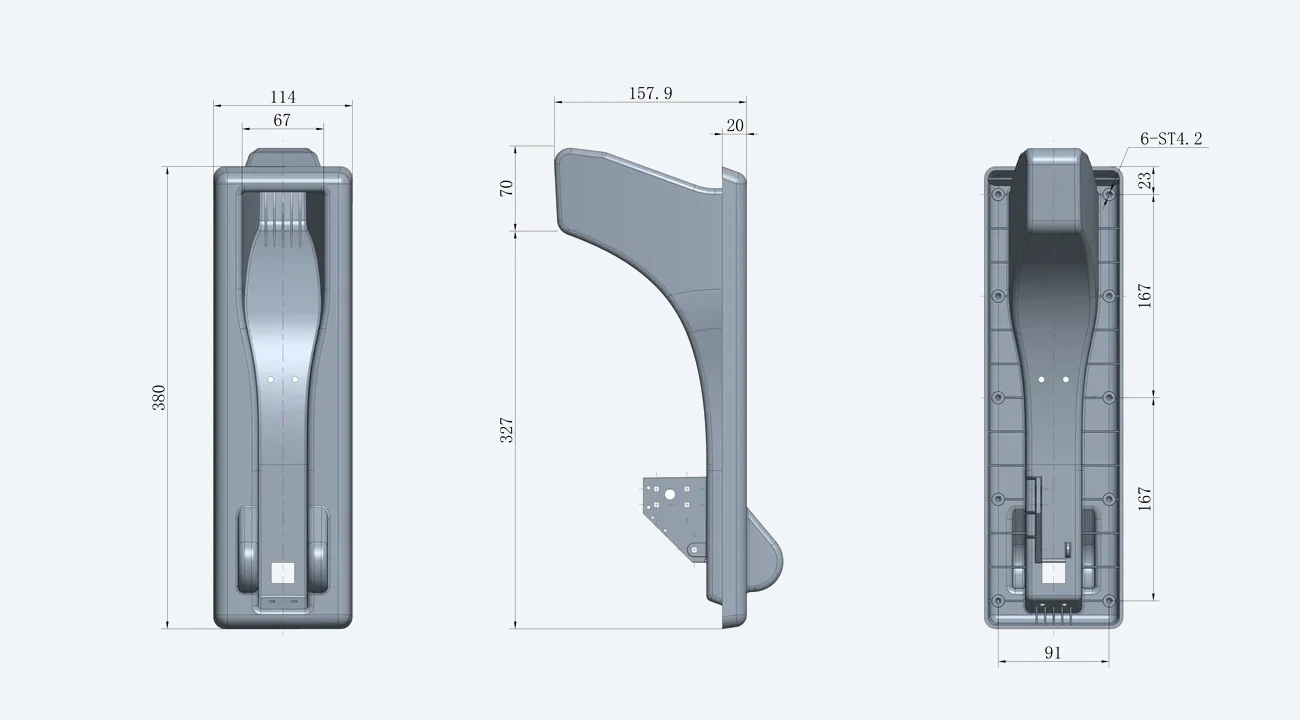

DT-PNH-A installation dimensions drawing — front, side and rear views with measurements

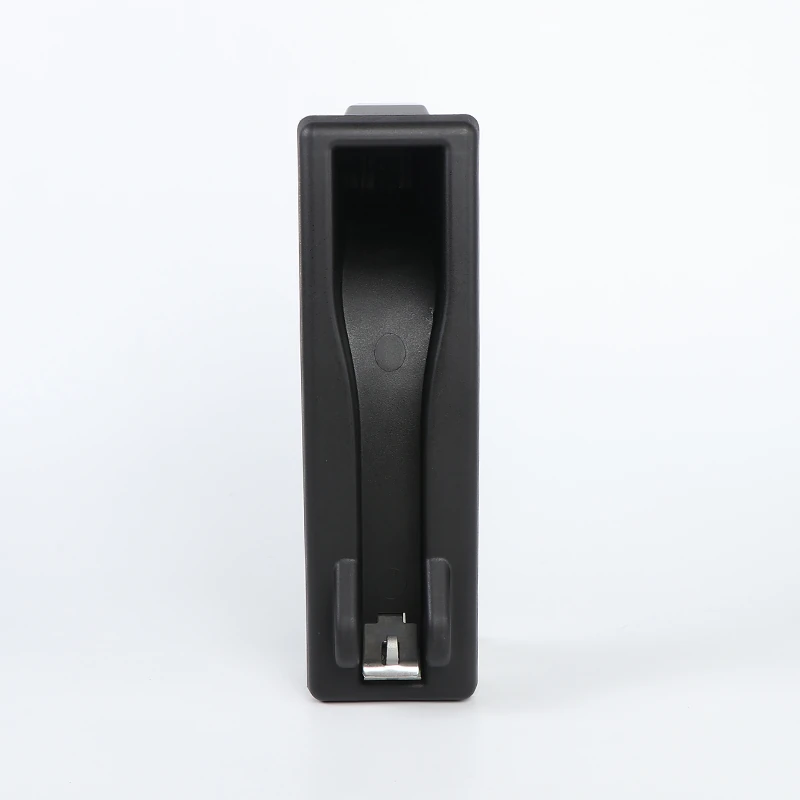

DT-PNH-A Standard — front view

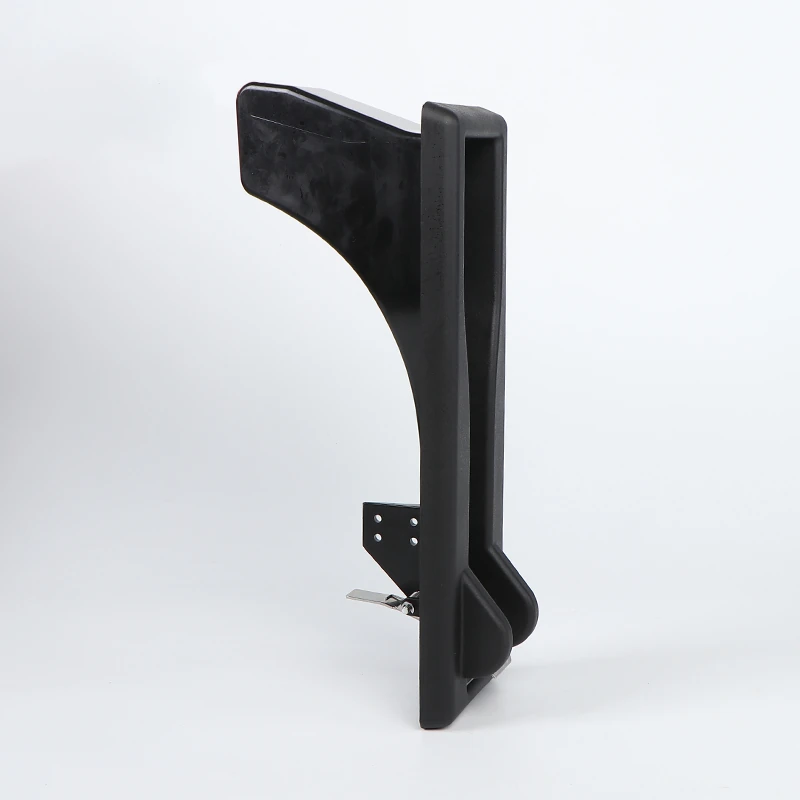

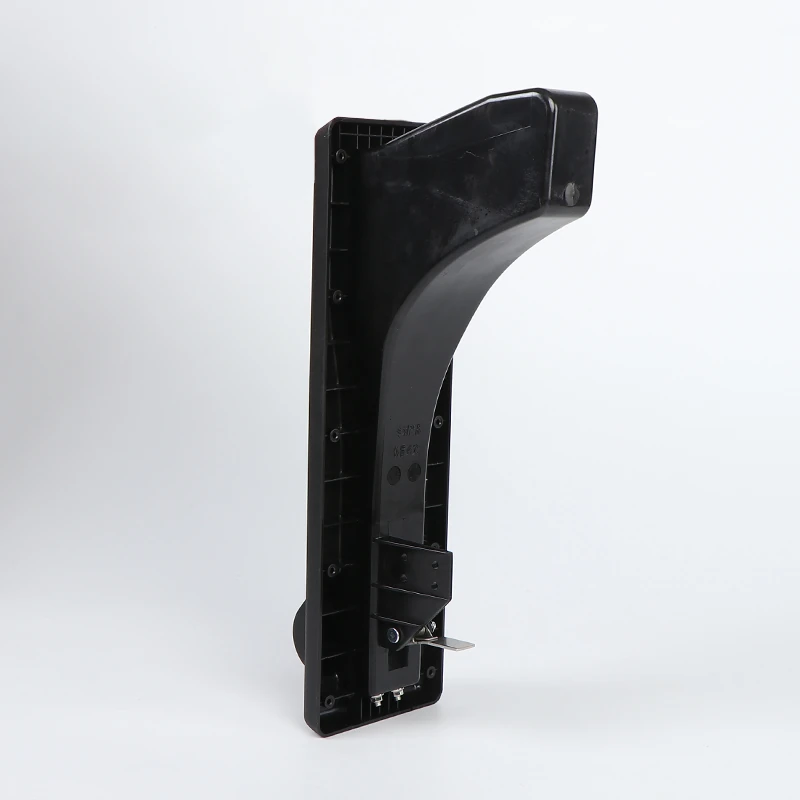

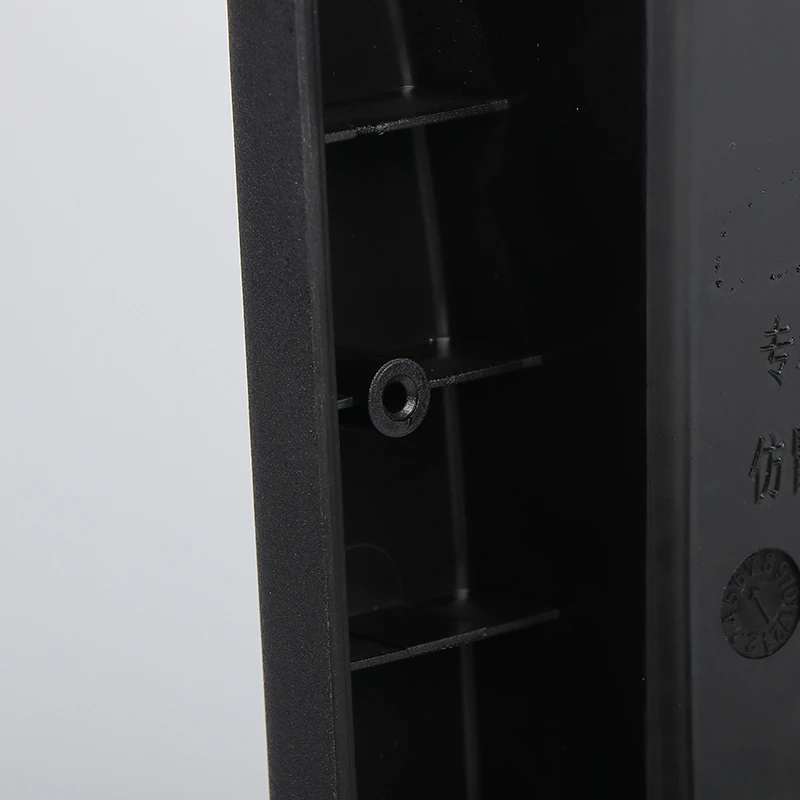

DT-PNH-A Standard — front view DT-PNH-A Standard — side view DT-PNH-A Standard — switch mounting detail DT-PNH-A Standard — internal detail

Standard

Base version of the DT-PNH-A family without a switch — same body, switch plate and aluminium base shared across the whole family.

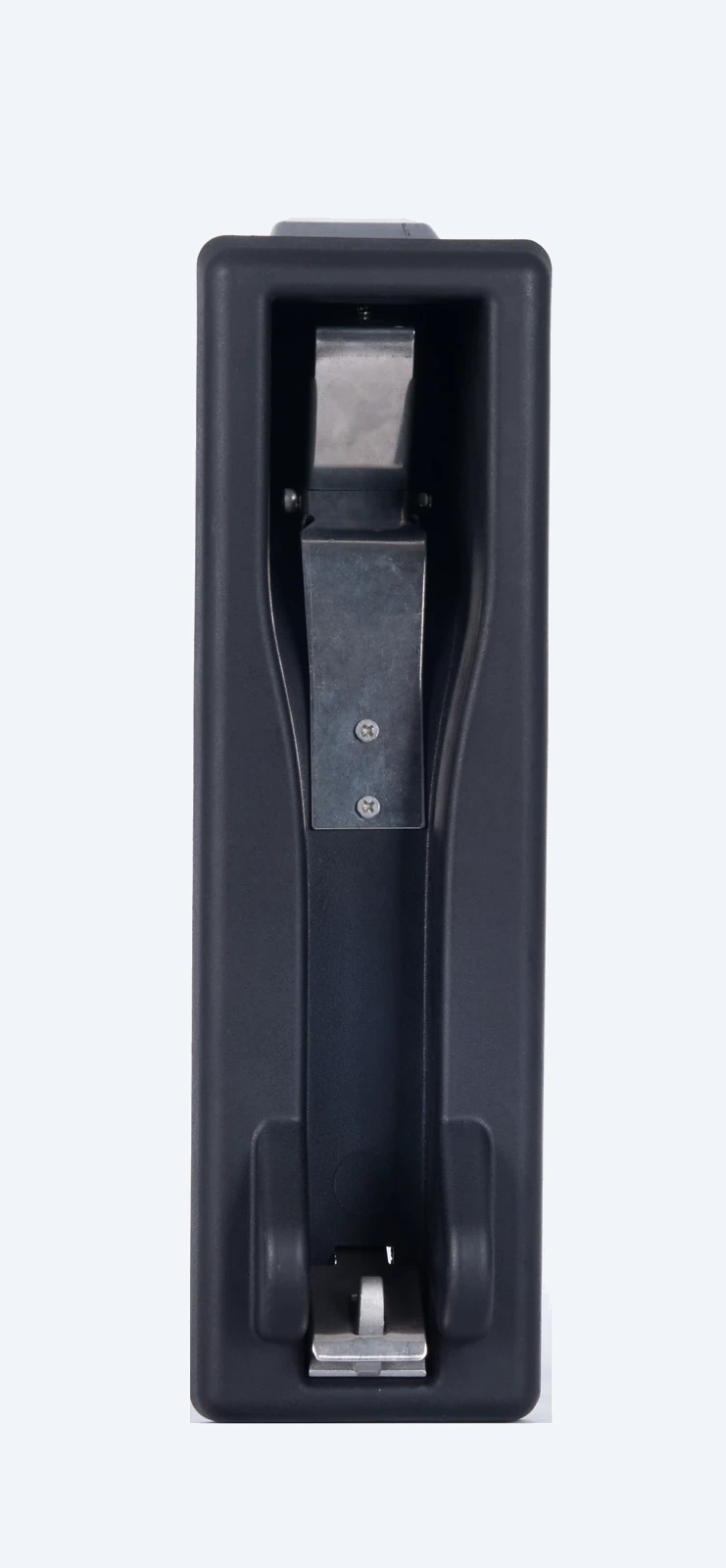

DT-PNH-A with Top Switch — front view

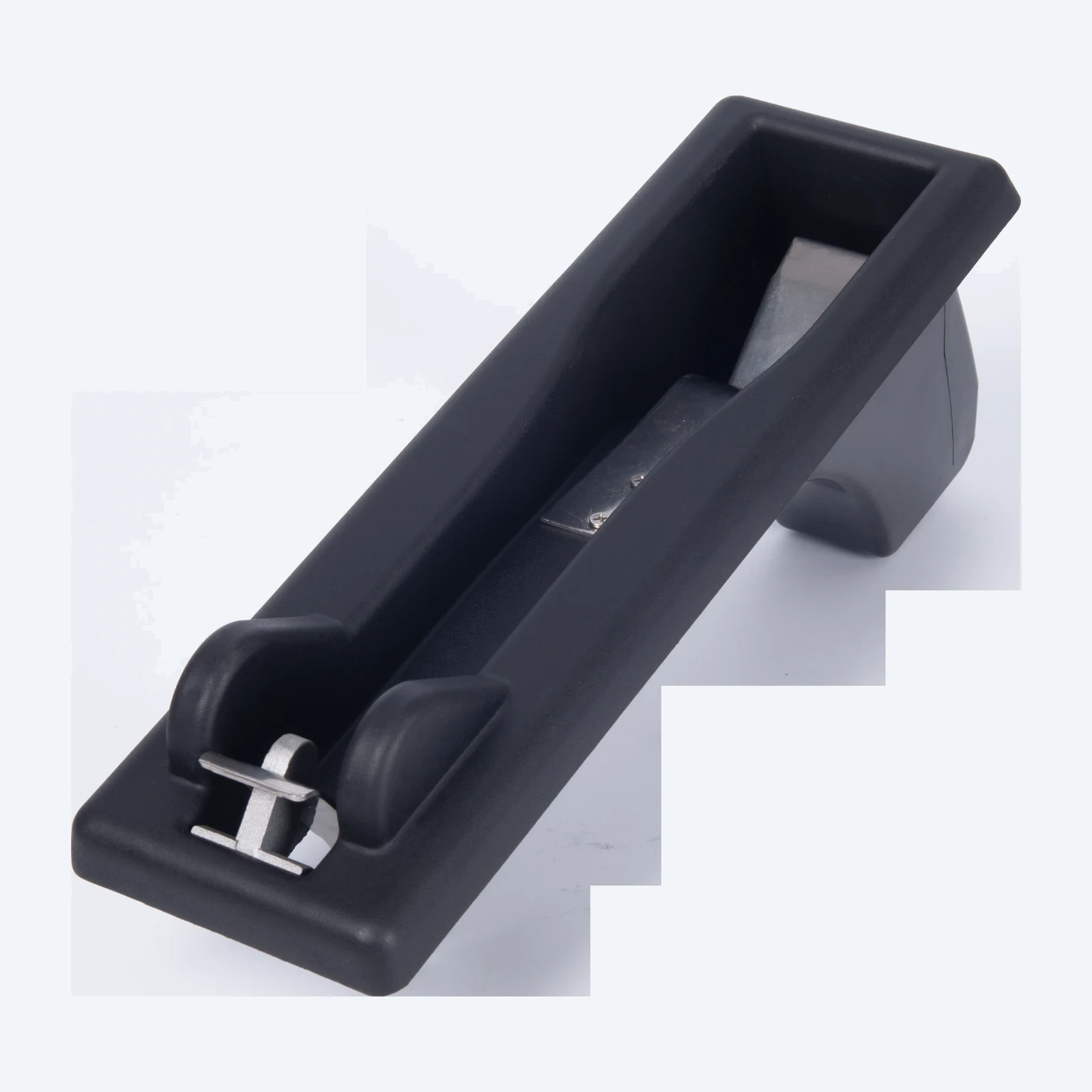

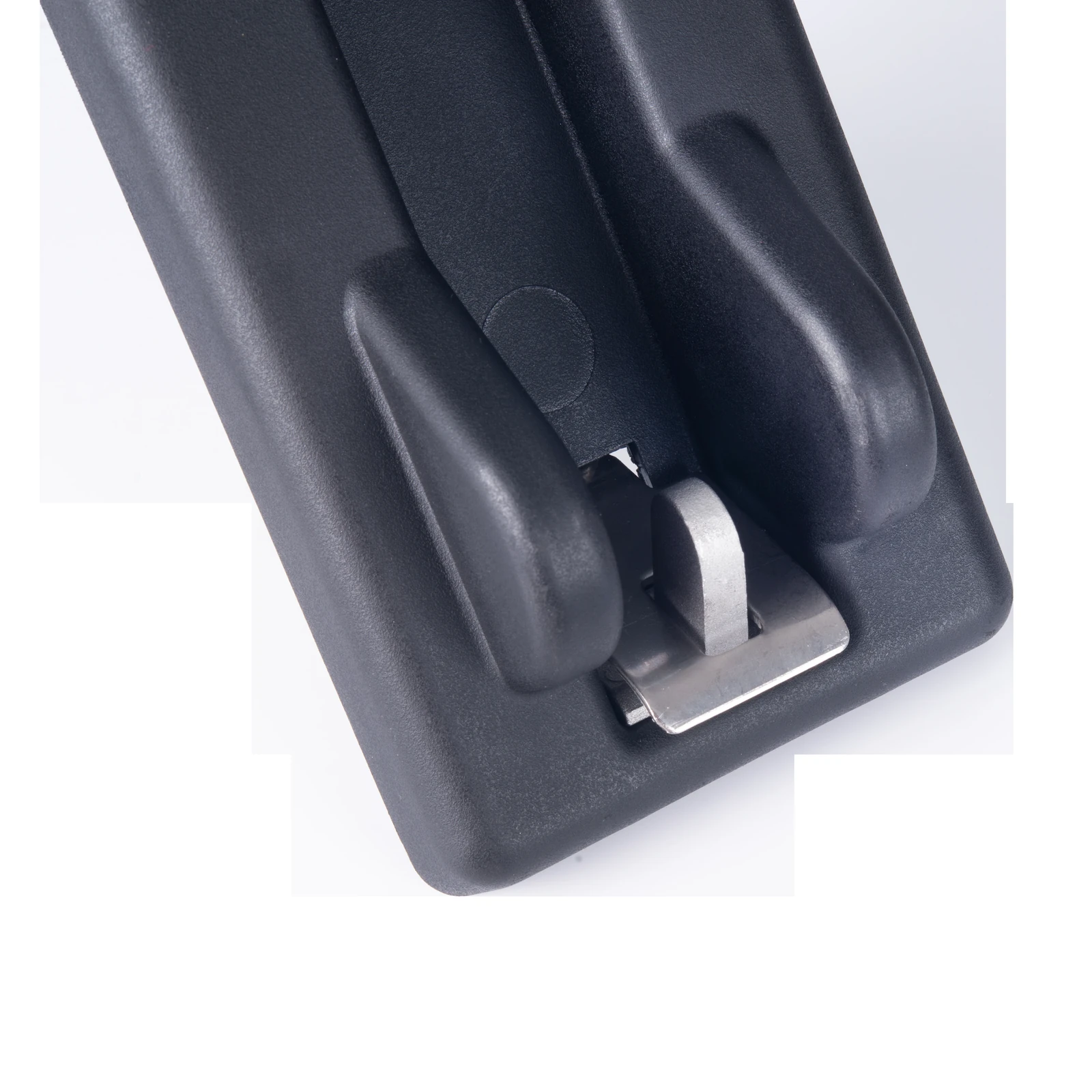

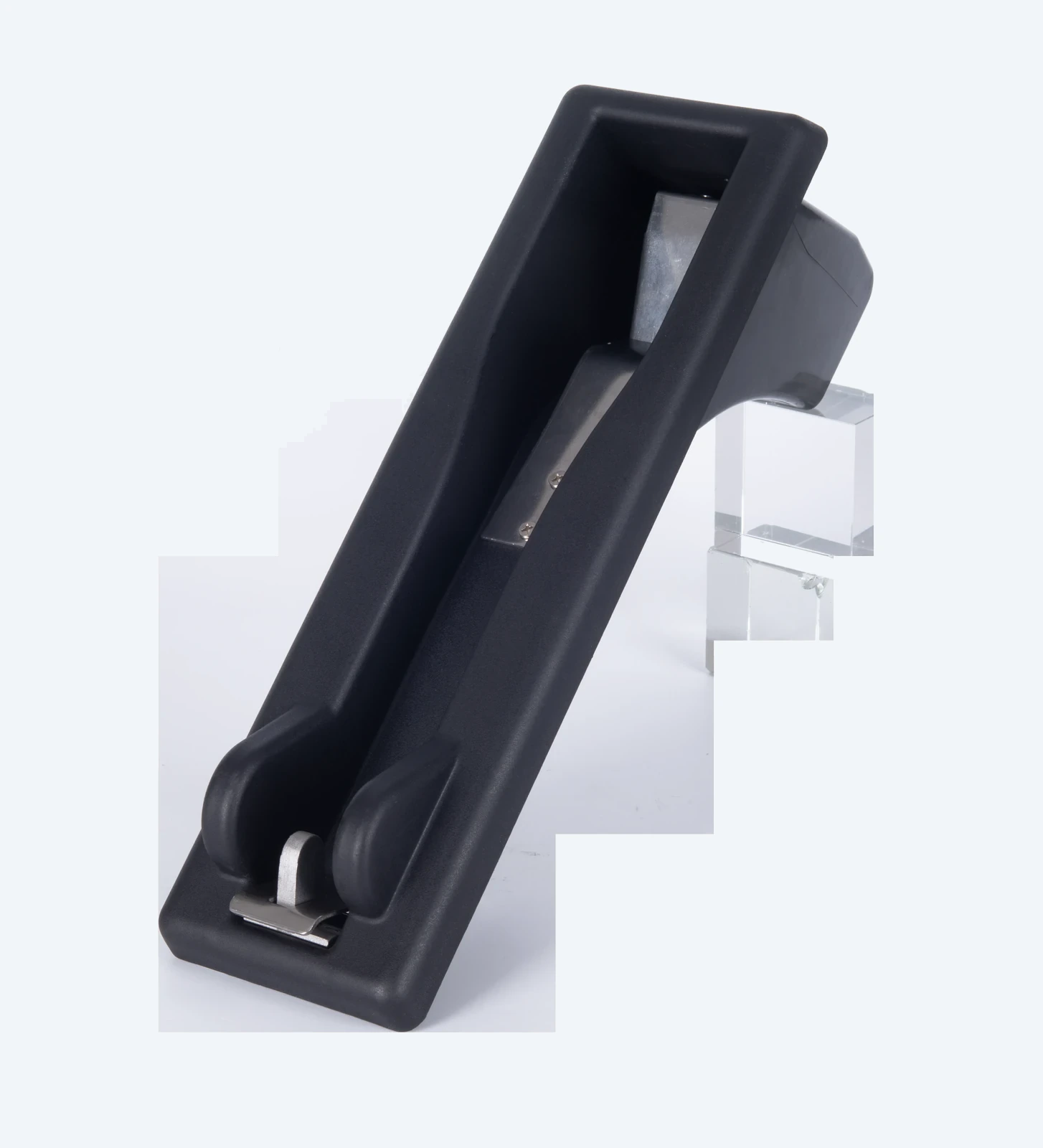

DT-PNH-A with Top Switch — front view DT-PNH-A with Top Switch — three-quarter view DT-PNH-A with Top Switch — rear view DT-PNH-A with Top Switch — base detail

with Top Switch

Switch mounted on the top of the holder body.

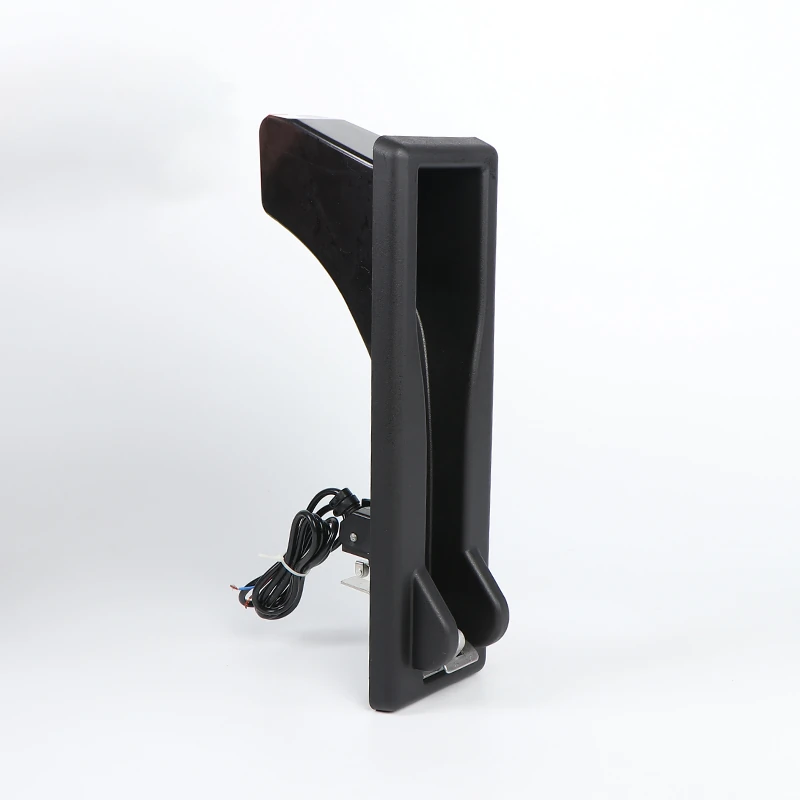

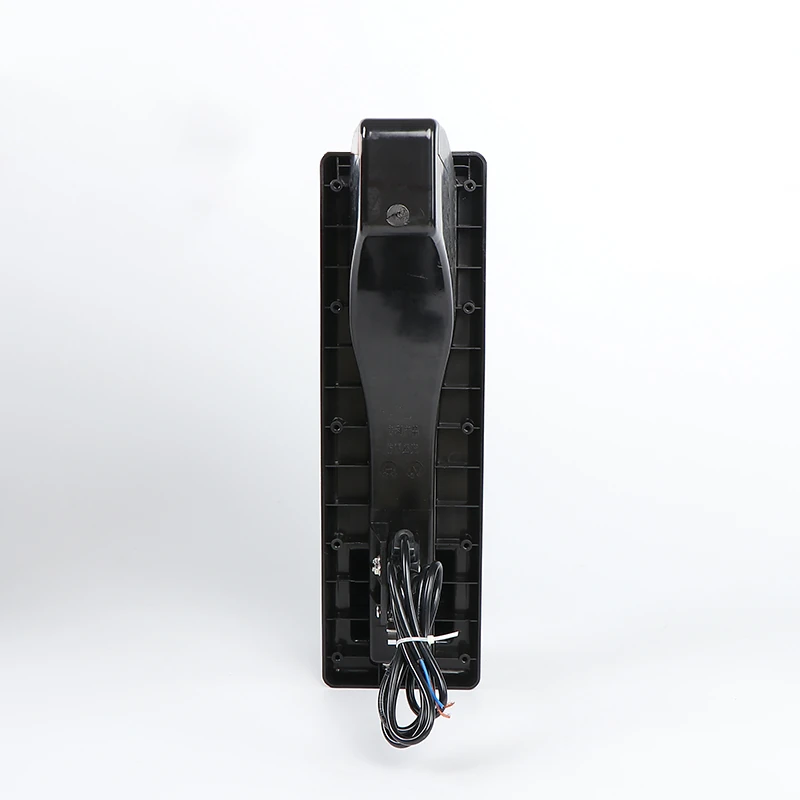

DT-PNH-A with KZ Micro Switch — front view

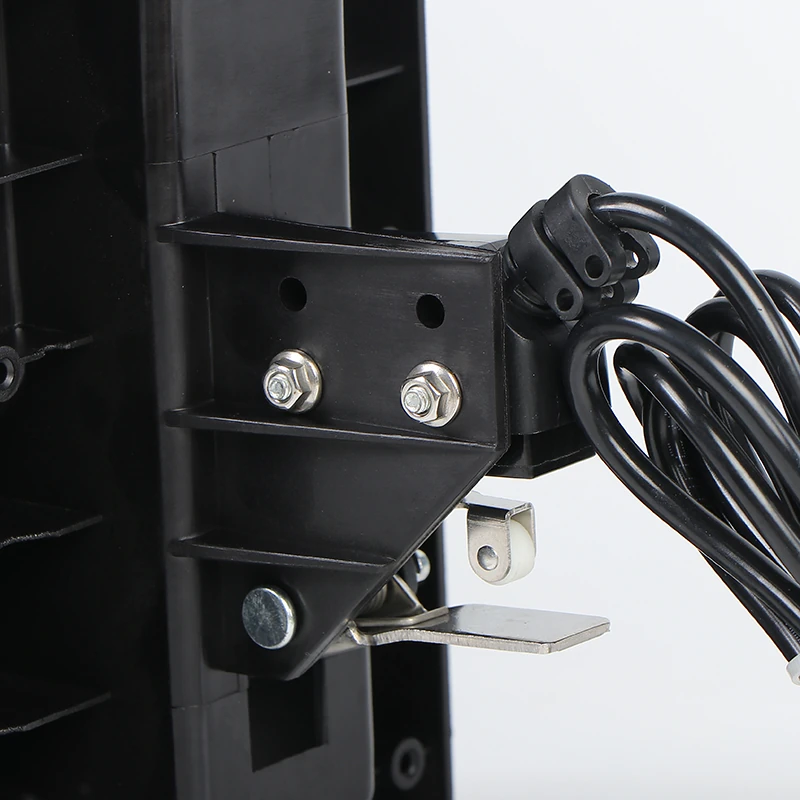

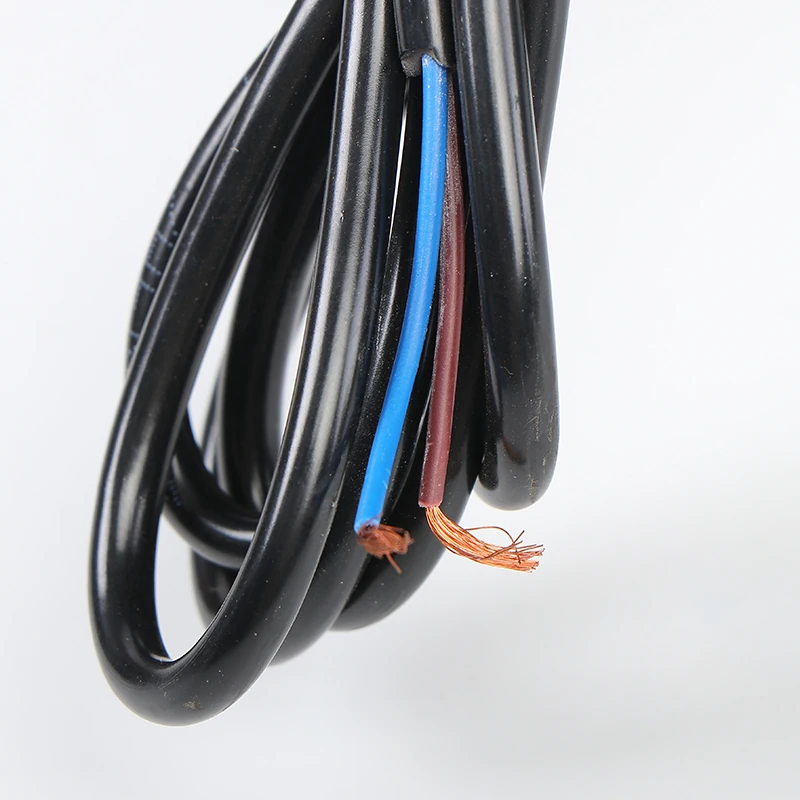

DT-PNH-A with KZ Micro Switch — front view DT-PNH-A with KZ Micro Switch — side view DT-PNH-A with KZ Micro Switch — switch mounting detail DT-PNH-A with KZ Micro Switch — cable detail

with KZ Micro Switch

DT-PNH-A body fitted with a KZ micro switch.

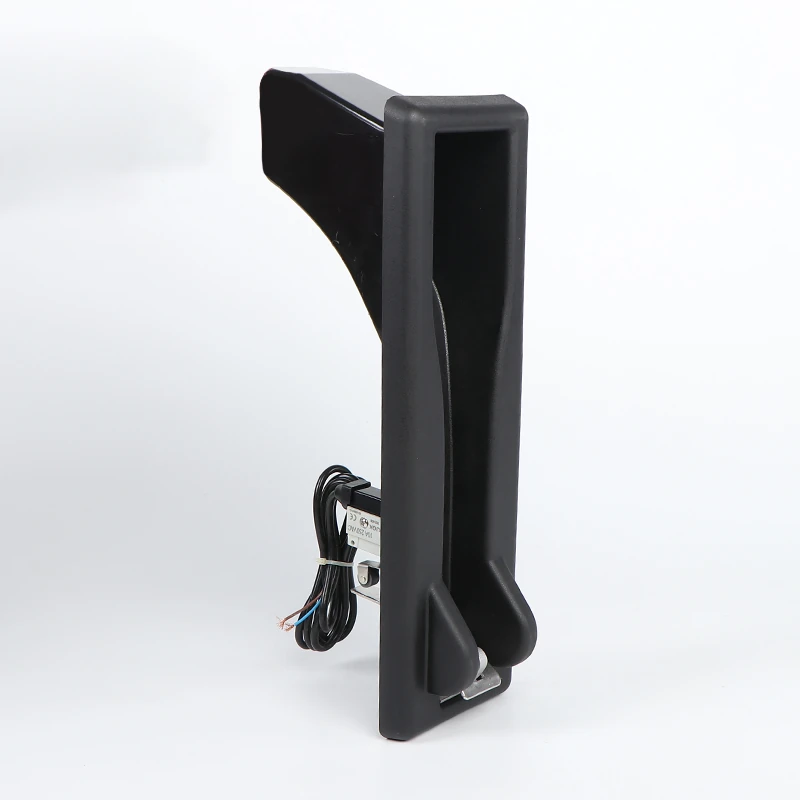

DT-PNH-A with Kaixinuo Switch, 1.5 m Cable — front view

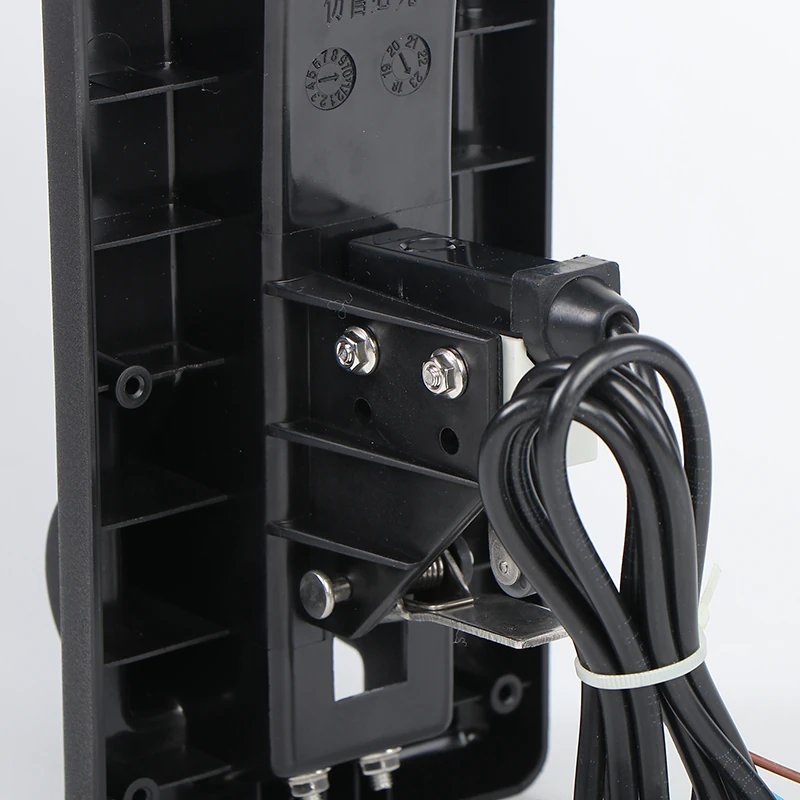

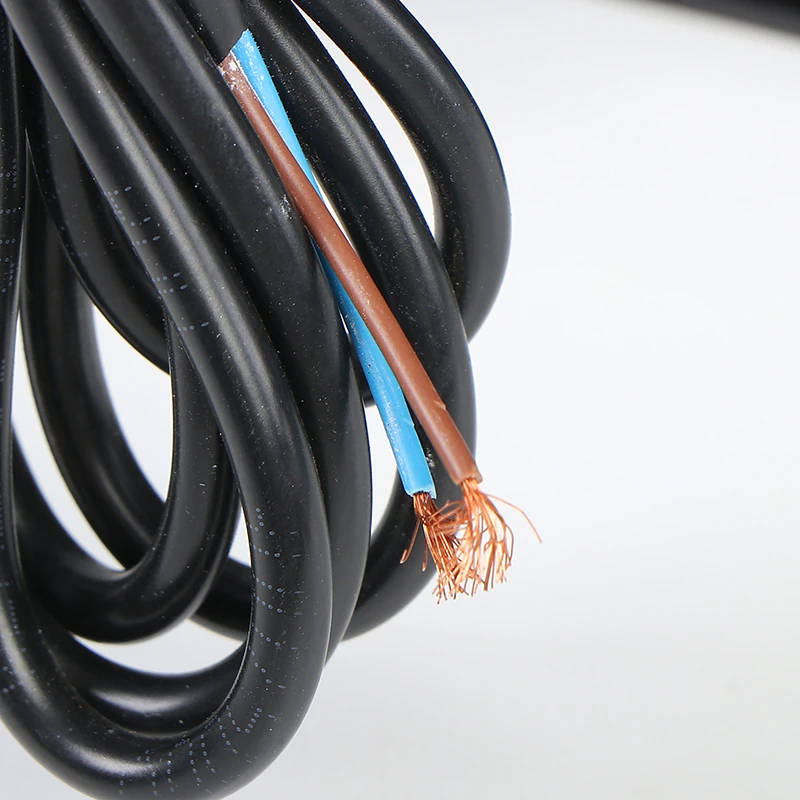

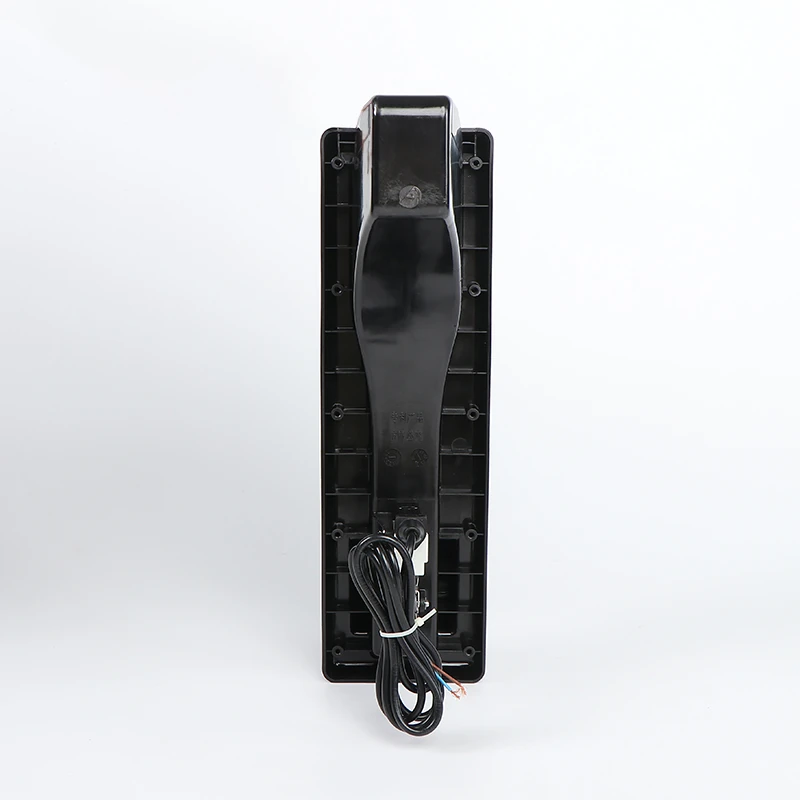

DT-PNH-A with Kaixinuo Switch, 1.5 m Cable — front view DT-PNH-A with Kaixinuo Switch, 1.5 m Cable — side view DT-PNH-A with Kaixinuo Switch, 1.5 m Cable — switch mounting detail DT-PNH-A with Kaixinuo Switch, 1.5 m Cable — cable detail

with Kaixinuo Switch, 1.5 m Cable

DT-PNH-A body fitted with a Kaixinuo switch with 1.5 m cable.

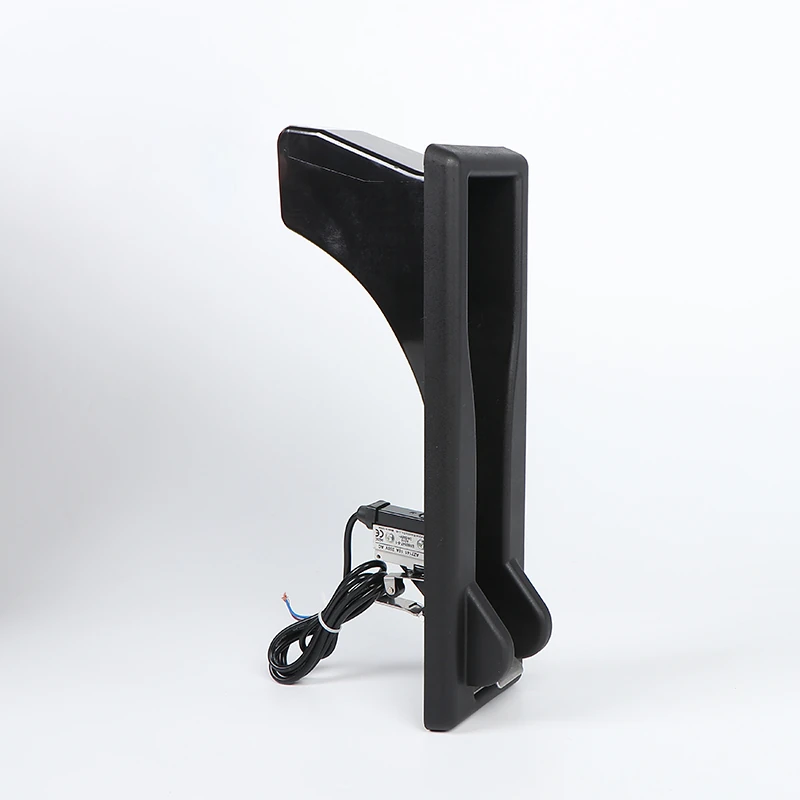

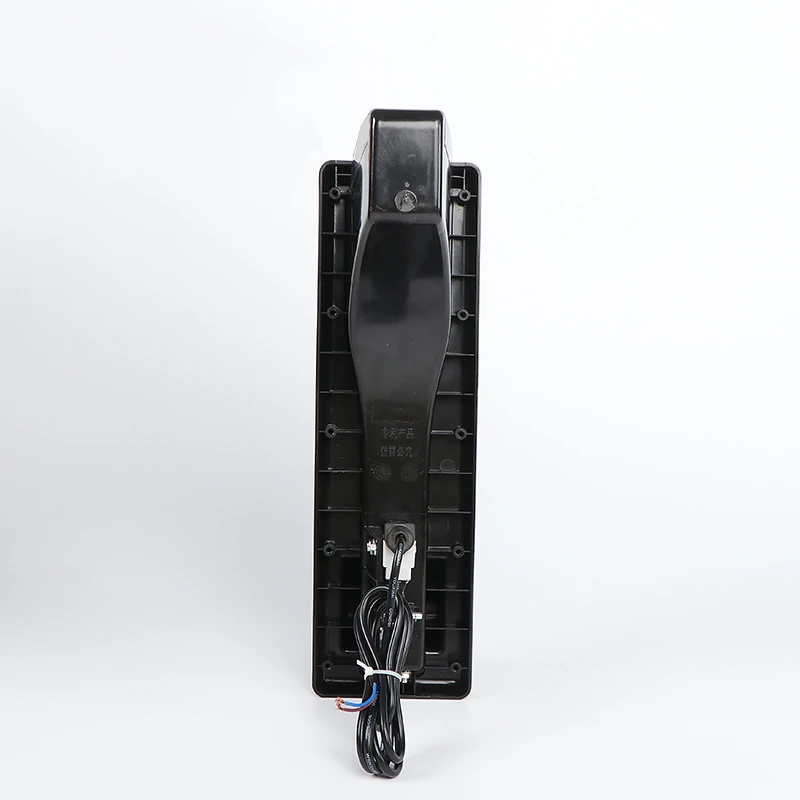

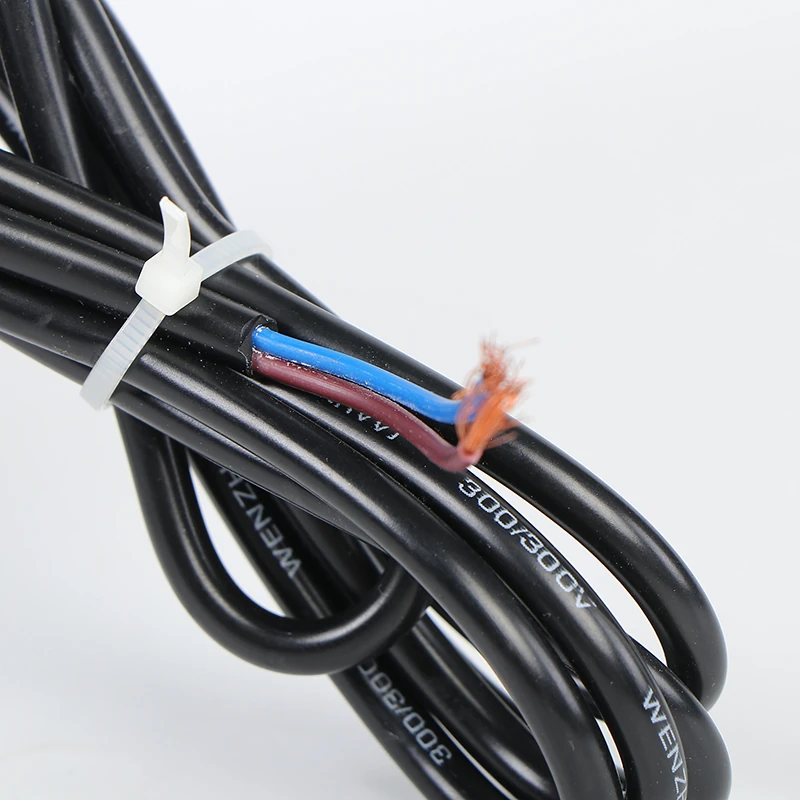

DT-PNH-A with Standard Switch — front view

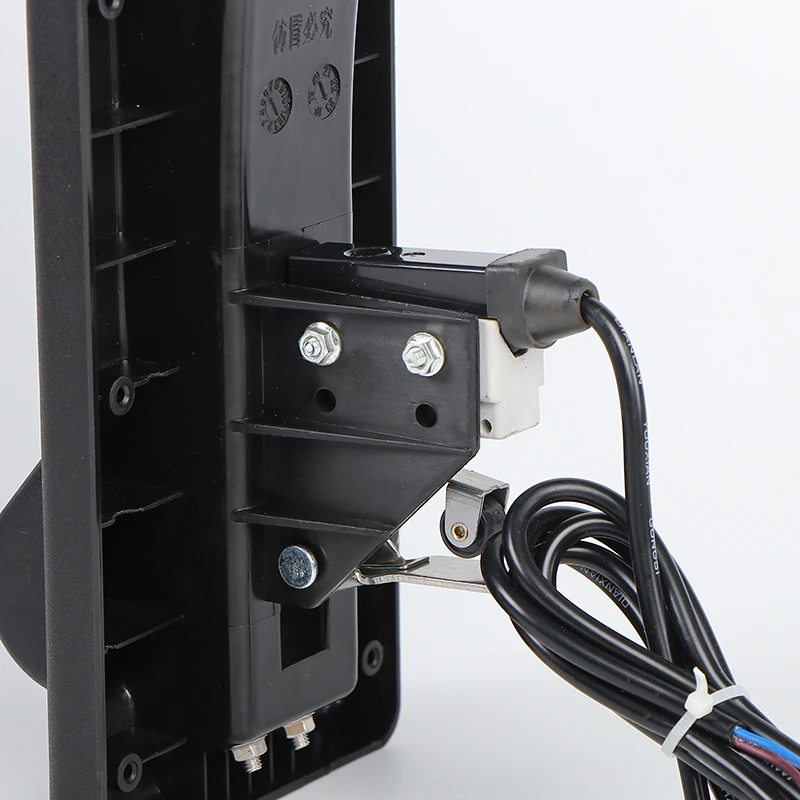

DT-PNH-A with Standard Switch — front view DT-PNH-A with Standard Switch — side view DT-PNH-A with Standard Switch — switch mounting detail DT-PNH-A with Standard Switch — cable detail

with Standard Switch

DT-PNH-A body fitted with a standard switch.

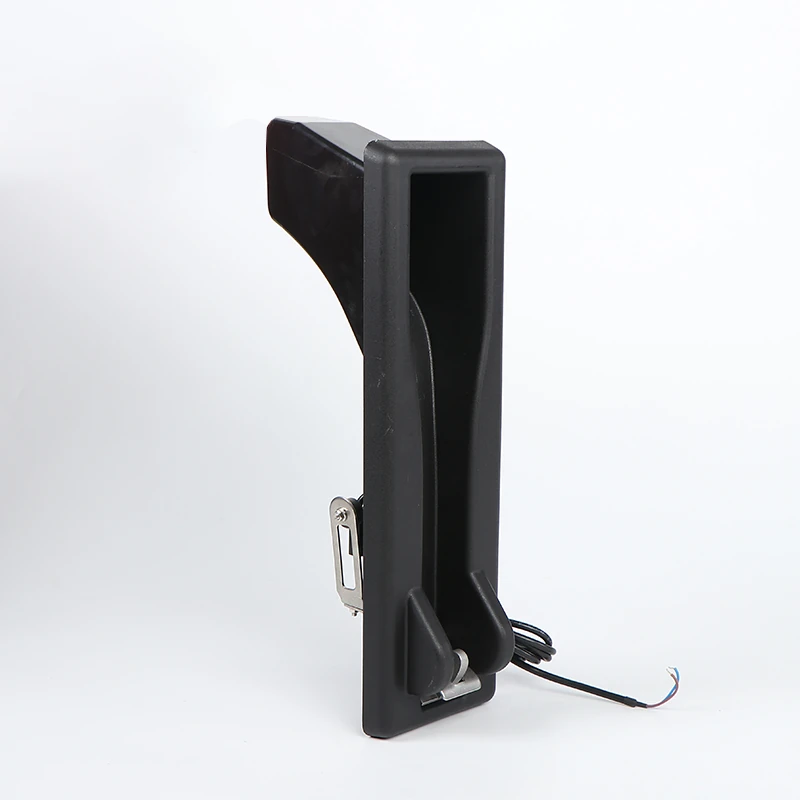

DT-PNH-A with Magnetic Switch, 1.8 m Cable — front view

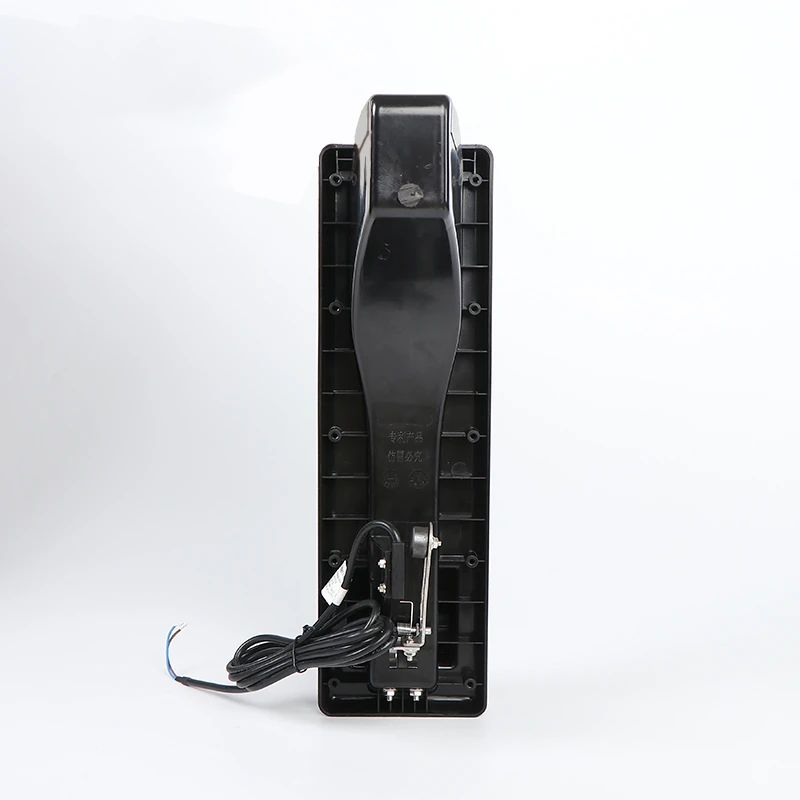

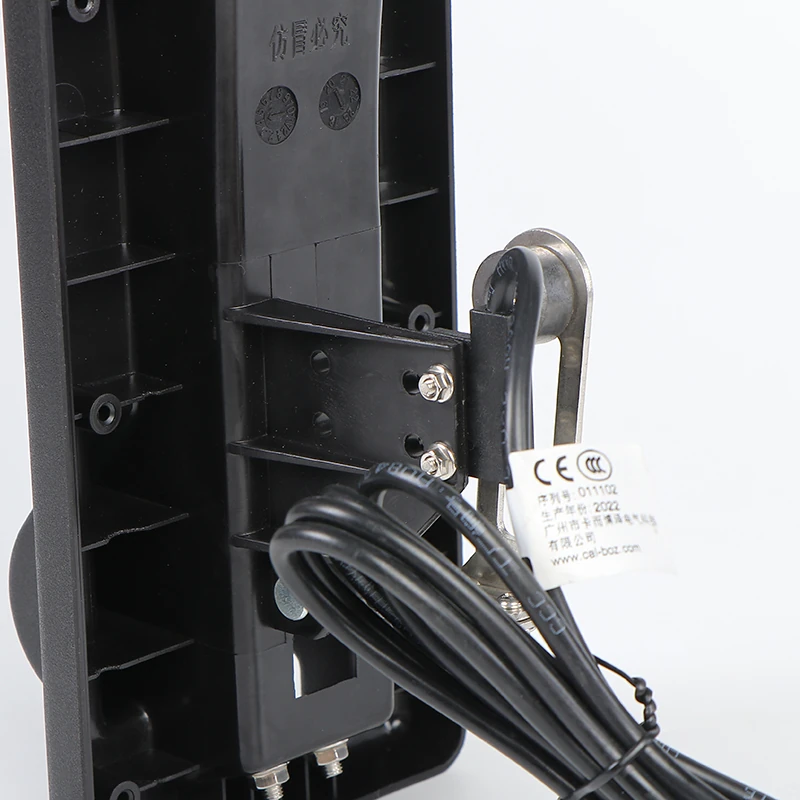

DT-PNH-A with Magnetic Switch, 1.8 m Cable — front view DT-PNH-A with Magnetic Switch, 1.8 m Cable — side view DT-PNH-A with Magnetic Switch, 1.8 m Cable — switch mounting detail DT-PNH-A with Magnetic Switch, 1.8 m Cable — cable detail

with Magnetic Switch, 1.8 m Cable

DT-PNH-A body fitted with a magnetic switch with 1.8 m cable.

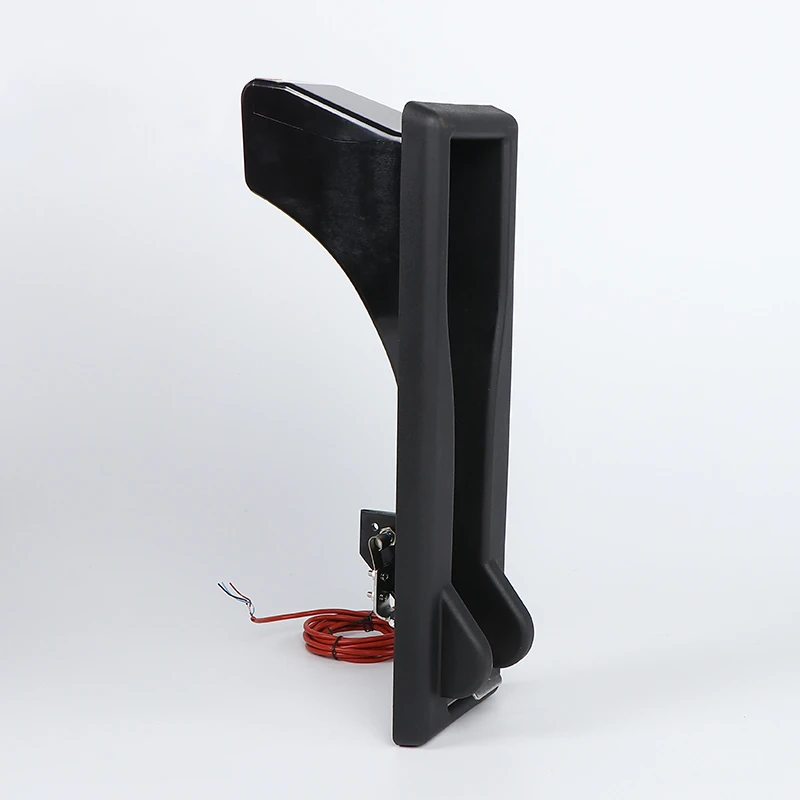

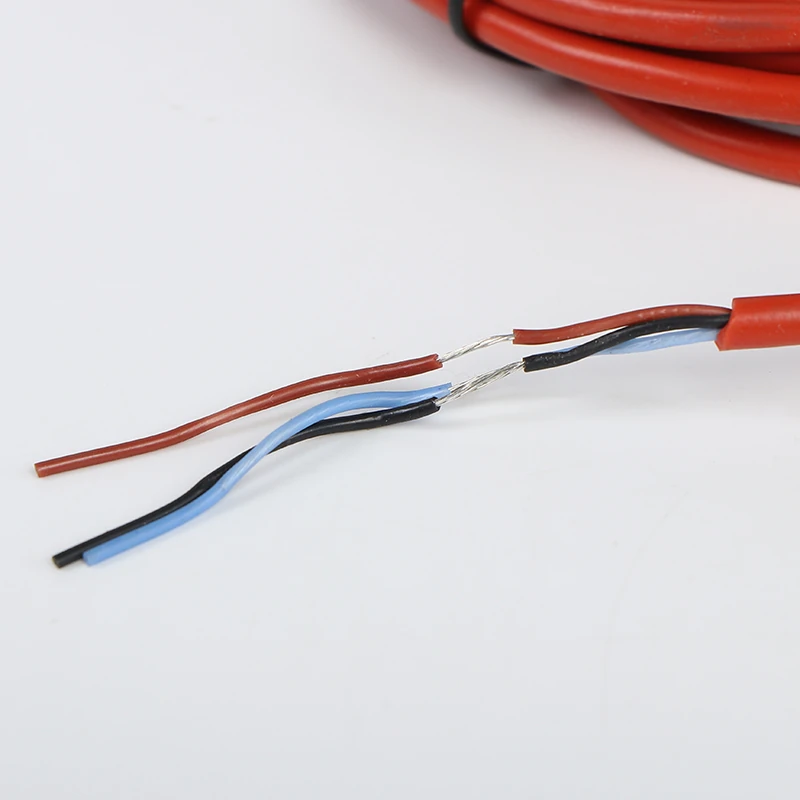

DT-PNH-A with Low-Temperature Hall Switch — front view

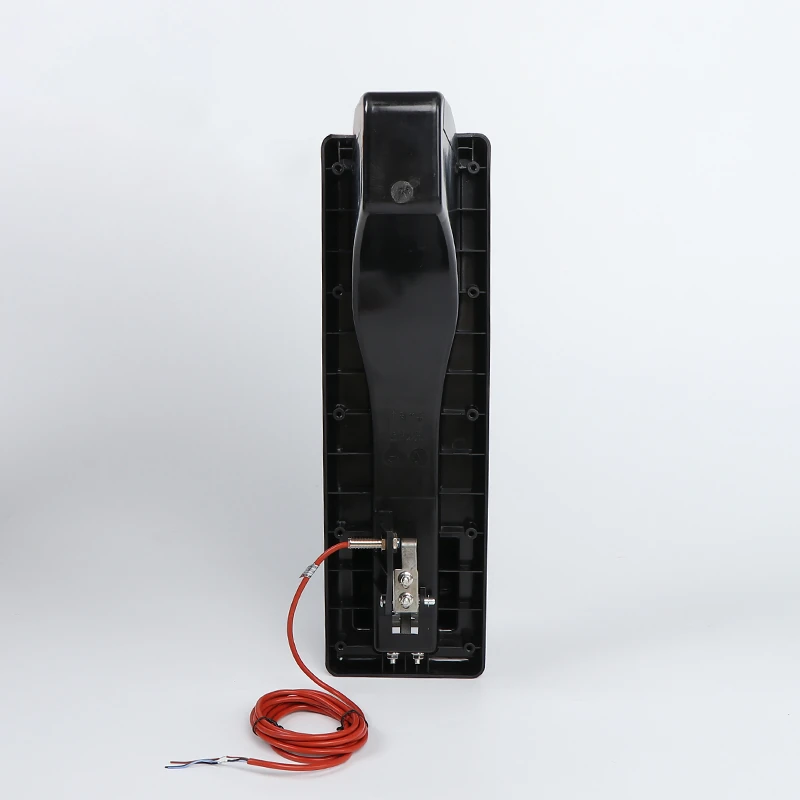

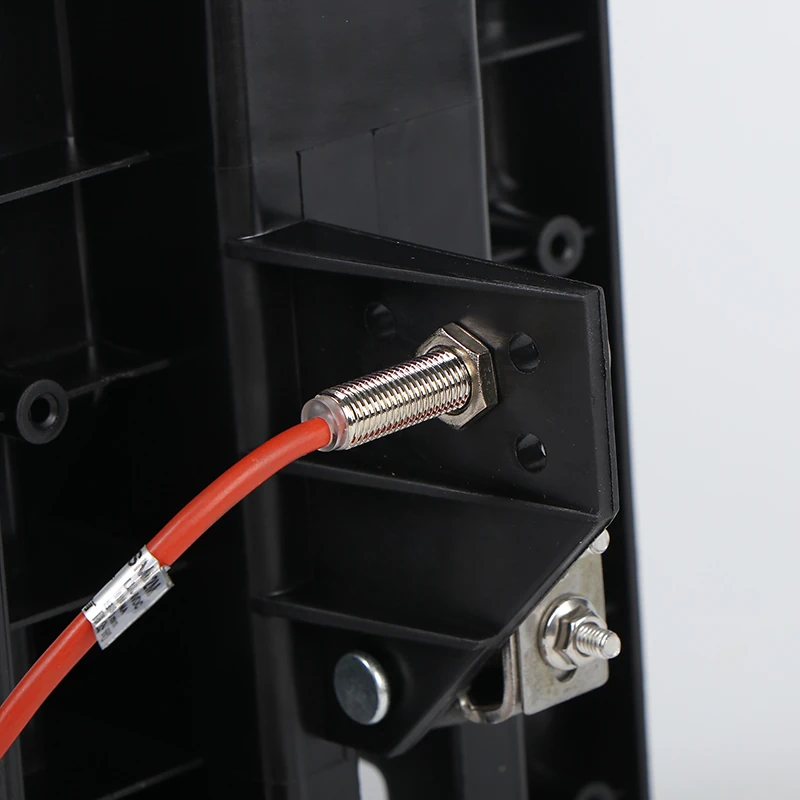

DT-PNH-A with Low-Temperature Hall Switch — front view DT-PNH-A with Low-Temperature Hall Switch — side view DT-PNH-A with Low-Temperature Hall Switch — switch mounting detail DT-PNH-A with Low-Temperature Hall Switch — cable detail

with Low-Temperature Hall Switch

DT-PNH-A body fitted with a low-temperature-rated Hall switch.

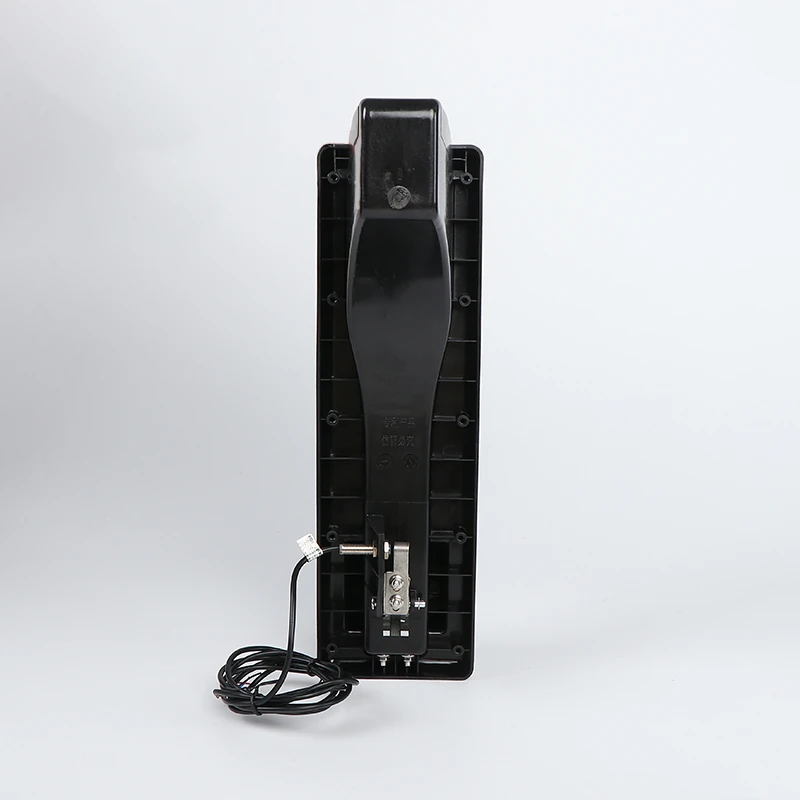

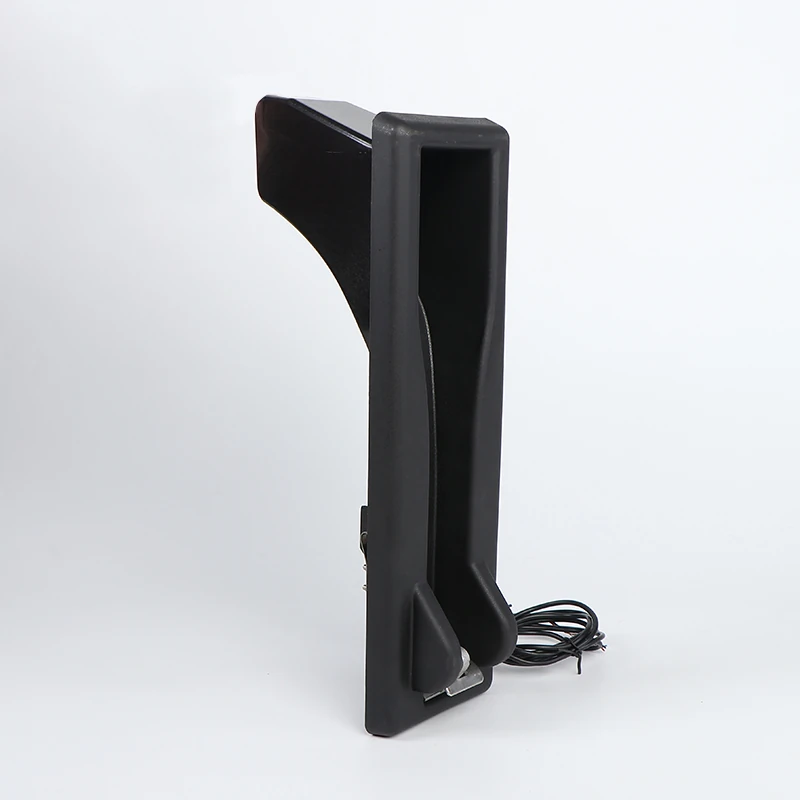

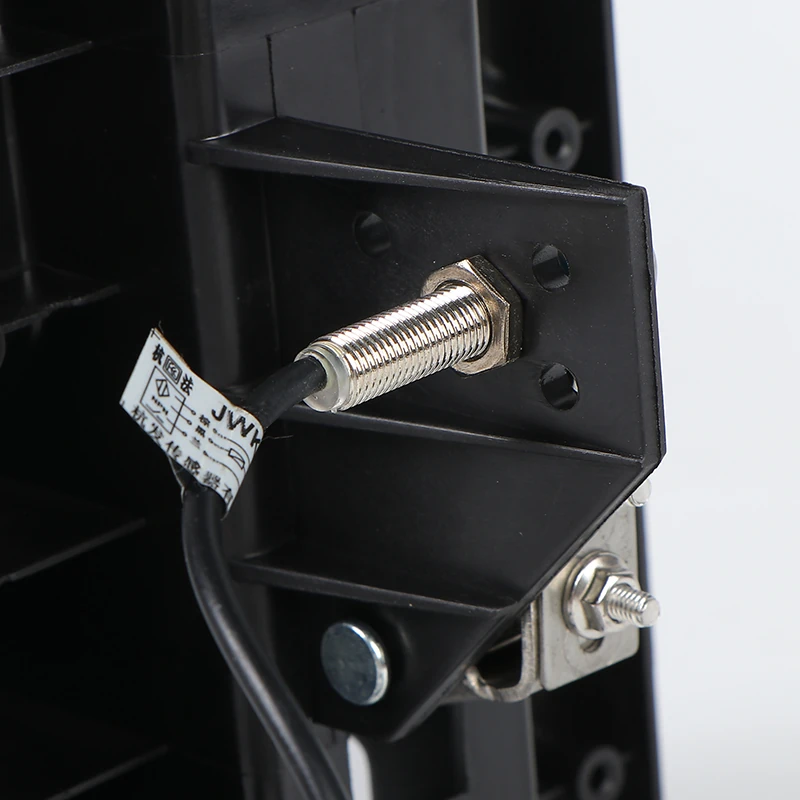

DT-PNH-A with Hall Switch — front view

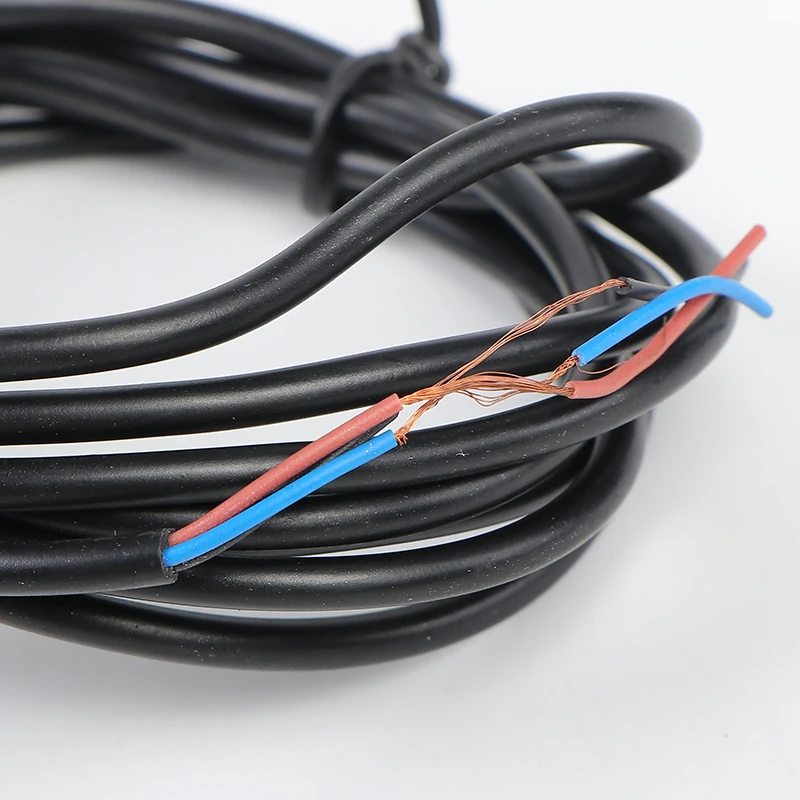

DT-PNH-A with Hall Switch — front view DT-PNH-A with Hall Switch — side view DT-PNH-A with Hall Switch — switch mounting detail DT-PNH-A with Hall Switch — cable detail

with Hall Switch

DT-PNH-A body fitted with a Hall switch.
