DTYQT3 is a nozzle holder for dispenser service. The installation drawing on this page carries the principal dimensions in millimetres; a full specification sheet with material and switch details is available on request.
Holders are matched to the nozzle, not to the dispenser. Before ordering, check the boot diameter against the spout you use, the mounting hole centres against the panel you are fitting to, and whether the switch is normally open or normally closed for your control board.
Send us a photograph of the existing holder or the panel drawing and we will confirm the replacement. If the mounting geometry has to change, we will say so before quoting.

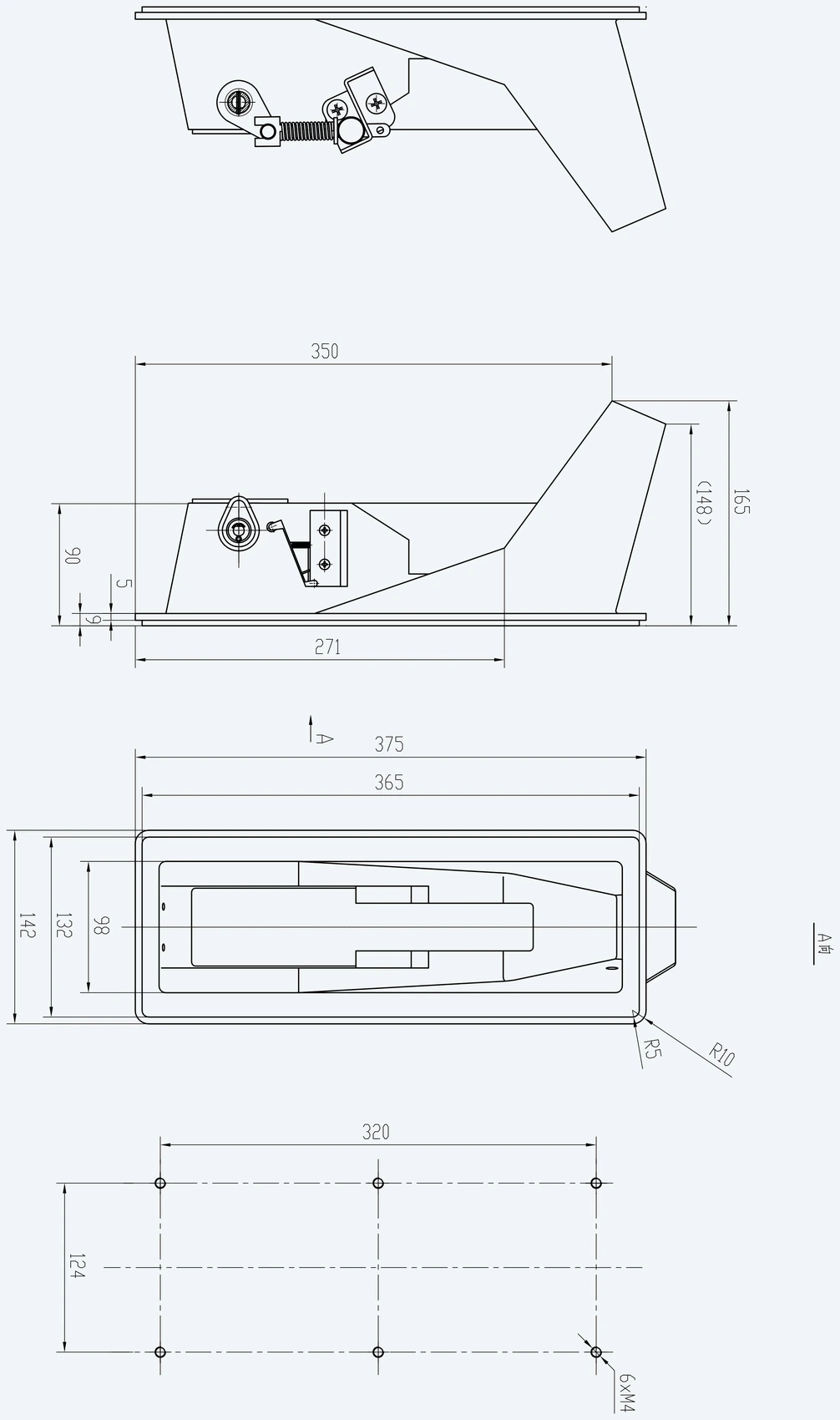

Principal dimensions in millimetres. Click the drawing to enlarge it.
