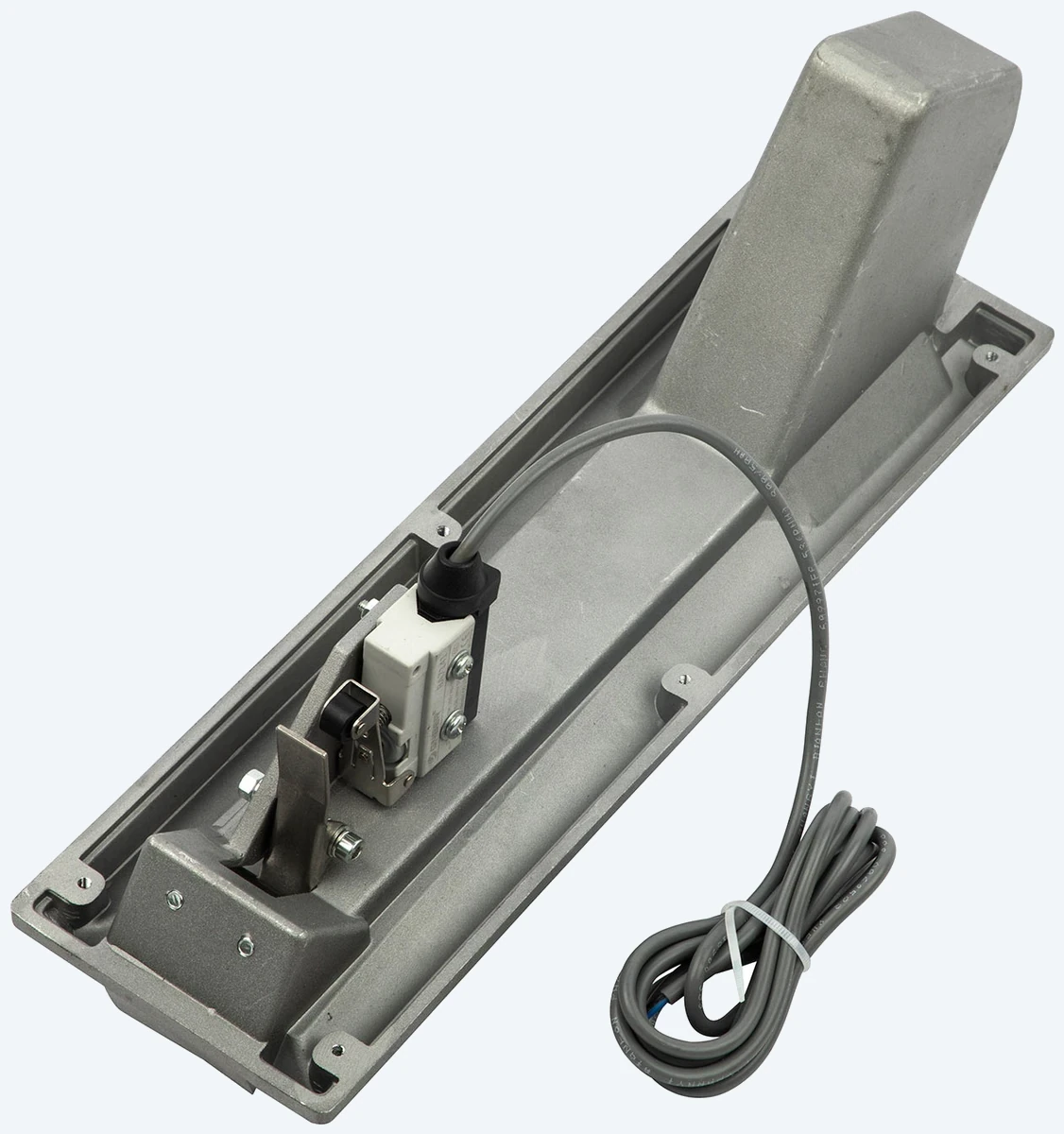

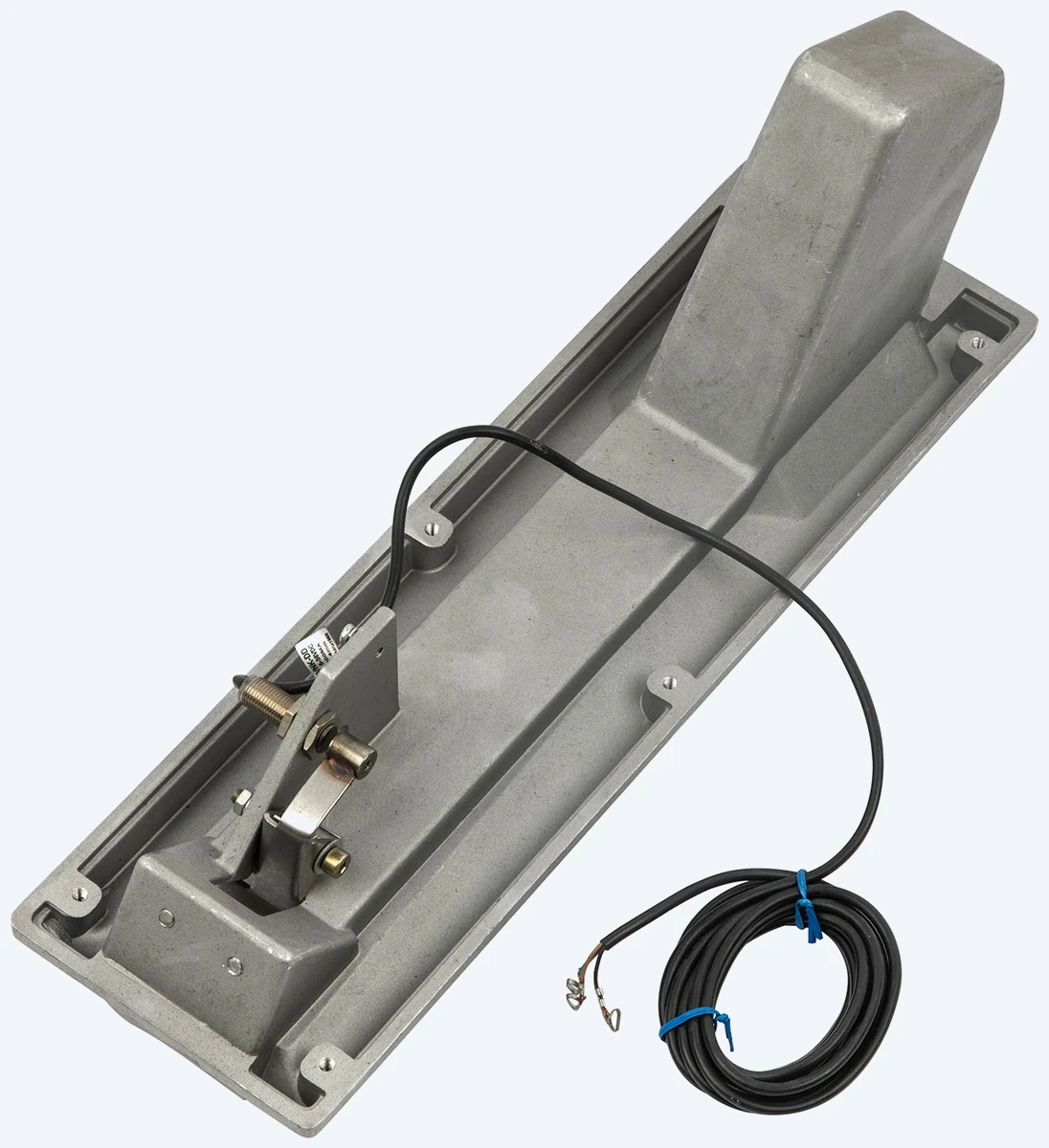

DTYQT4 is a nozzle holder with a roller lever switch and a coiled cable, shown here from the top, the underside and a three-quarter view. The roller lever is what the nozzle presses on when it is seated, so the switch state follows the nozzle rather than a separate sensor.

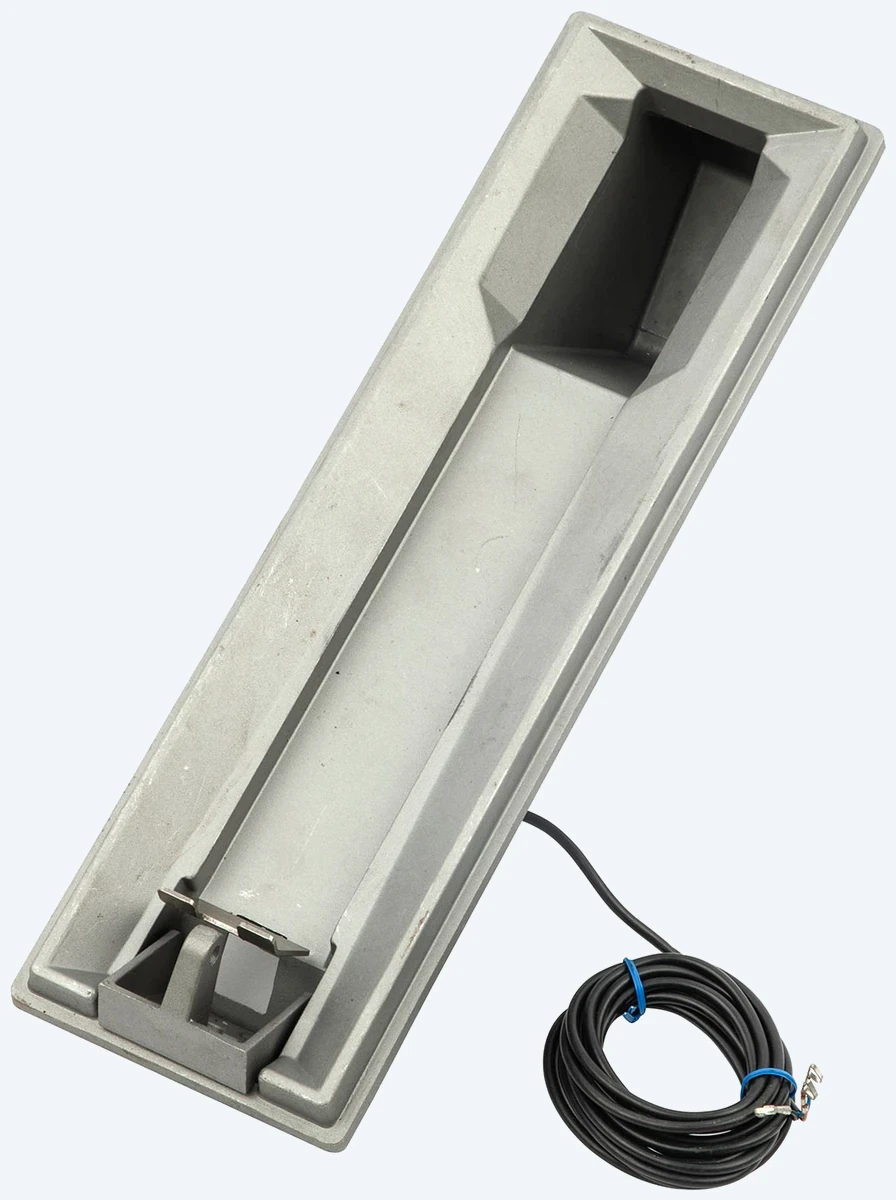

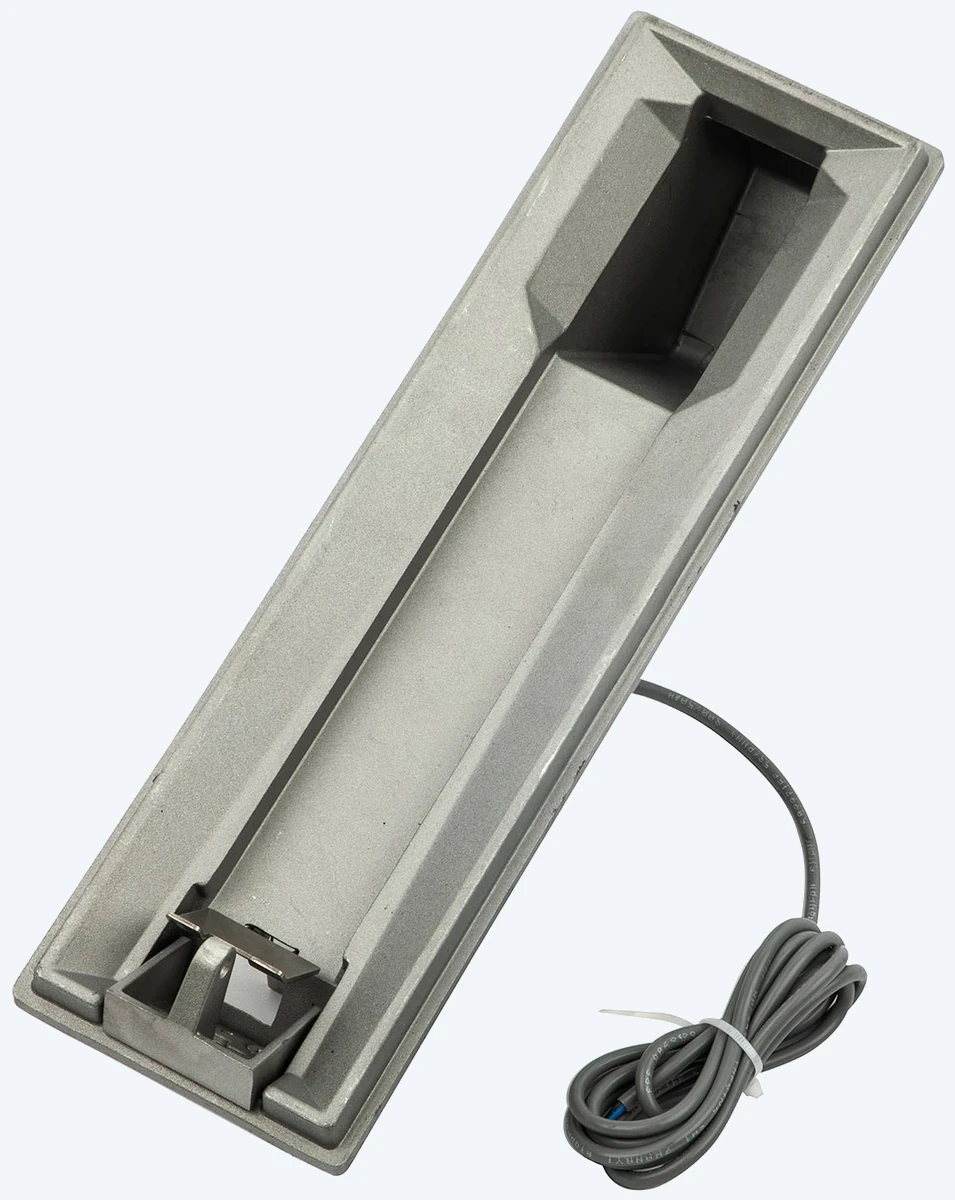

The underside view shows the mounting bracket and the cable exit. Those two details decide whether the holder drops onto an existing panel without re-drilling, so compare them with your panel before ordering.
A full specification sheet is available on request. If you are replacing a holder on an existing dispenser, send the dispenser model and the nozzle you use and we will confirm the fit.

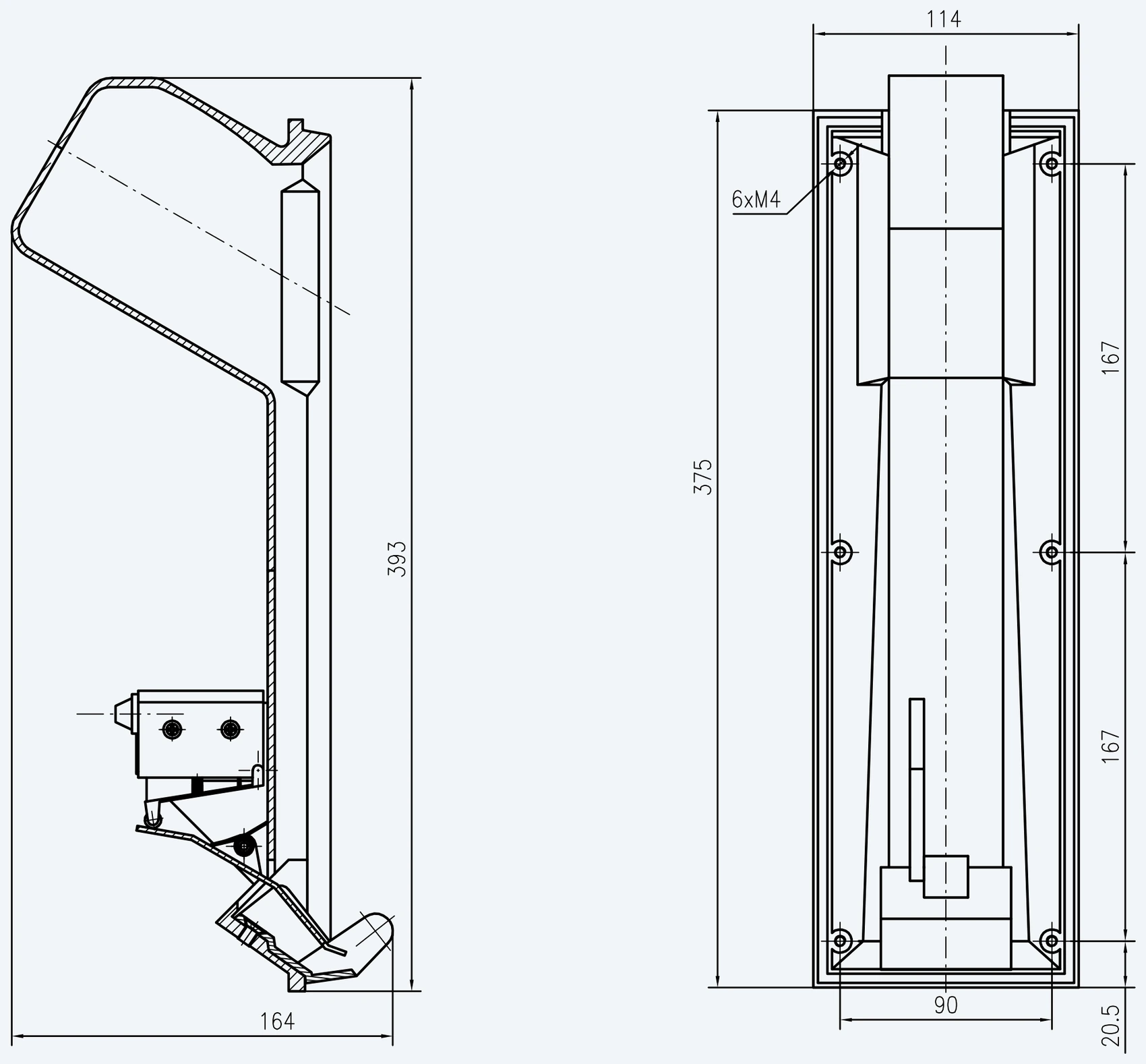

Principal dimensions in millimetres. Click the drawing to enlarge it.
