The last protection before the meter — mesh elements that take particles, gum and water out of the fuel so the pump and the meter stay accurate.
Three bodies cover the usual dispenser-side filtration duty. The dual-stage and FT2-00 filters run a coarse screen ahead of a fine one; the Y-type is a single-stage body for a straight run of line.
All three bodies are aluminium with an NBR seal and ISO 9001 approval.
| Model | Inlet / Outlet | Form | Mesh (coarse / fine) | Body | Packing | Net / Gross (kg) | Carton (cm) |
|---|---|---|---|---|---|---|---|

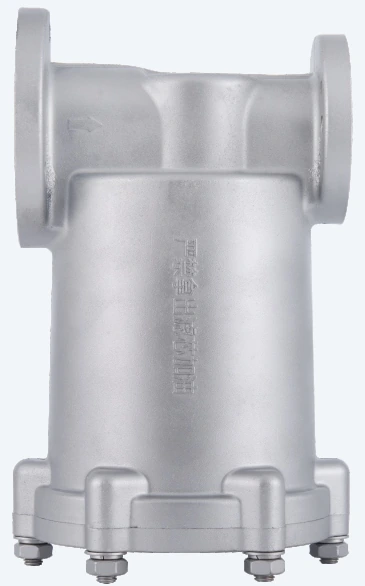

| Dual-stage filter | 1.5″ / 1.5″ | Mesh | 150 / 60 µm | Aluminium | 8 pcs/carton | 15.72 / 16.5 | 49 × 29 × 42.5 |
| FT2-00 | 1.5″ / 1.5″ | Mesh | 75 / 60 µm | Aluminium | 8 pcs/carton | 26.5 / 27.5 | 52.5 × 46.5 × 30 |
| Y-type | 1.5″ / 1.5″ | Mesh | 60 µm (single stage) | Aluminium | 12 pcs/carton | 10 / 11.9 | 49 × 29 × 43 |
The FT2-00 also carries a non-return valve; the source catalogue states a holding value of 0.86 – 0.106.
Further filtration hardware held alongside the catalogue range, quoted on request.
Tell us the fuel grade, the line size and the filtration you need — we will confirm the body and quote within 24 hours.
