Fixed and swivelling hose adapters, plus the universal swivel joint that sits between the nozzle and the hose and takes the twist out of the hose.
The 2-piece adapter is the fixed build and the 3-piece adapter swivels; the universal swivel joint adds 360° rotation between the nozzle and the hose. All three are offered in 3/4″ and 1″.

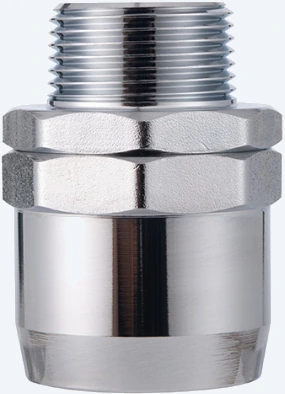

Rigid adapter, BSP/NPT/G, 3/4″ or 1″, brass body.
Request a quote →
Swivelling adapter, BSP/NPT/G, 3/4″ or 1″, brass body.
Request a quote →

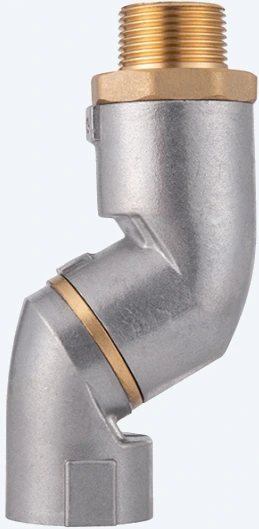

360° rotation between nozzle and hose, 0–60 L/min.
Request a quote →

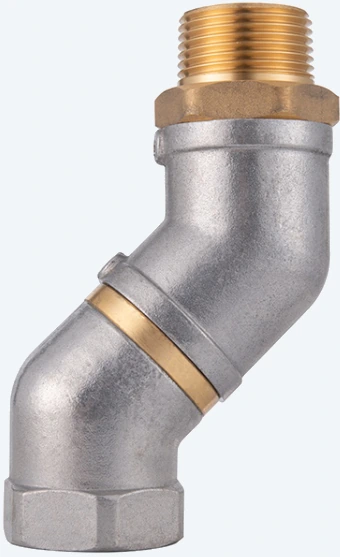

360° rotation between nozzle and hose, 0–100 L/min.
Request a quote →Cells marked — are not stated in the source catalogue; ask us and we will confirm the value for your order.
| Version | Thread | Size | Flow range | Body | Seal | Packing | Net / Gross (kg) | Carton (cm) |
|---|---|---|---|---|---|---|---|---|
| 2-piece (fixed) | BSP/NPT/G | 3/4″ | 0–60 L/min | Brass | — | 50 pcs/carton | 13.25 / 13.6 | 22 × 20 × 16 |
| 2-piece (fixed) | BSP/NPT/G | 1″ | 0–100 L/min | Brass | — | 33 pcs/carton | 12.4 / 12.7 | 22 × 21 × 21 |
| 3-piece (swivel) | BSP/NPT/G | 3/4″ | 0–60 L/min | Brass | FKM / FVMQ | 50 pcs/carton | 22.15 / 22.5 | 22 × 20 × 16 |
| 3-piece (swivel) | BSP/NPT/G | 1″ | 0–100 L/min | Brass | FKM / FVMQ | 33 pcs/carton | 20.9 / 22.5 | 22 × 21 × 21 |
ISO 9001 approval. The three-piece build is the one to specify where the hose would otherwise kink or twist at the nozzle; the two-piece build is simply a strong, fixed joint.
| Size | Thread | Flow range | Body | Seal | Packing | Net / Gross (kg) | Carton (cm) |
|---|---|---|---|---|---|---|---|
| 3/4″ | BSP/NPT/G | 0–60 L/min | Aluminium / brass | FKM / FVMQ | 50 pcs/carton | 18.65 / 20.3 | 35 × 29.5 × 24.5 |
| 1″ | BSP/NPT/G | 0–100 L/min | Aluminium / brass | FKM / FVMQ | 50 pcs/carton | 24.05 / 25.7 | 35 × 33 × 28 |
ISO 9001 approval. The joint is normally installed between the nozzle and the hose adapter.
Further hose and nozzle swivels held alongside the catalogue range, quoted on request.
Swivel, BSP/NPT 3/4", 100 pcs/carton.
Request a quote →
Swivel, BSP/NPT 3/4", 50 pcs/carton.
Request a quote →
Swivel, BSP/NPT 3/4", 100 pcs/carton.
Request a quote →
Swivel, BSP/NPT 3/4", 50 pcs/carton.
Request a quote →
45° swivel, BSP/NPT 3/4", 50 pcs/carton.
Request a quote →
45° swivel, BSP/NPT 3/4", 50 pcs/carton.
Request a quote →
45° swivel, BSP/NPT 3/4", 50 pcs/carton.
Request a quote →
Nozzle swivel, 100 pcs/carton.
Request a quote →
Nozzle swivel, 100 pcs/carton.
Request a quote →Tell us the nozzle model, hose size and thread standard — we will confirm the fitting and quote within 24 hours.
Request a quotation All accessories
