N8328

Nozzle Holder N8328 with Switch and Cable

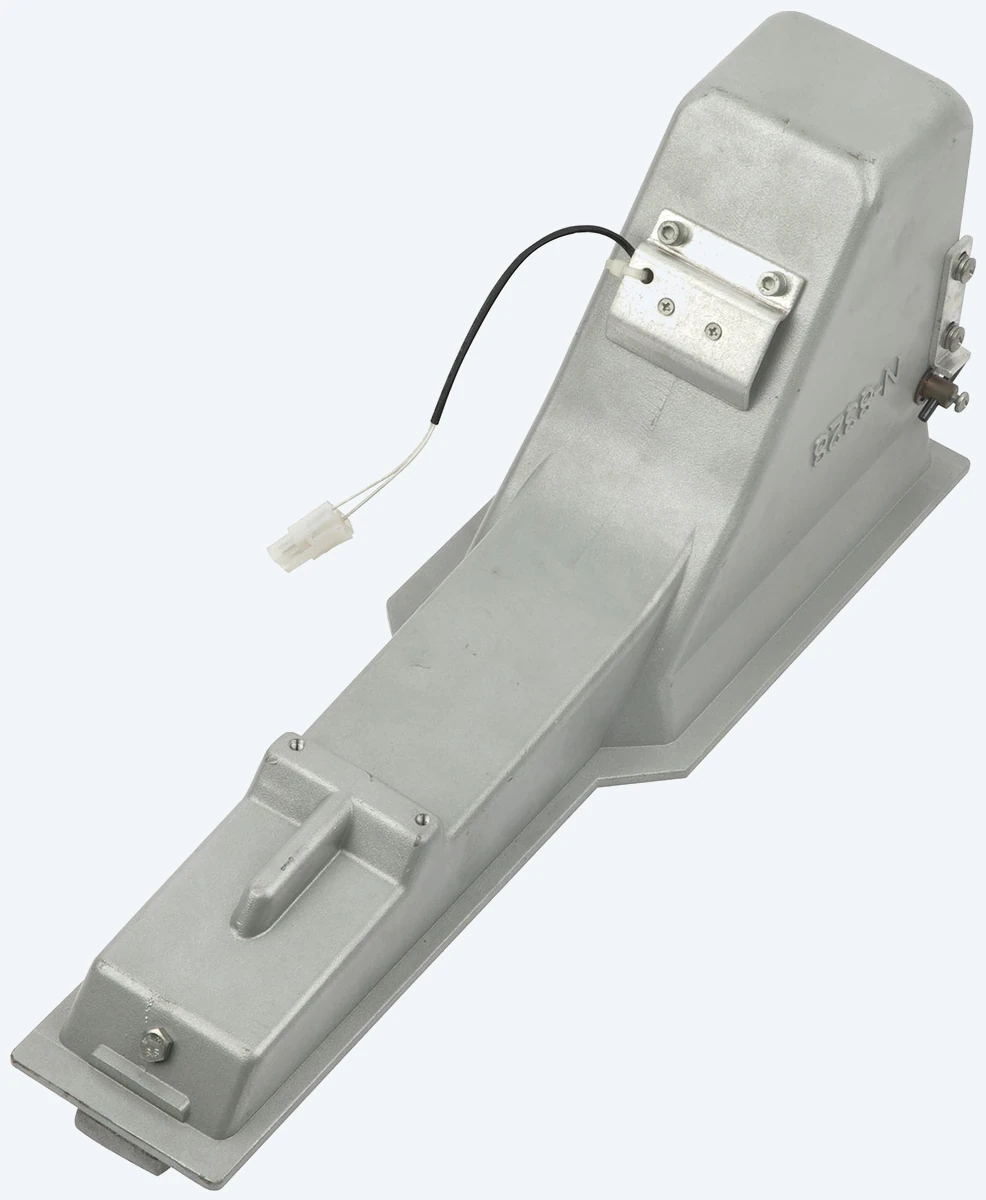

N8328 is a nozzle holder for a fuel dispenser, supplied with a switch cable so the dispenser knows when the nozzle is lifted out of the boot. The switch signal is what arms the pump and starts the transaction, so the holder is a functional part rather than a bracket.

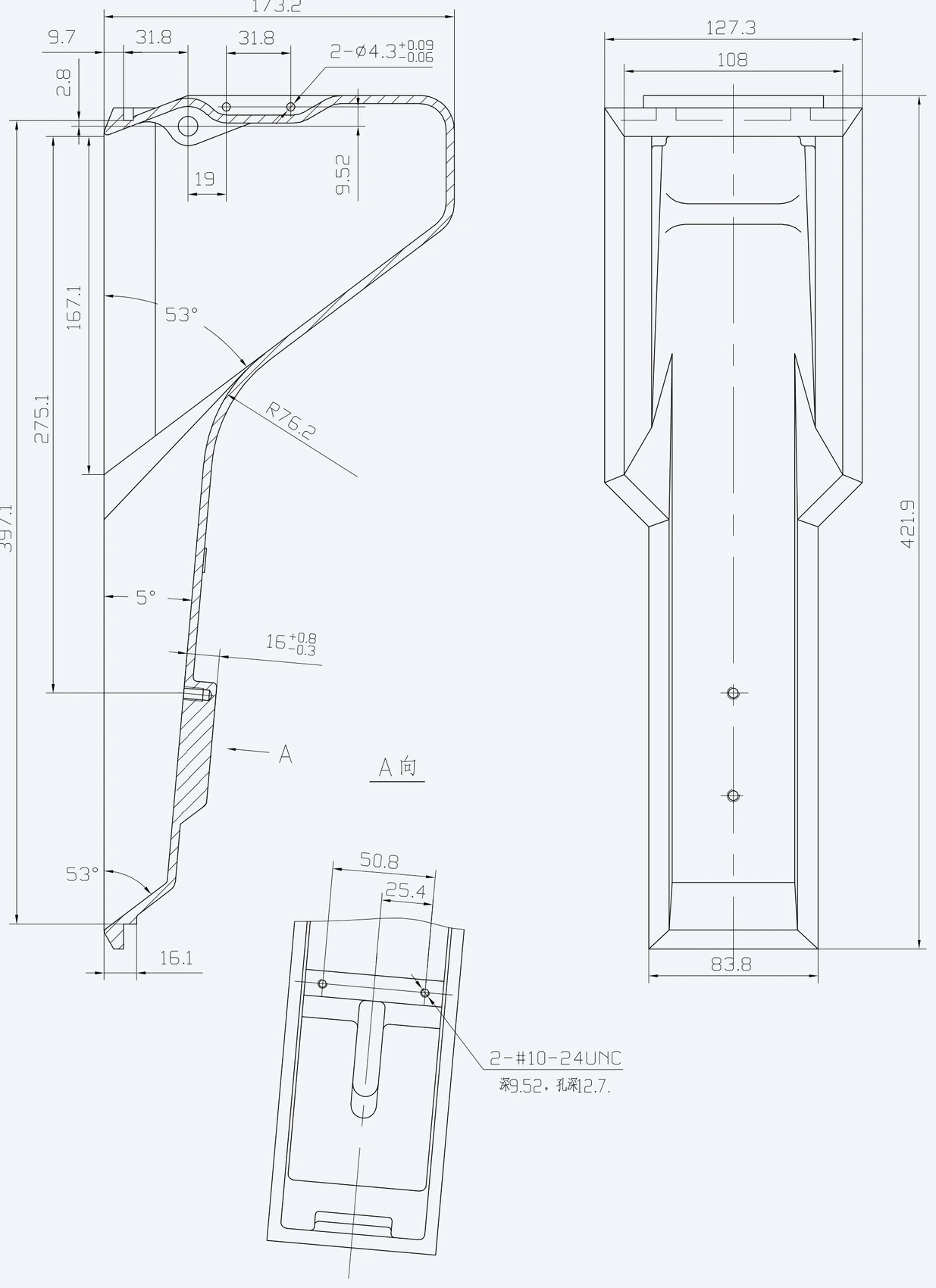

The reference drawing on this page gives the principal dimensions in millimetres, including the boot opening and the mounting points. Check those against the nozzle you standardise on — the boot has to release the nozzle cleanly with one hand, and the switch has to trip at the start of the lift, not halfway out.

Send the drawing back with the nozzle model you use and we will confirm fit. If you need the holder in a different material or with a different cable length, tell us and we will quote it as a variant.
