Explosion-Proof Pulser / Sensor — Pulser (Explosion-Proof Sensor) for fuel dispensing and station equipment.

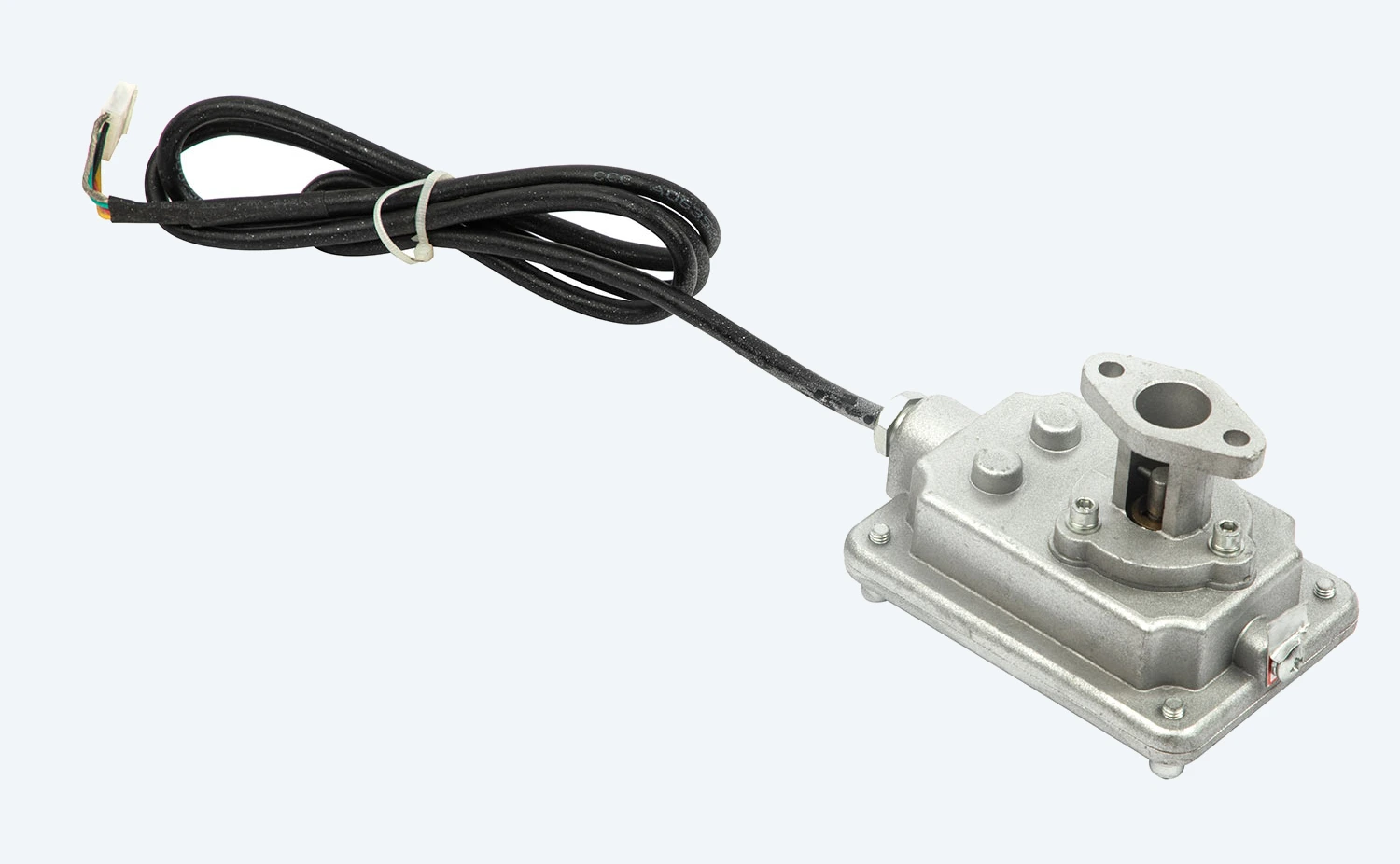

Explosion-proof pulser DT-Q1 in cast aluminum housing. Built-in mechanical counter with anti-reverse function, dual-channel square-wave output, and Ex d II B T4 Gb protection for Zone 1 and Zone 2 hazardous areas. Suitable for mounting on fuel dispensers to convert meter shaft rotation into electrical pulse signals.
| Parameter | Value |
|---|---|
| Model | DT-Q1 |
| Housing material | Aluminum |
| Dimensions (L×W×H) | 123 × 88 × 148 mm |
| Operating voltage | 5-12 VDC |
| Working current | 30 mA |
| Output pulse per revolution | 60 / 100 |
| Output channel | 2 |
| Signal waveform | Square wave |
| Maximum speed allowed | 300 r/min |
| Explosion-proof grade | Ex d II B T4 Gb |
| Certificate No. | CNE×16.1959X |
| Packaging | 20 PCS/CTN, 540×330×230 mm, 16.5 kg |
| HS Code | 84139100 |
