Explosion-Proof Pulser / Sensor — Pulser (Explosion-Proof Sensor) for fuel dispensing and station equipment.
Compact explosion-proof pulser DT-Q3 in aluminum housing. Dual-channel square-wave output, built-in anti-reverse mechanical counter, and Ex d II B T4 Gb explosion-proof rating for fuel dispenser metering systems.
| Parameter | Value |
|---|---|
| Model | DT-Q3 |
| Housing material | Aluminum |
| Dimensions (L×W×H) | 123 × 80 × 60 mm |
| Operating voltage | 5-12 VDC |
| Working current | 30 mA |
| Output pulse per revolution | 100 / 200 |
| Output channel | 2 |
| Signal waveform | Square wave |
| Maximum speed allowed | 300 r/min |
| Explosion-proof grade | Ex d II B T4 Gb |
| Certificate No. | CNE×15.3571 |
| Packaging | 20 PCS/CTN |
| HS Code | 84139100 |

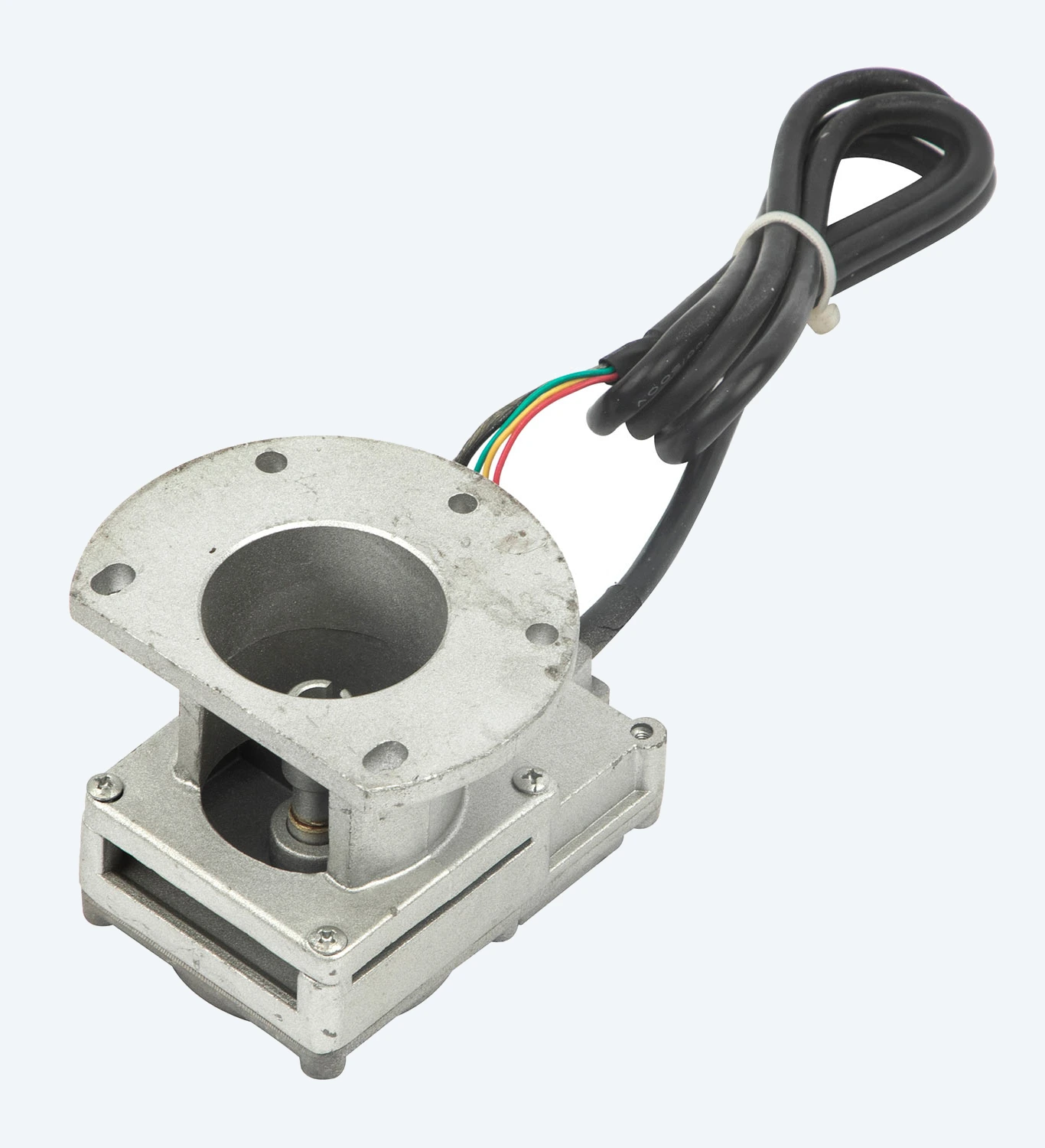

DT-Q3 is a compact explosion-proof pulser in an aluminium housing, measuring 123 × 80 × 60 mm. It puts out a dual-channel square wave at 100 or 200 pulses per revolution, runs on 5–12 VDC at 30 mA and is rated to a maximum speed of 300 r/min.
The explosion-proof rating is Ex d II B T4 Gb under certificate CNE×15.3571, which is what allows the sensor to sit in the hazardous area of the dispenser rather than being routed out of it. A built-in anti-reverse mechanical counter keeps a local total independent of the electronics.
For a replacement, quote the model, the pulses per revolution you need and the display head it feeds — pulse count has to match the metering board or the volume reading will not be right. It ships 20 pieces per carton under HS code 84139100.
