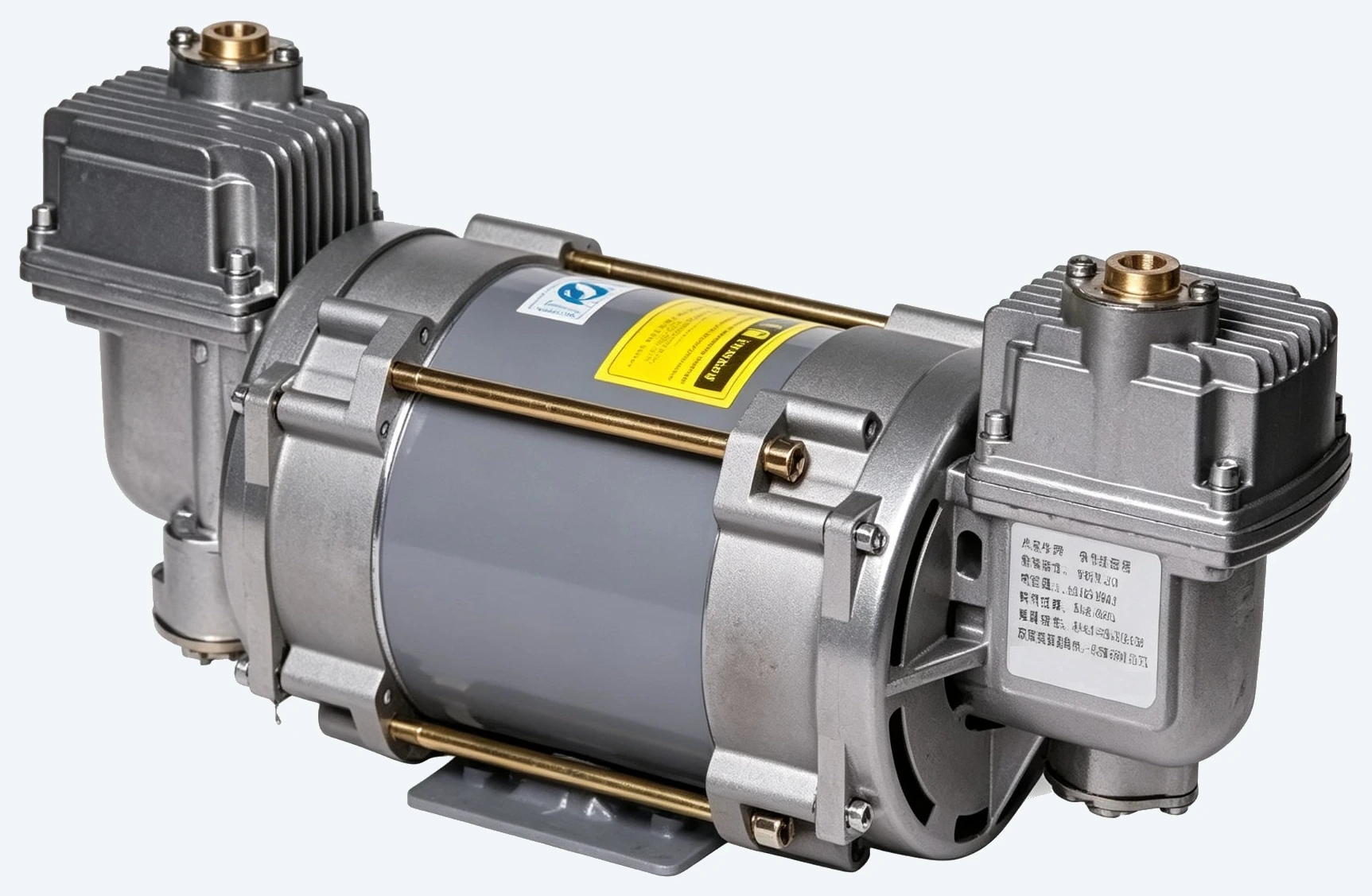

DT-VR2 dual-head vapor recovery vacuum pump

DT-VR2 dual-head vapor recovery pump - view A

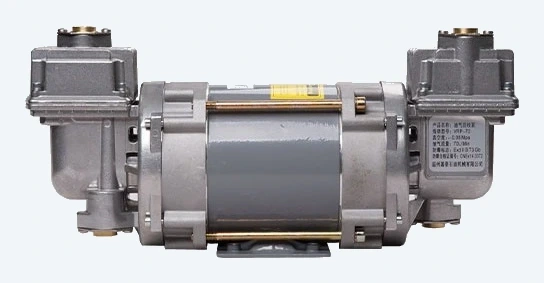

DT-VR2 dual-head vapor recovery pump - front view

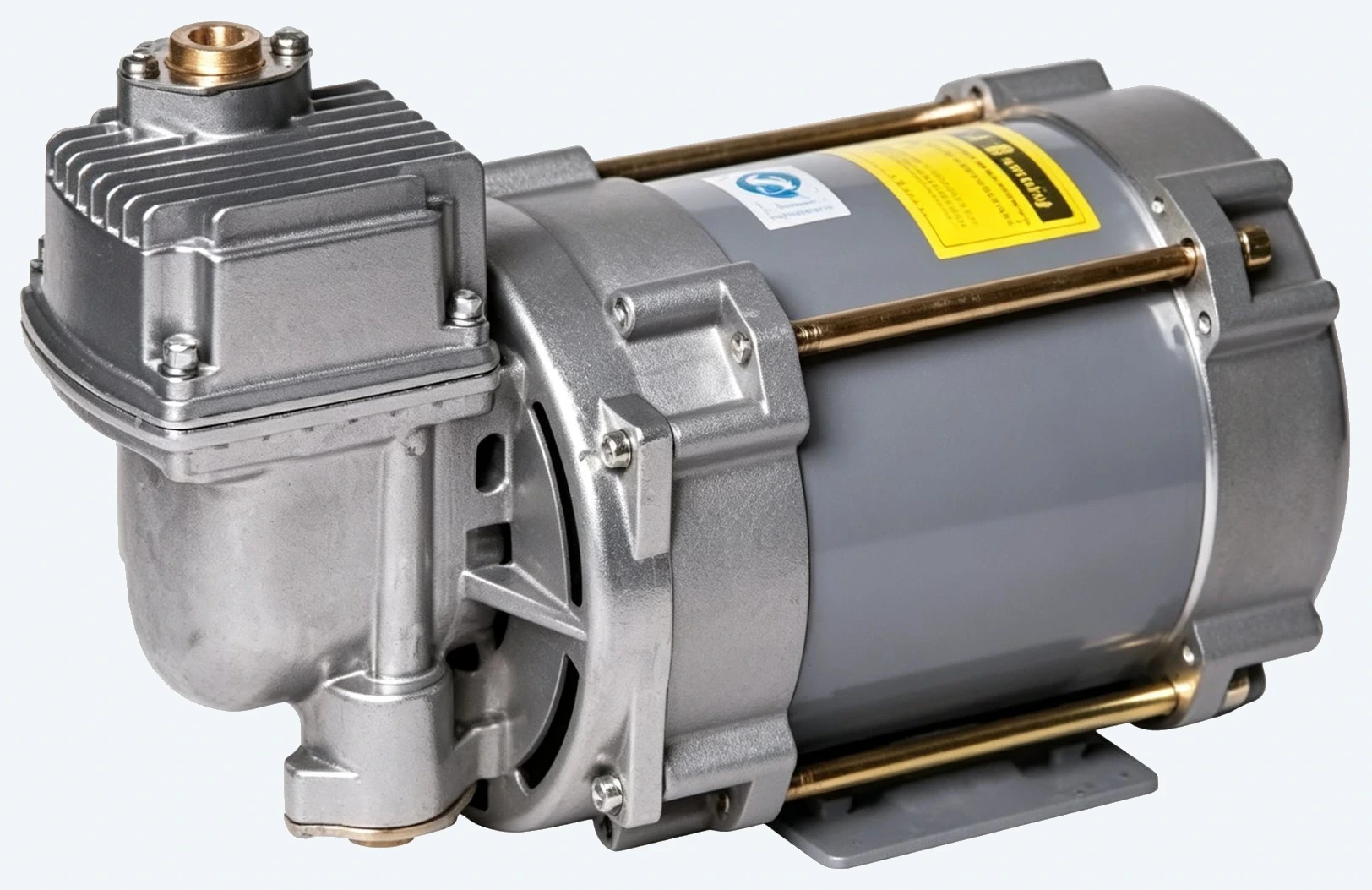

DT-VR1 single-head vapor recovery vacuum pump

Vapor Recovery Pump

DT-VR1 / DT-VR2

Vacuum pump with integrated flame arresters arranged on the inlet and outlet sides, built to suck off explosion-capable fuel vapor / air mixtures into the vapor recovery devices of dispensing devices at filling stations.

Two part numbers share one pump body. DT-VR1 is the single-head unit for one nozzle; DT-VR2 is the dual-head unit shared by two nozzles — the dual-head is where the saving sits on multi-nozzle dispensers.

Protection system prevents flame breakthrough in deflagrations and stable detonations
Integrated flame arresters on inlet and outlet sides
Single or double pump head — one part number each

Request a Quote Stage II Solution

Model Designation

DT-VR1 or DT-VR2

Model	Pump heads	Nozzle capacity	Net weight
DT-VR1	1	One nozzle	12.80 kg
DT-VR2	2	Two nozzles	14.95 kg

Specifications

Technical Specifications

Parameter	Value
Max Flow Rate	70 L/min
Setting Pressure	< 0.18 MPa
Resistance to Pressure	0.3 MPa
Current	< 0.9 A
Voltage	220 V / 380 V
Frequency	50 Hz
Motor Power	380 W
Motor Speed	2820 r/min
Noise Sound	< 70 dB
Temperature	−40 °C to +55 °C
Net Weight	12.80 kg (DT-VR1) / 14.95 kg (DT-VR2)

For faultless function it is necessary to keep the product clean. Final values are confirmed per order — contact our engineering team for the drawing, the certificate set and the spare-parts list.
