DT-A Series — Entry to the Classic Range

The entry point to the Classic range: a compact 1–2 pump cabinet that covers everything from a single-outlet rural site up to a twin-hose island, in all three quality tiers — Economical, Speed and Luxury.

DT-G Series — High Performance DT-L Series — Balanced Design DT-T Series — Compact for Tanks DT-M Series — Multimedia LED DT-A Series — Entry Classic Classic Series — Cost-Effective DT-HF Series — High Flow Rate Truck-Mounted Dispensers
Classic Range · Entry Model

DT-A Series

Every cabinet is available in all three quality tiers and uses the same interchangeable Ex-proof components from our certified-component library.

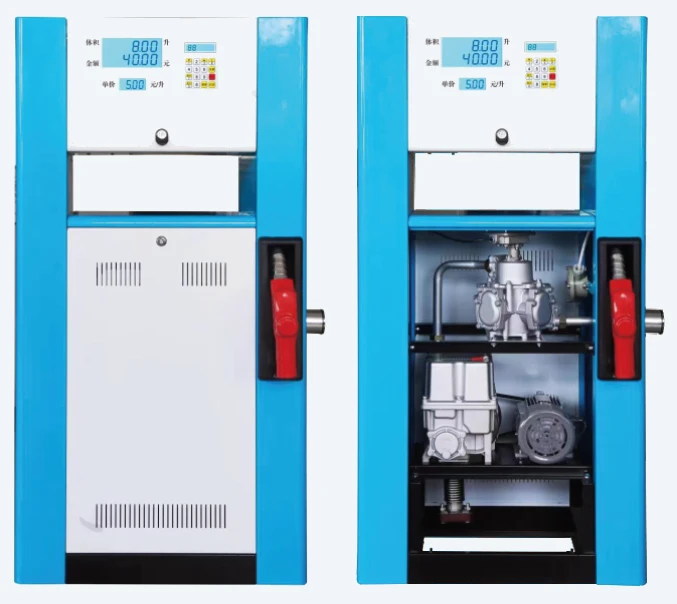

DT-A1111 — High Flow
DT-A1111 · High Flow

DT-A1111 — High Flow

The top-flow DT-A1111: a compact single-gun cabinet that moves 10 – 120 L/min, the highest delivery in the range, with your choice of combination or gear pump.

  • Single gun · compact cabinet
  • Highest flow in the range: 10 – 120 L/min
  • Combination or gear pump with a 65-type flow meter
  • ±0.3% measurement accuracy
Dimension720 × 420 × 1500 mm
Accuracy±0.3%
Flow range10 – 120 L/min
Motor power750 – 1100 W
VoltageAC 220 V / 380 V
Pump optionsCombination / gear pump · 65-type flow meter
ApplicationDiesel, kerosene, gasoline, etc
Request a Quote 120L/M High Flow

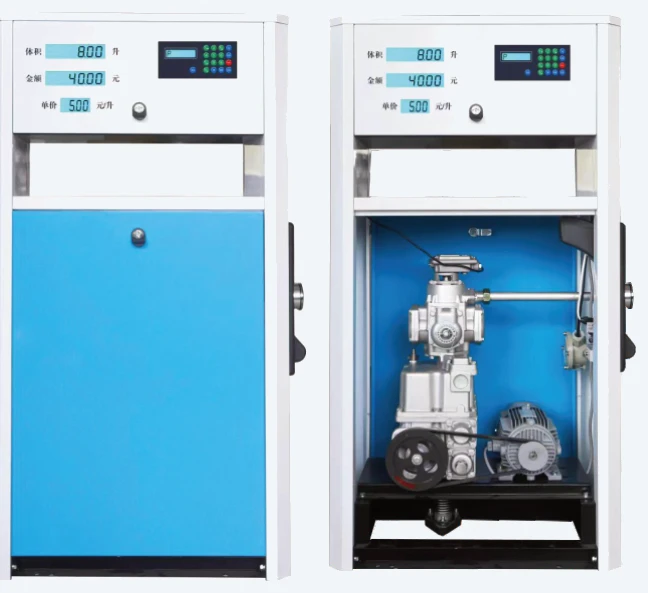

DT-A1111 — Standard
DT-A1111 · Standard

DT-A1111 — Standard

The standard DT-A1111: the same single-gun footprint in a shorter cabinet, delivering 10 – 80 L/min through a combination pump and 50-type flow meter.

  • Single gun · compact cabinet
  • Flow range 10 – 80 L/min
  • Combination pump with a 50-type flow meter
  • ±0.3% measurement accuracy
Dimension720 × 420 × 1350 mm
Accuracy±0.3%
Flow range10 – 80 L/min
Motor power750 – 1100 W
VoltageAC 220 V / 380 V
Pump optionsCombination pump · 50-type flow meter
ApplicationDiesel, kerosene, gasoline, etc
Request a Quote

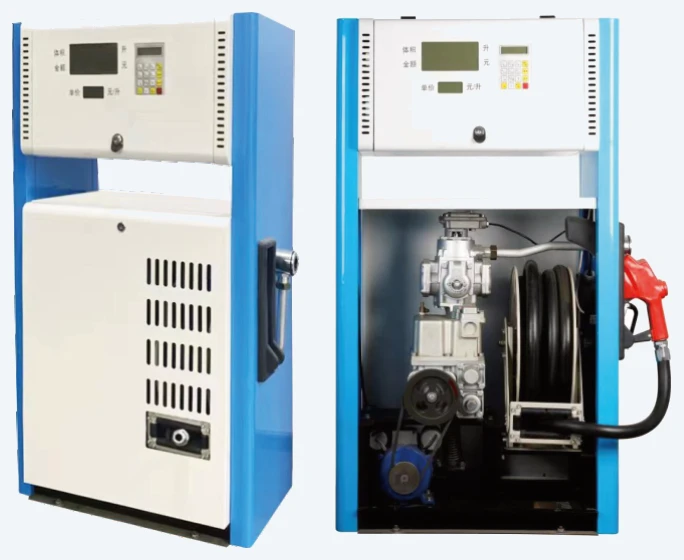

DT-A1111 — Hose Reel
DT-A1111 · Hose Reel

DT-A1111 — Hose Reel

The reel-type DT-A1111: a single-gun cabinet with an integrated spring hose reel, so the nozzle always parks tidy on busy self-service islands.

  • Single gun with an integrated hose reel
  • Flow range 10 – 80 L/min
  • Combination pump with a 50-type flow meter
  • ±0.3% measurement accuracy
Dimension820 × 520 × 1370 mm
Accuracy±0.3%
Flow range10 – 80 L/min
Motor power750 – 1100 W
VoltageAC 220 V / 380 V
Pump optionsCombination pump · 50-type flow meter
ApplicationDiesel, kerosene, gasoline, etc
Request a Quote

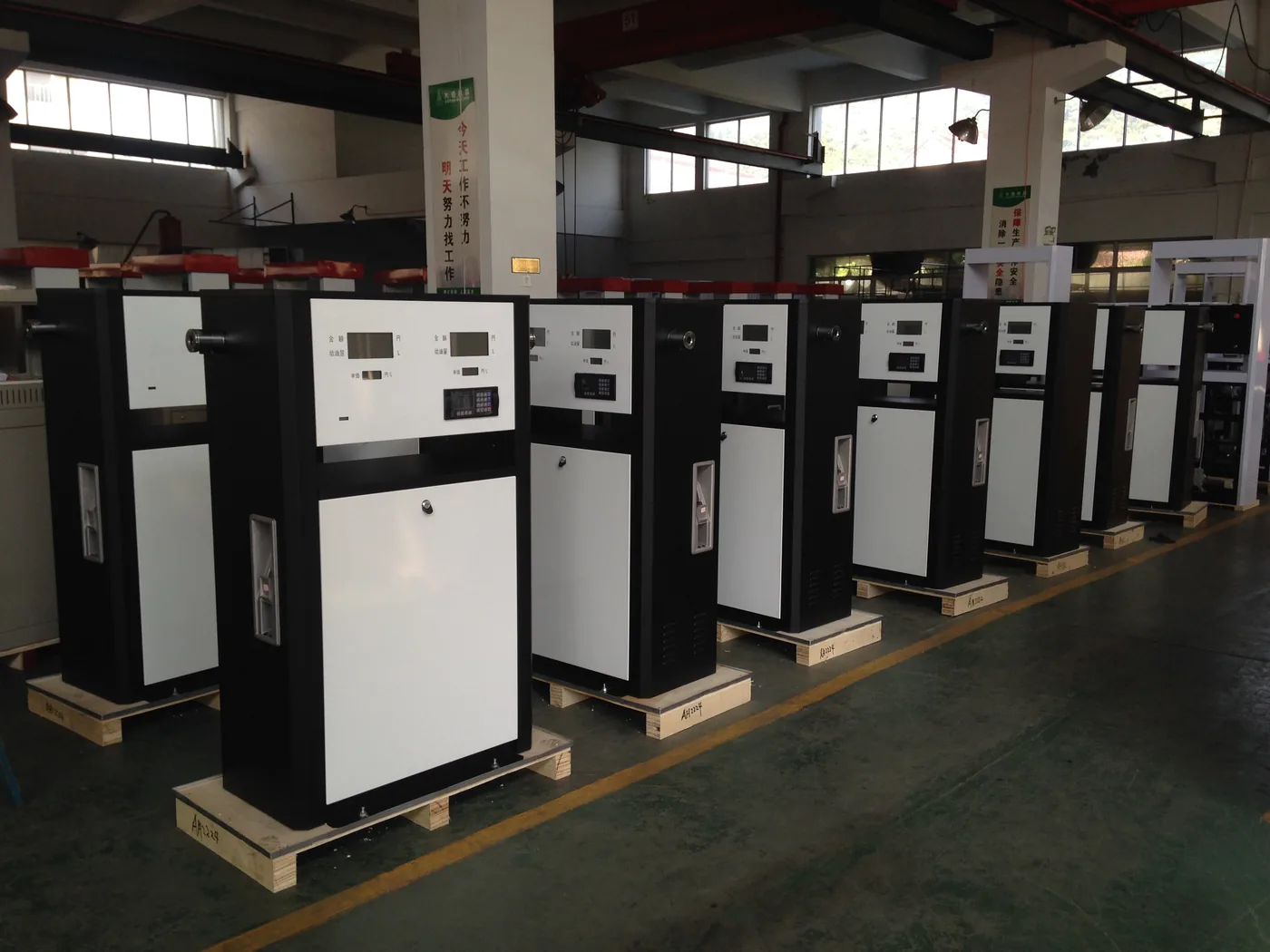

DT-A fuel dispenser

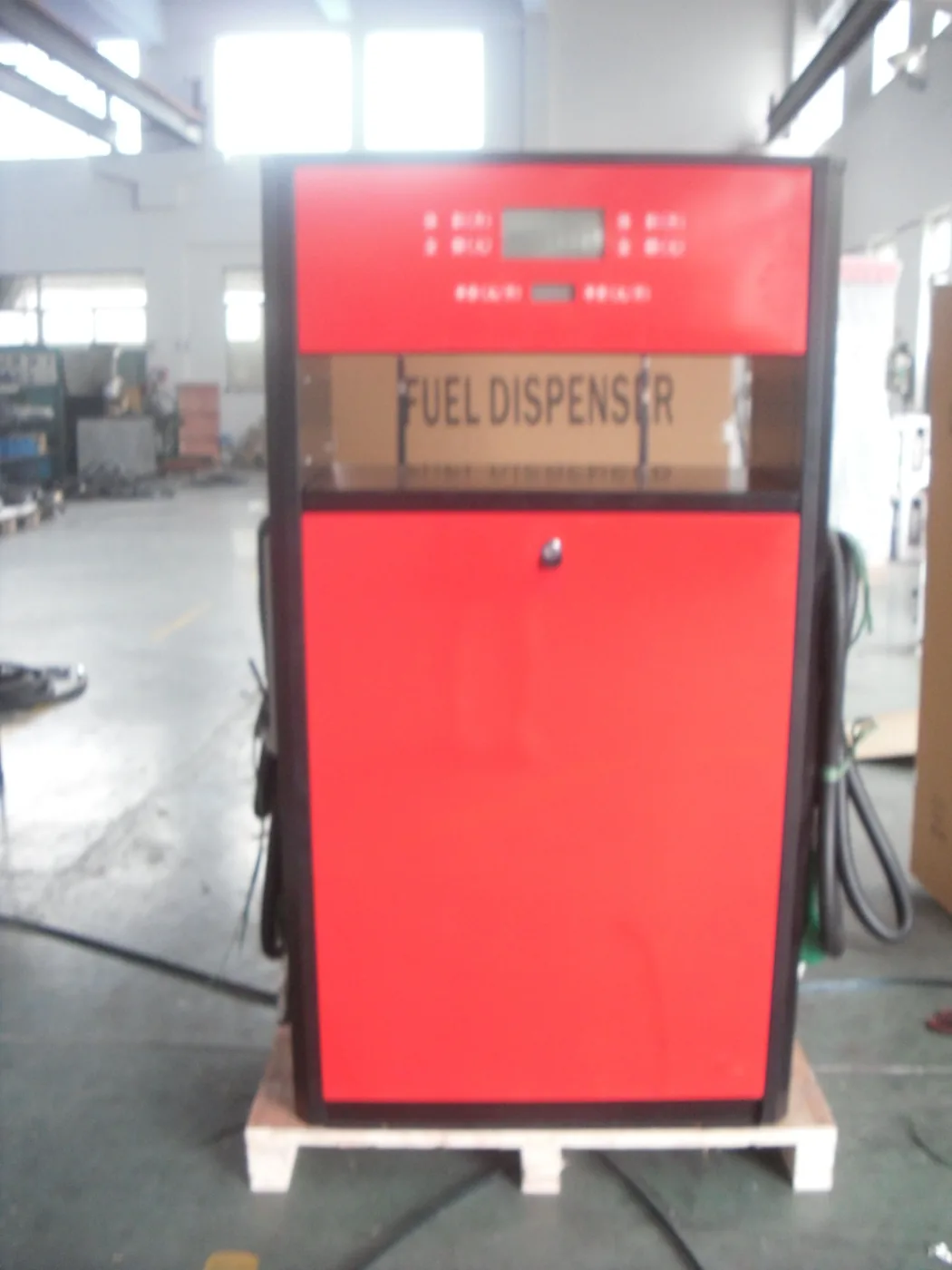

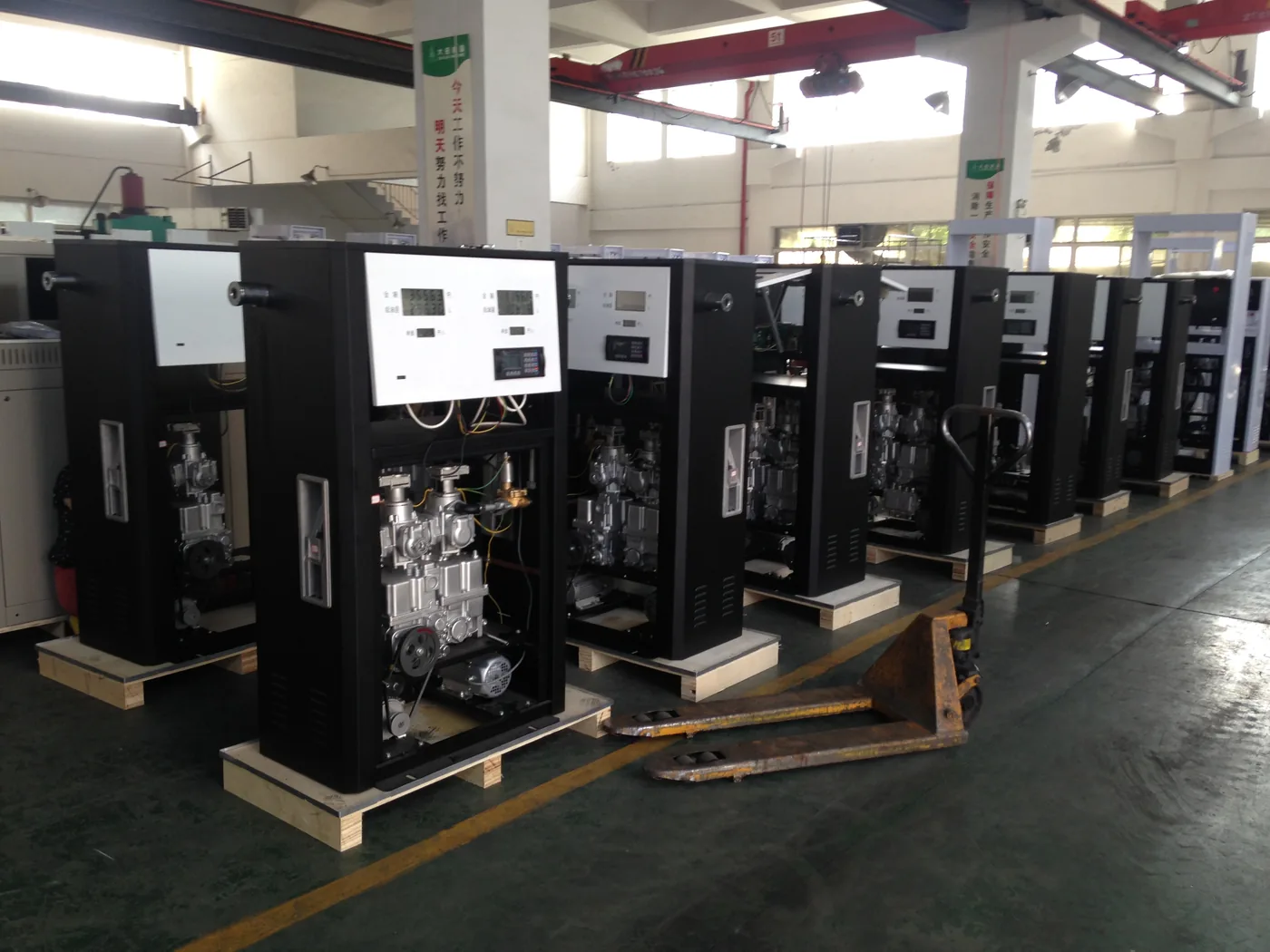

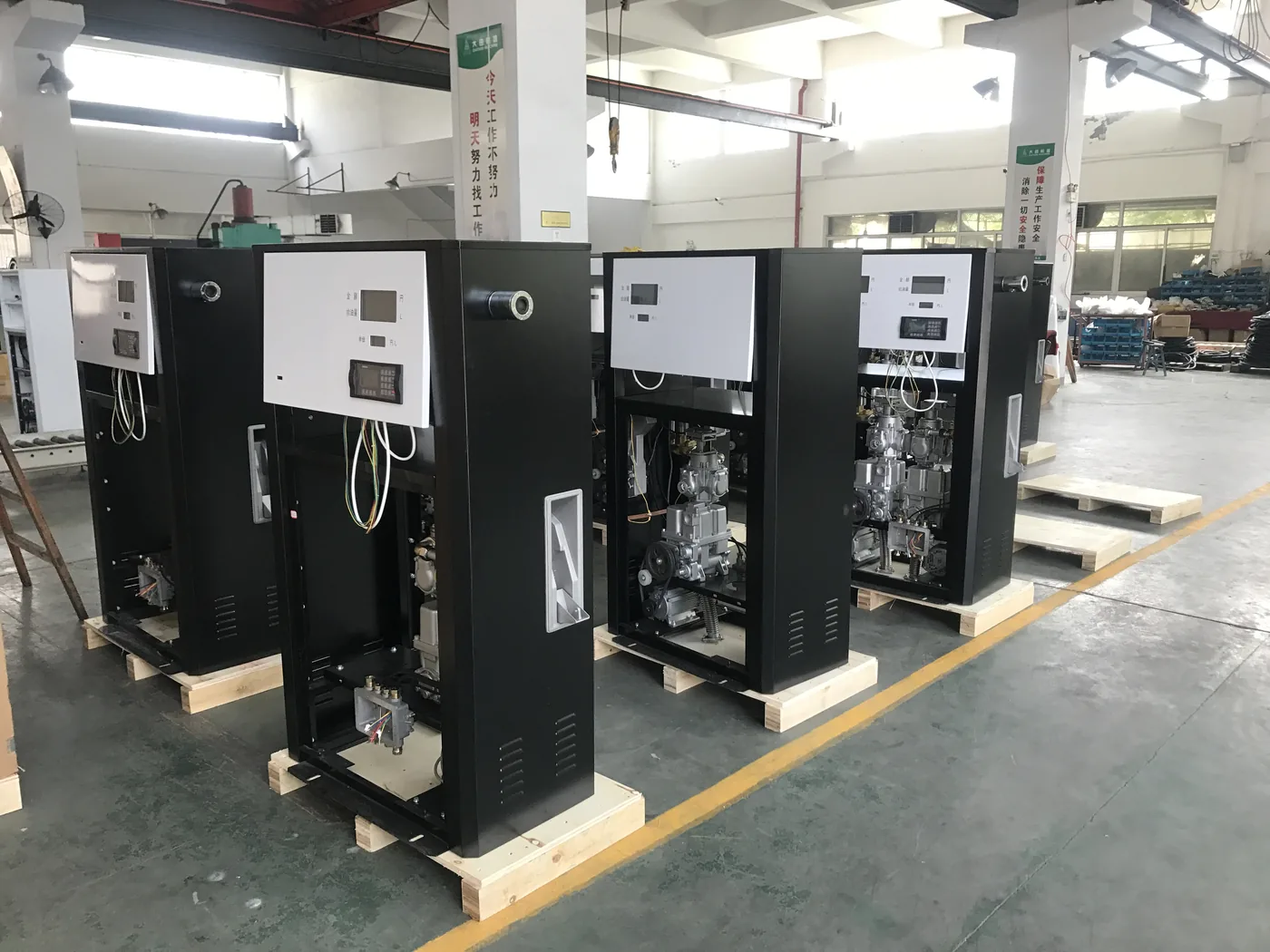

DT-A fuel dispenser (default view) DT-A view 1 DT-A view 2 DT-A view 3
DT-A Series

DT-A Customized

The entry point to the Classic range. A compact 1–2 pump cabinet that covers everything from a single-outlet rural site up to a twin-hose island, without paying for capacity you will not use.

  • 1 or 2 pumps · up to 2 nozzles
  • Up to 4 displays for dual-sided price display
  • Smallest footprint in the Classic range
  • All three quality tiers: Economical, Speed, Luxury

DT-A codes 4 digits = pumps · nozzles · displays · keyboards

11211 pump · 1 nozzle · 2 display · 1 keyboard
12221 pump · 2 nozzle · 2 display · 2 keyboard
12421 pump · 2 nozzle · 4 display · 2 keyboard
22222 pump · 2 nozzle · 2 display · 2 keyboard
22422 pump · 2 nozzle · 4 display · 2 keyboard

Best for single or twin-hose retail islands on a tight budget.

Request a Quote
Explore

Other Dispenser Series

DT-G Series — High Performance

DT-G Series — High Performance

Heavy-duty up to 8 nozzles, V/G/S pump options.
DT-L Series — Balanced Design

DT-L Series — Balanced Design

Mid-tier up to 8 nozzles, V/G/S pump options.
DT-T Series — Compact for Tanks

DT-T Series — Compact for Tanks

Compact 1–2 nozzle dispensers for depots and tank farms.
DT-M Series — Multimedia LED

DT-M Series — Multimedia LED

Dispenser with a built-in LED screen for pump-side media.
Classic Series — Cost-Effective

Classic Series — Cost-Effective

Five more Classic cabinets: DT-C, DT-P, DT-Q, DT-R and DT-W.

← All fuel dispenser series

Need a DT-A Dispenser?

Tell us your island layout and quality tier — we will match the right DT-A model code and quote within 24–48 hours.
