Mobile and portable refuelling equipment for fuel-delivery fleets, remote sites and on-site yards. Truck-mounted dispensers, hose-reel pump kits and compact pump assemblies, all powered from 12 V to 380 V.

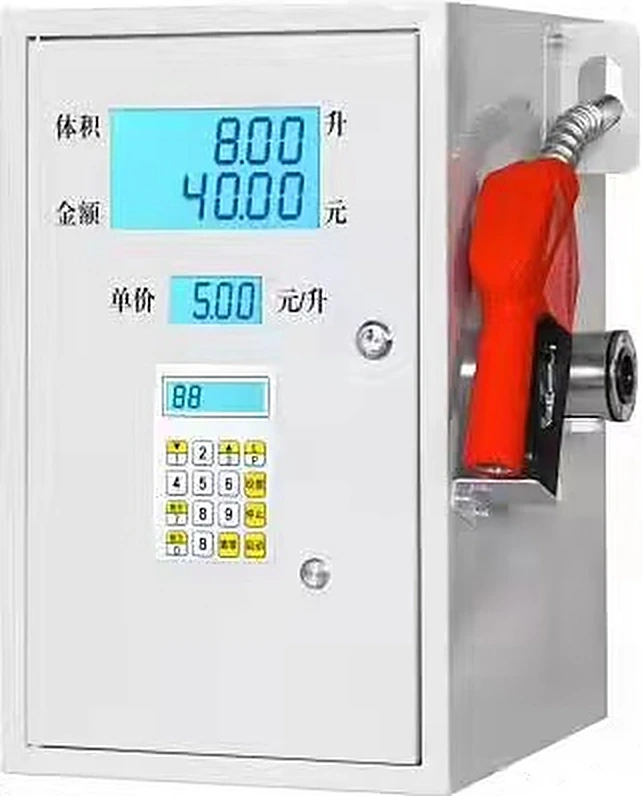

Four truck-mounted dispenser configurations built around the same single-gun layout. DT-TM1 and DT-TM2 share the compact footprint; DT-TM3 is the microwave-appliance styled variant; DT-TM4 is the high-flow integrated model with on-board hose reel.

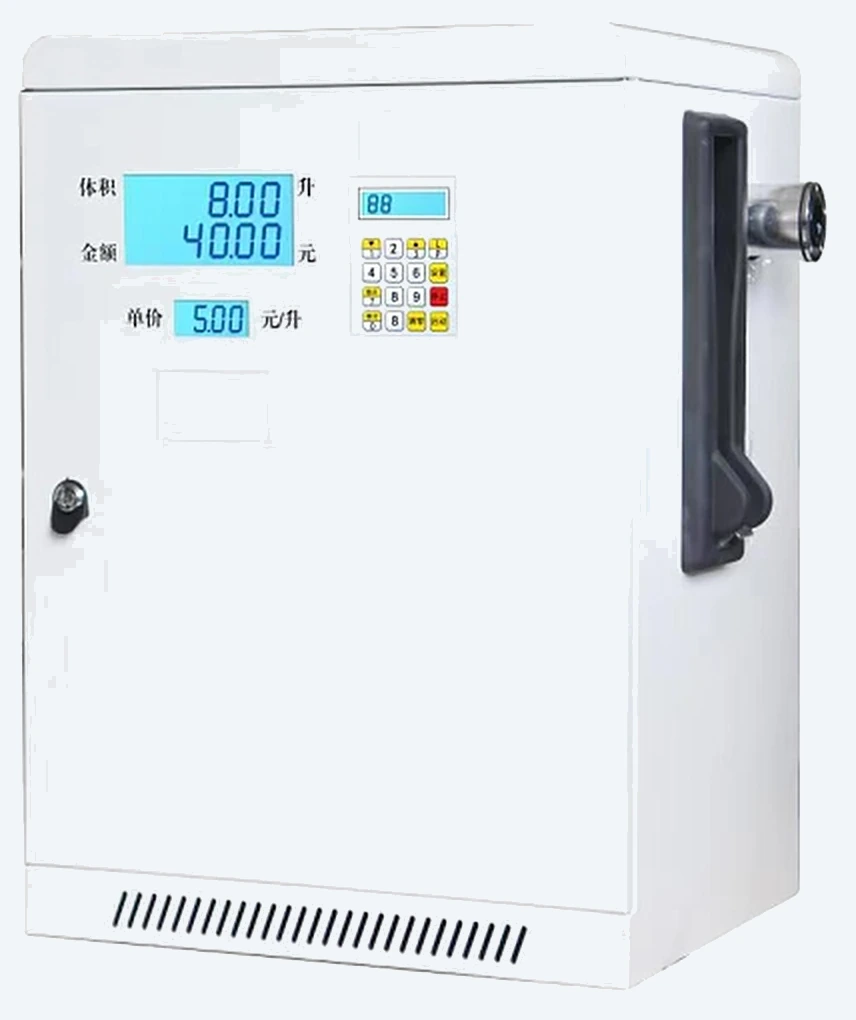

610 × 420 × 760 mm frame
Compact white cabinet with a right-mounted nozzle and electronic display. Wide voltage input (AC 220/380 V) suits fixed sites and mobile rigs alike.
| Dimension | 610 × 420 × 760 mm |
| Accuracy | ±0.3% |
| Flow range | 10–80 L/min |
| Motor power | 750–1100 W |
| Voltage | AC 220V / 380V |
| Pump & flow meter | Combination pump, 50 type |
| Application | Diesel, kerosene, gasoline |
410 × 390 × 550 mm frame
Deceleration / oil pump with a 65 type flow meter. Multi-voltage input suits on-truck and remote-site deployment.
| Dimension | 410 × 390 × 550 mm |
| Accuracy | ±0.3% |
| Flow range | 10–80 L/min |
| Motor power | 550–750 W |
| Voltage | DC 12V / 24V / AC 220V |
| Pump & flow meter | Deceleration pump / oil pump, 65 type |
| Application | Diesel oil |

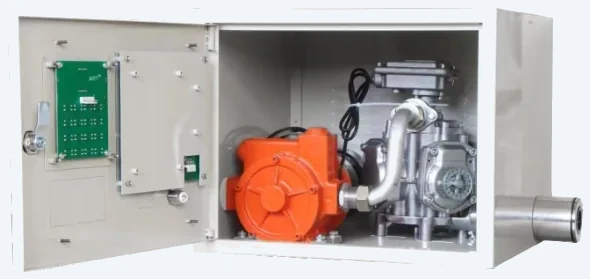

500 × 390 × 400 mm frame
Door opens to show the integrated pump and 65 type flow meter. The lowest cabinet height in the range, for tight truck or wall-mount installs.
| Dimension | 500 × 390 × 400 mm |
| Accuracy | ±0.3% |
| Flow range | 10–80 L/min |
| Motor power | 550–750 W |
| Voltage | DC 12V / 24V / AC 220V |
| Pump & flow meter | Deceleration pump / oil pump, 65 type |
| Application | Diesel oil |
820 × 460 × 615 mm frame
On-board spring-retraction hose reel in a heavy-duty blue frame. Built for fuel-delivery trucks that need a self-contained high-throughput unit.
| Dimension | 820 × 460 × 615 mm / 750 × 460 × 610 mm |
| Accuracy | ±0.3% |
| Flow range | 10–80 L/min |
| Voltage | DC 12V / 24V / AC 220V |
| Pump & flow meter | Deceleration pump / oil pump, 65 type |
| Application | Diesel oil |
Four self-contained transfer kits built around a spring-retraction hose reel. Pump, flow meter, dispense nozzle and clear hose — plug in and refuel anywhere there is mains power. DT-JP01 through DT-JP04 share the same ±1% accuracy and 20–80 L/min flow range, differing by frame style and pump type.

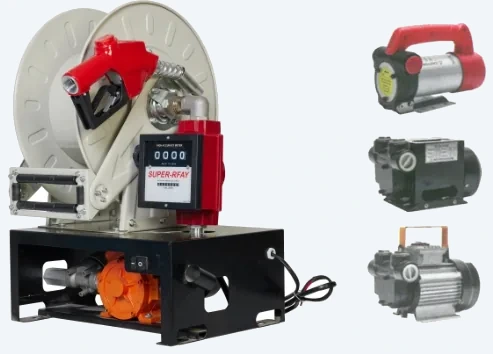

560 × 500 × 750 mm · diesel only
Hose reel set with an in-line flow meter and dispense nozzle. Diesel-only duty, on the largest frame in the range.
| Dimension | 560 × 500 × 750 mm |
| Accuracy | ±1% |
| Flow range | 20–80 L/min |
| Caliber | 3/4" or 1" |
| Voltage | AC 220V, DC 12/24V |
| Application | Diesel oil |

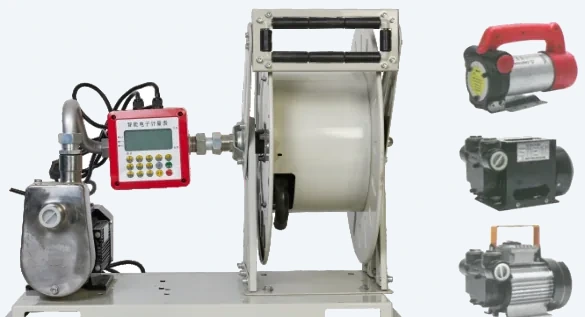

750 × 460 × 610 mm · diesel, chemical
Hose reel set with an in-line flow meter and dispense nozzle. Rated for diesel and chemical transfer.
| Dimension | 750 × 460 × 610 mm |
| Accuracy | ±1% |
| Flow range | 20–80 L/min |
| Caliber | 3/4" or 1" |
| Voltage | AC 220V, DC 12/24V |
| Application | Diesel, chemical |
520 × 460 × 530 mm · diesel, chemical
Hose reel set with an in-line flow meter and dispense nozzle. Rated for diesel and chemical transfer.
| Dimension | 520 × 460 × 530 mm |
| Accuracy | ±1% |
| Flow range | 20–80 L/min |
| Caliber | 3/4" or 1" |
| Voltage | AC 220V, DC 12/24V |
| Application | Diesel, chemical |

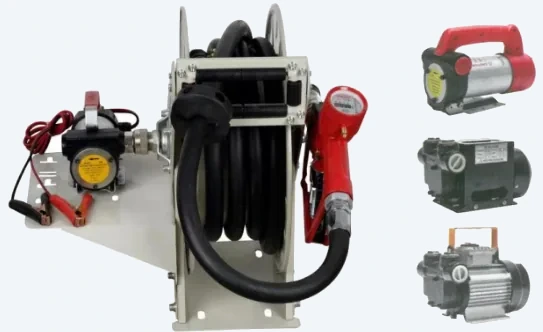

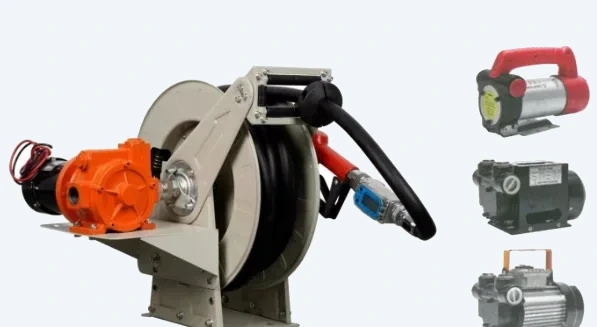

520 × 460 × 530 mm · diesel, chemical
Hose reel set with an in-line flow meter and dispense nozzle. Rated for diesel and chemical transfer.
| Dimension | 520 × 460 × 530 mm |
| Accuracy | ±1% |
| Flow range | 20–80 L/min |
| Caliber | 3/4" or 1" |
| Voltage | AC 220V, DC 12/24V |
| Application | Diesel, chemical |
Five pre-assembled pump sets in a compact red frame, each with electric pump, flow meter and dispense nozzle. Same 230 × 350 × 300 mm footprint; differ by register type, flow range and duty rating. DT-PS-A1 through DT-PS-A5 share the same ±1% accuracy.

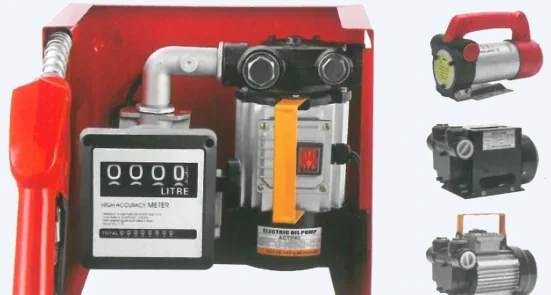

5–50 L/min · 550 W
Entry-level model. 4-digit mechanical litre register, no electronics, for sites that only need a running total.
| Dimension | 230 × 350 × 300 mm |
| Accuracy | ±1% |
| Flow range | 5–50 L/min |
| Motor power | 550 W |
| Voltage | AC 220V, DC 12/24V |
| Application | Diesel, kerosene |

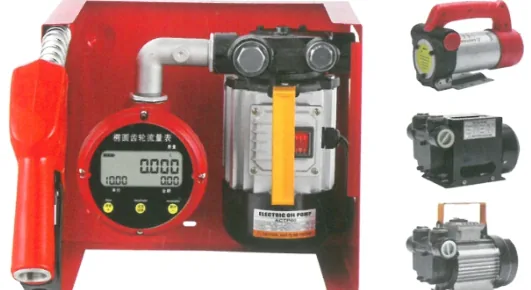

5–50 L/min · 550 W
Same body and flow range as A1, but with a round electronic register for clearer readout and easier calibration.
| Dimension | 230 × 350 × 300 mm |
| Accuracy | ±1% |
| Flow range | 5–50 L/min |
| Motor power | 550 W |
| Voltage | AC 220V, DC 12/24V |
| Application | Diesel, kerosene |

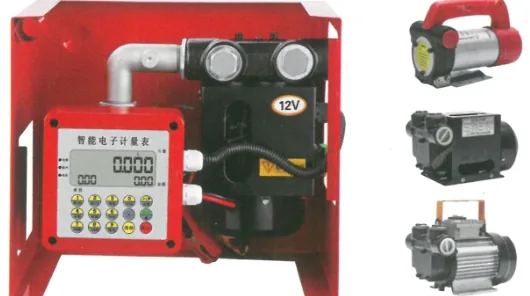

45 L/min · 550 W
Rectangular register with a keypad lets the operator pre-set the dispense volume and shut off automatically at the target.
| Dimension | 230 × 350 × 300 mm |
| Accuracy | ±1% |
| Flow range | 45 L/min |
| Motor power | 550 W |
| Voltage | AC 220V, DC 12/24V |
| Application | Diesel, kerosene |

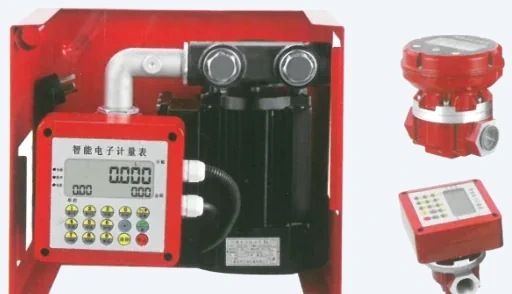

30–40 L/min · 550 W
Preset register plus an explosion-proof enclosure and pulser for hazardous-area fuelling points. Adds gasoline to the fluid list.
| Dimension | 230 × 350 × 300 mm |
| Accuracy | ±1% |
| Flow range | 30–40 L/min |
| Motor power | 550 W |
| Voltage | DC 12/24V |
| Application | Diesel, kerosene, gasoline |
60–70 L/min · 600 W
Larger impeller and a 600 W motor push the flow rate up to 60–70 L/min for truck and heavy-equipment refuelling.
| Dimension | 230 × 350 × 300 mm |
| Accuracy | ±1% |
| Flow range | 60–70 L/min |
| Motor power | 600 W |
| Voltage | AC 220V, DC 12/24V |
| Application | Diesel, kerosene |
Self-contained refuelling trucks with hose reel — deliver diesel to construction sites, mines and farms.
On-truck pre-check before vehicles leave the yard — integrate with depot fuelling data.
Bring fuel to where pipeline fuel is not available.
Heavy-duty up to 8 nozzles, V/G/S pump options.
Mid-tier up to 8 nozzles, V/G/S pump options.
Compact 1–2 nozzle dispensers for depots and tank farms.
Dispenser with a built-in LED screen for pump-side media.
Proven cabinets, three quality tiers (Economical / Speed / Luxury).
Tell us your truck type, flow needs and cable length — we will size the right model and quote within 24–48 hours.
Request a quotation
