DT-L Series — Balanced Retail Fuel Dispensers

Mid-tier station dispensers for standard retail. Up to 8 nozzles with vane, gear or submersible pump options in a compact 600 mm cabinet.

DT-G Series — High Performance DT-L Series — Balanced Design DT-T Series — Compact for Tanks DT-M Series — Multimedia LED DT-A Series — Entry Classic Classic Series — Cost-Effective DT-HF Series — High Flow Rate Truck-Mounted Dispensers
One Platform, Four Widths

Choose Your DT-L

The DT-L shares its electronic head and Ex-proof internals with the DT-G, but sits in a slimmer 600 mm-deep cabinet. Three nozzles up to eight, each width matched to a different island footprint.

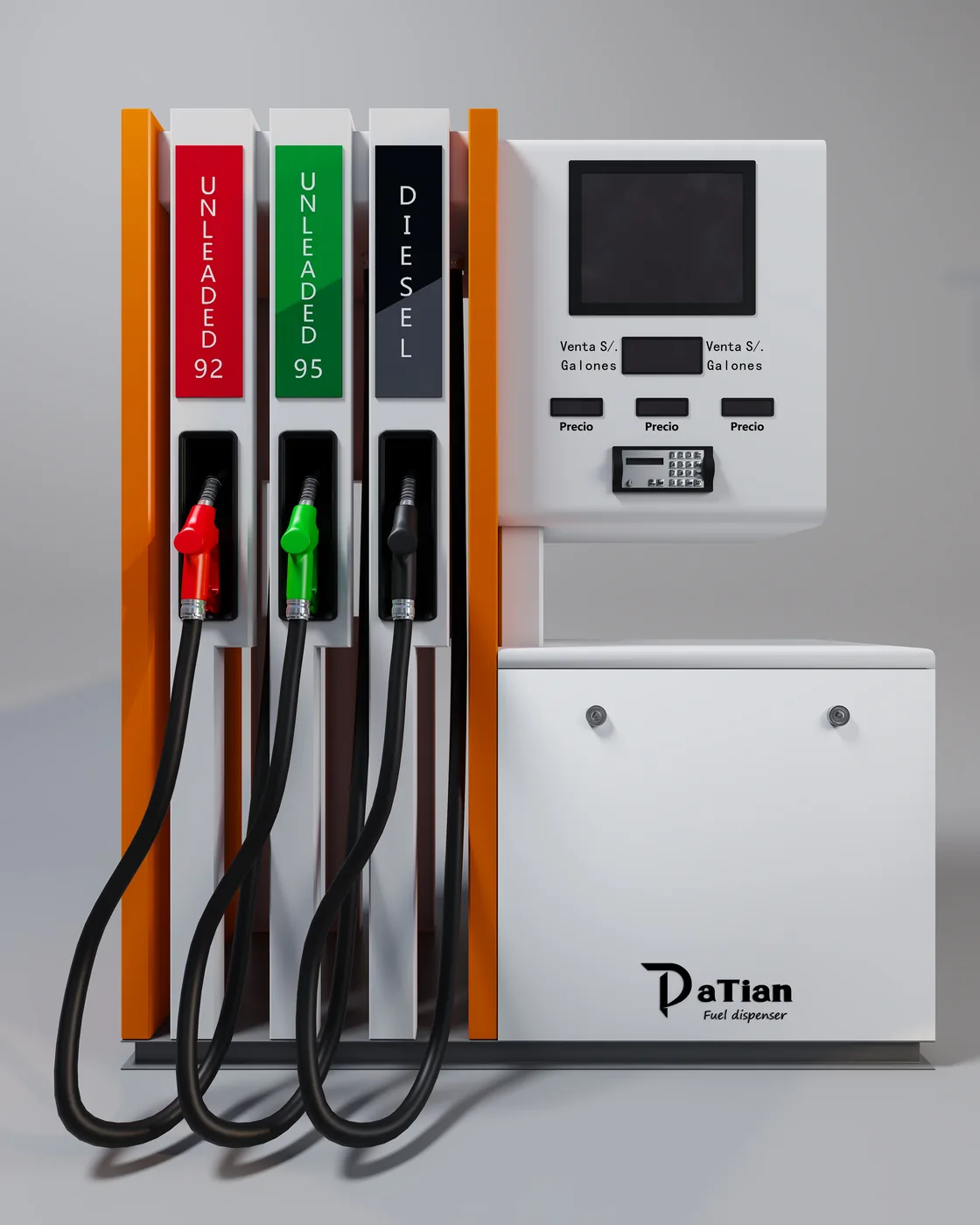

DT-L series fuel dispenser, three-nozzle cabinet with DaTian branding

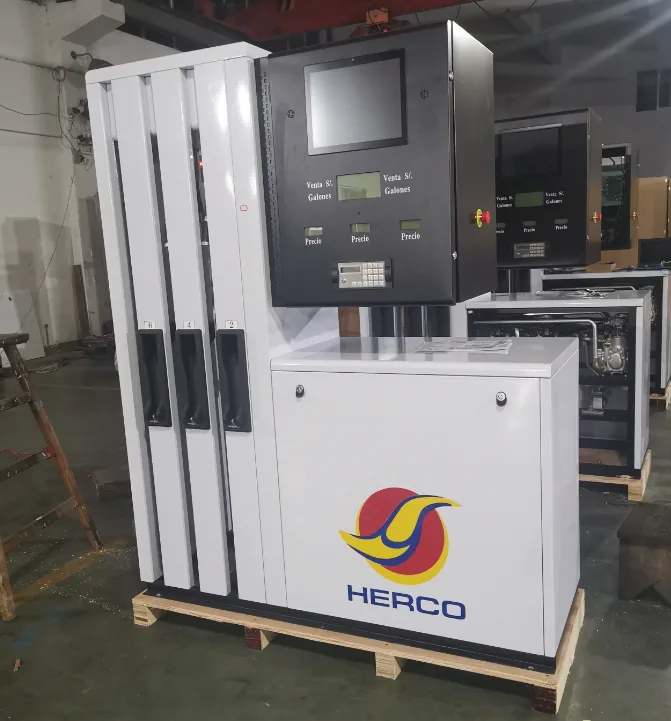

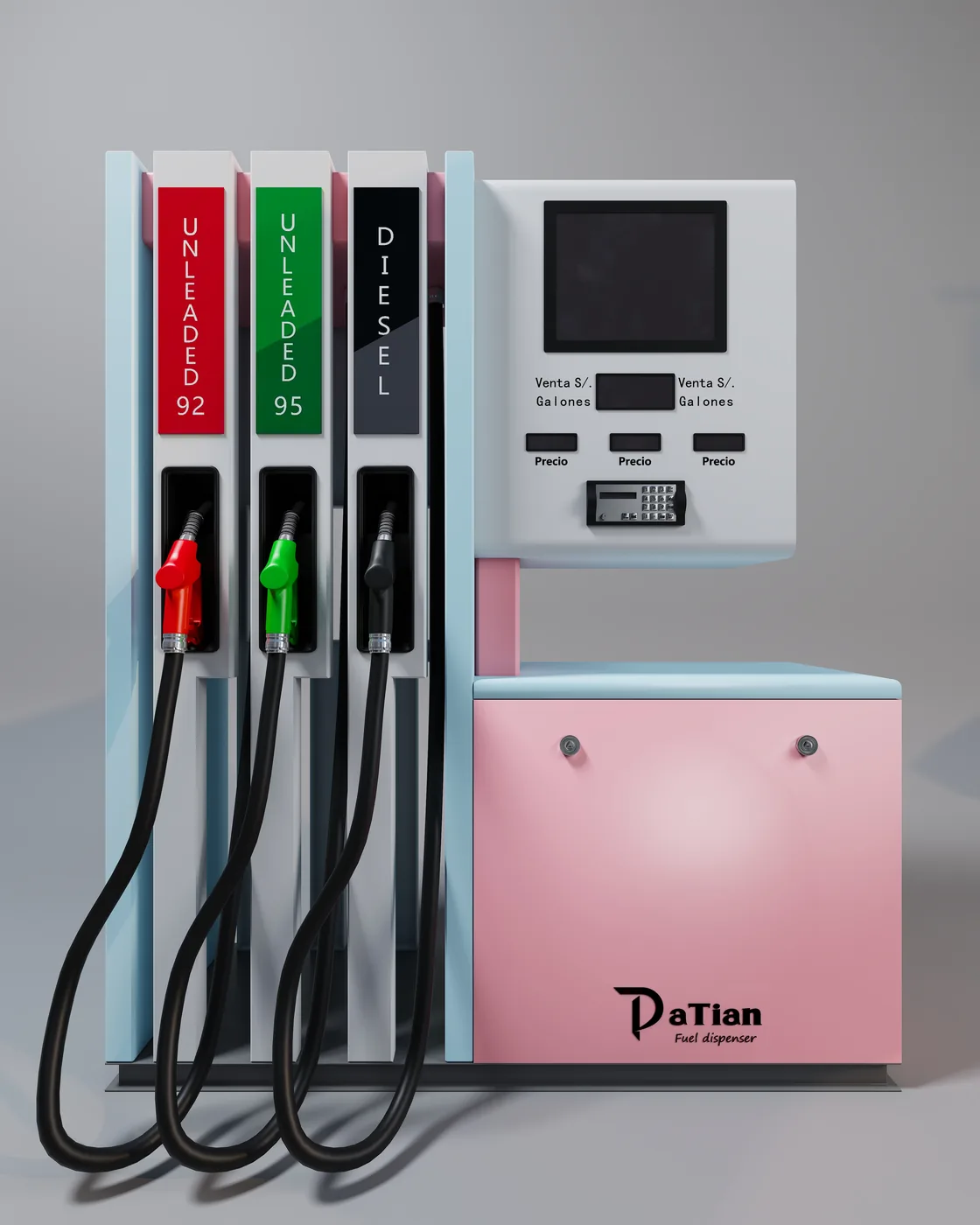

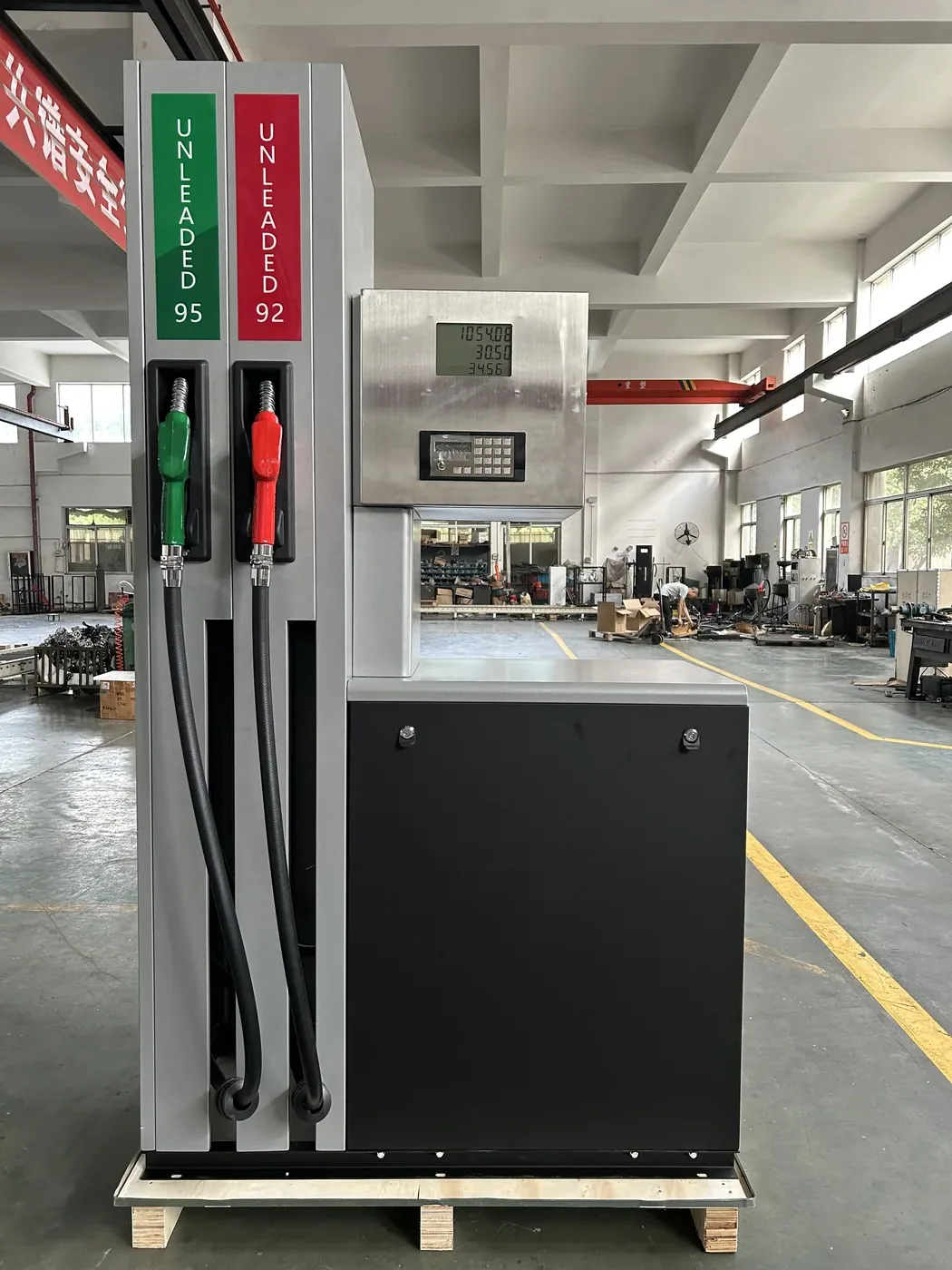

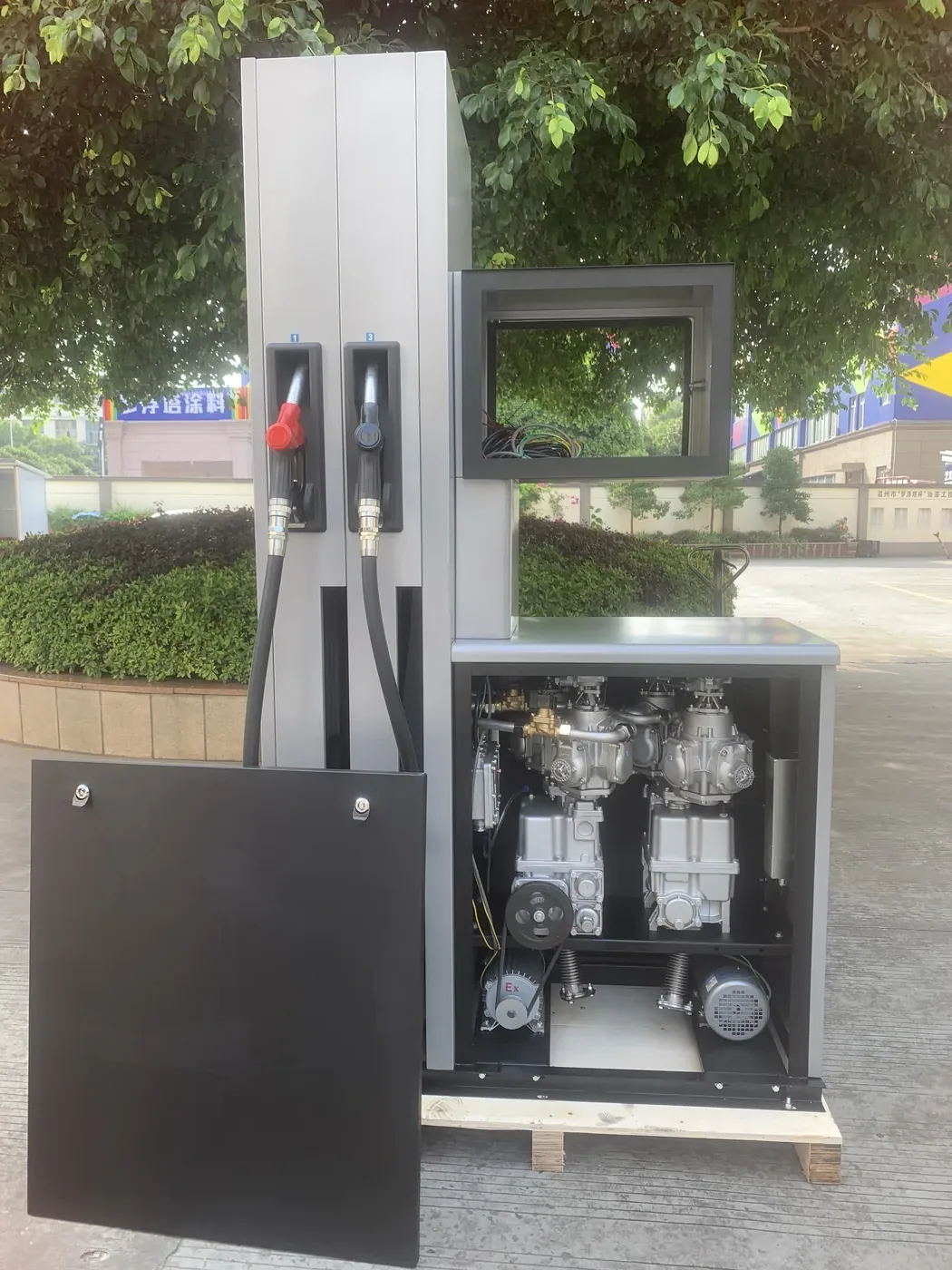

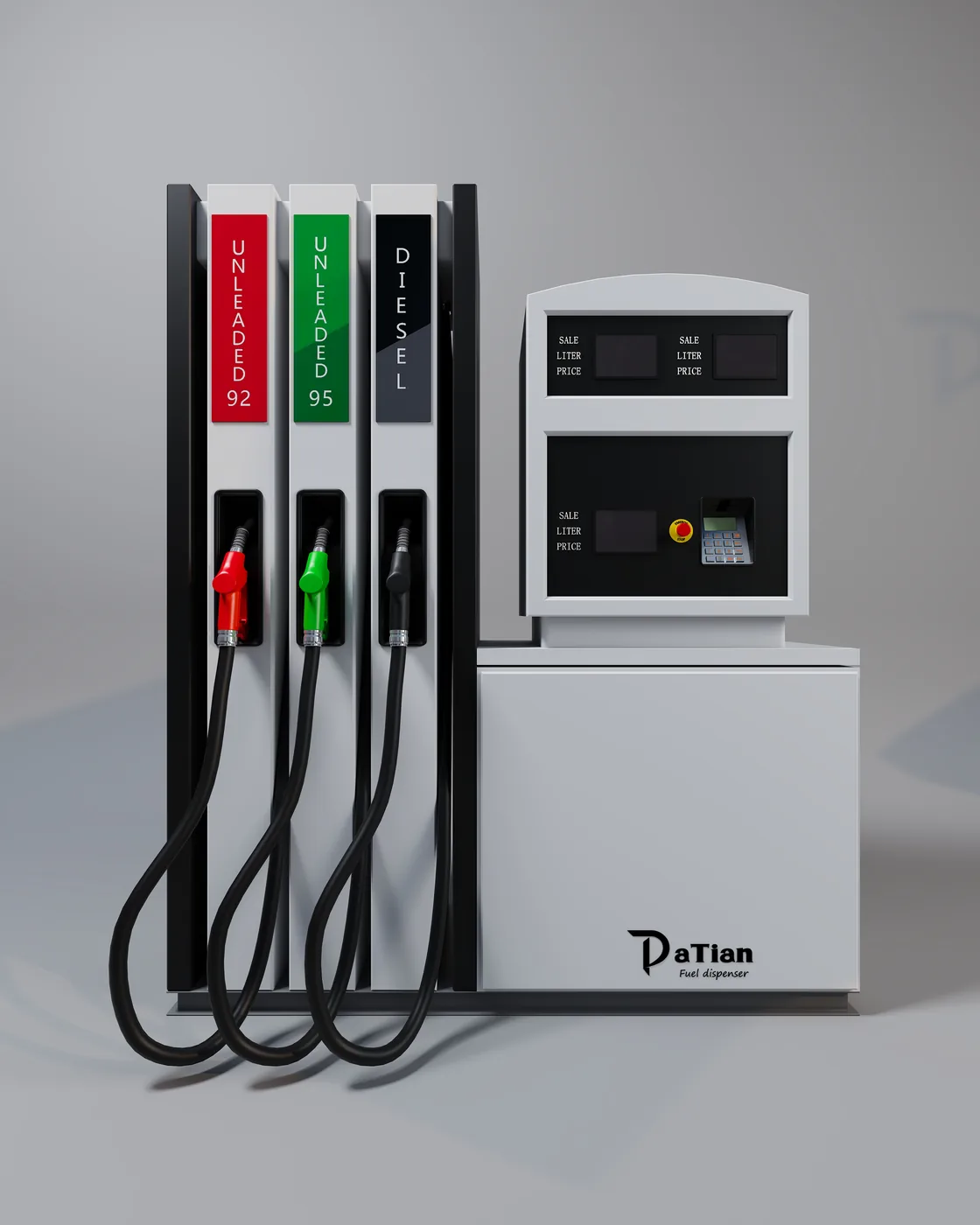

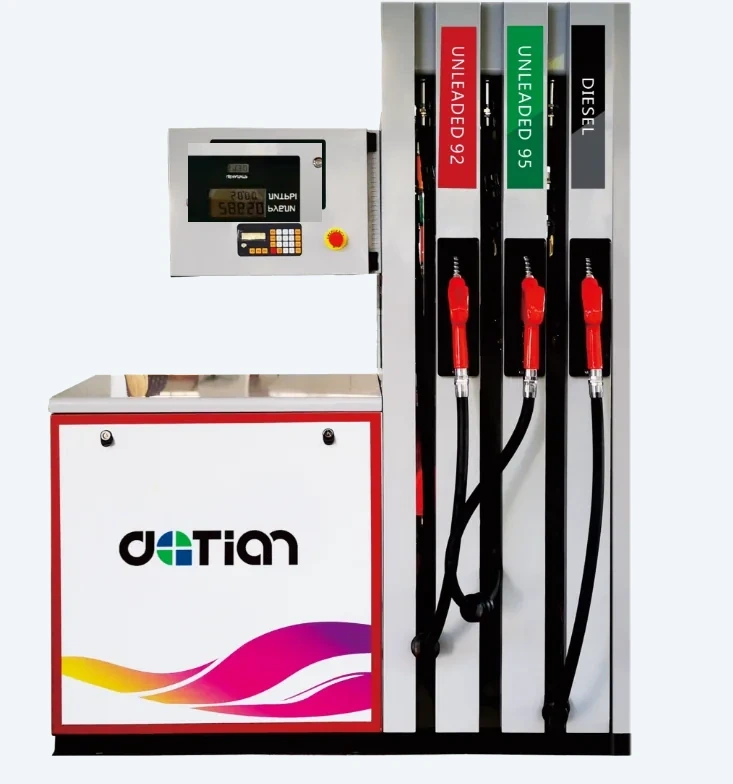

DT-L series fuel dispenser, three-nozzle cabinet with DaTian branding (default view) DT-L series compact dispenser, second cabinet view DT-L series 3D render with pink and blue cabinet DT-L series dispenser at customer site with HERCO branding DT-L series two-nozzle dispenser with side panel open, showing pumps and motor DT-L series two-nozzle dispenser staged in the workshop DT-L series 3D render with colorful DaTian wave branding, three nozzles
2–3 Pump · 3–4 Nozzle

DT-L33113 & DT-L24222

The short DT-L. At 1300 mm wide it is the cabinet we ship most often to independent operators and rural stations — small enough to slip between existing canopy columns, big enough for three or four products.

  • 3 pumps · 3 nozzles (33113) or 2 pumps · 4 nozzles (24222)
  • Single display / keyboard on 33113 · twin on 24222
  • Net 1300 × 600 × 2100 mm for the 33113 cabinet
  • Vane (V), gear (G) or submersible (S) hydraulics
  • Uses the same Bennett / Tatsuno / Tokheim pattern spares as the DT-G
DT-L 33113 24222

Best for tight island footprints, rural stations and independent operators replacing a like-for-like cabinet.

Request a Quote
ModelConfigurationNet Size (mm)Package Size (mm)
DT-L33113V/G/S3 pump · 3 nozzle · 1 display · 1 keyboard1300 × 600 × 21001360 × 700 × 2220
DT-L24222V/G/S2 pump · 4 nozzle · 2 display · 2 keyboard1360 × 700 × 2220—
DT-L36226V/G/S3 pump · 6 nozzle · 2 display · 2 keyboard1650 × 600 × 21001710 × 700 × 2220
DT-L48228V/G/S4 pump · 8 nozzle · 2 display · 2 keyboard2150 × 600 × 21002210 × 700 × 2220

V = Vane pump · G = Gear pump · S = Submersible pump. The first four digits read pump – nozzle – display – keyboard; the fifth always repeats the nozzle count for legacy use. Every nozzle carries its own flow meter. More configurations available on request.

Choose Your Pump

Configuration Options

Pick the configuration that matches your site layout and duty cycle.

V: Vane Pump

Self-priming vane pump built into the dispenser cabinet. Up to 50 L/min with suction lift of about 4 m.

  • Suction lift: up to 4 m
  • Flow rate: up to 50 L/min
  • Quietest at the island

Best for retail without submersible

G: Gear Pump

Positive-displacement gear pump with stronger suction — up to 6 m lift and 90 L/min.

  • Suction lift: up to 6 m
  • Flow rate: up to 90 L/min
  • Higher duty cycle

Best for busy retail & small truck islands

S: STP

No pump unit inside the cabinet. Connects to a remote submersible turbine pump in the underground tank.

  • No dispenser-side pump
  • Pairs with our STP series
  • Lowest noise & energy use

Best for new builds with underground tank

Applications

Where It Fits

Standard Retail Stations

Mid-tier footprint with up to 8 nozzles per island; UL / ATEX certified components.

Fleet & Bus Depots

Multi-product fuelling with optional IC card reader and transaction logging.

Independent Operators

Cost-E-effective alternative to OEM cabinets, using the same Bennett / Tatsuno / Tokheim spare parts.
