DT-T Series — Compact Dispensers for Tanks & Depots

Smallest-footprint dispenser in our range. 1–2 nozzle cabinets designed for tank farms, depots and fuel-handling areas where wall-mount or compact floor-mount is needed.

DT-G Series — High Performance DT-L Series — Balanced Design DT-T Series — Compact for Tanks DT-M Series — Multimedia LED DT-A Series — Entry Classic Classic Series — Cost-Effective DT-HF Series — High Flow Rate Truck-Mounted Dispensers
Two Cabinet Sizes

DT-T1 or DT-T2

The smallest-footprint dispenser we build. DT-T1 carries one nozzle in a 670 mm cabinet; DT-T2 carries two in 1089 mm. Both run the same compact 5–80 L/min pump platform with vane (V) or gear (G) drive.

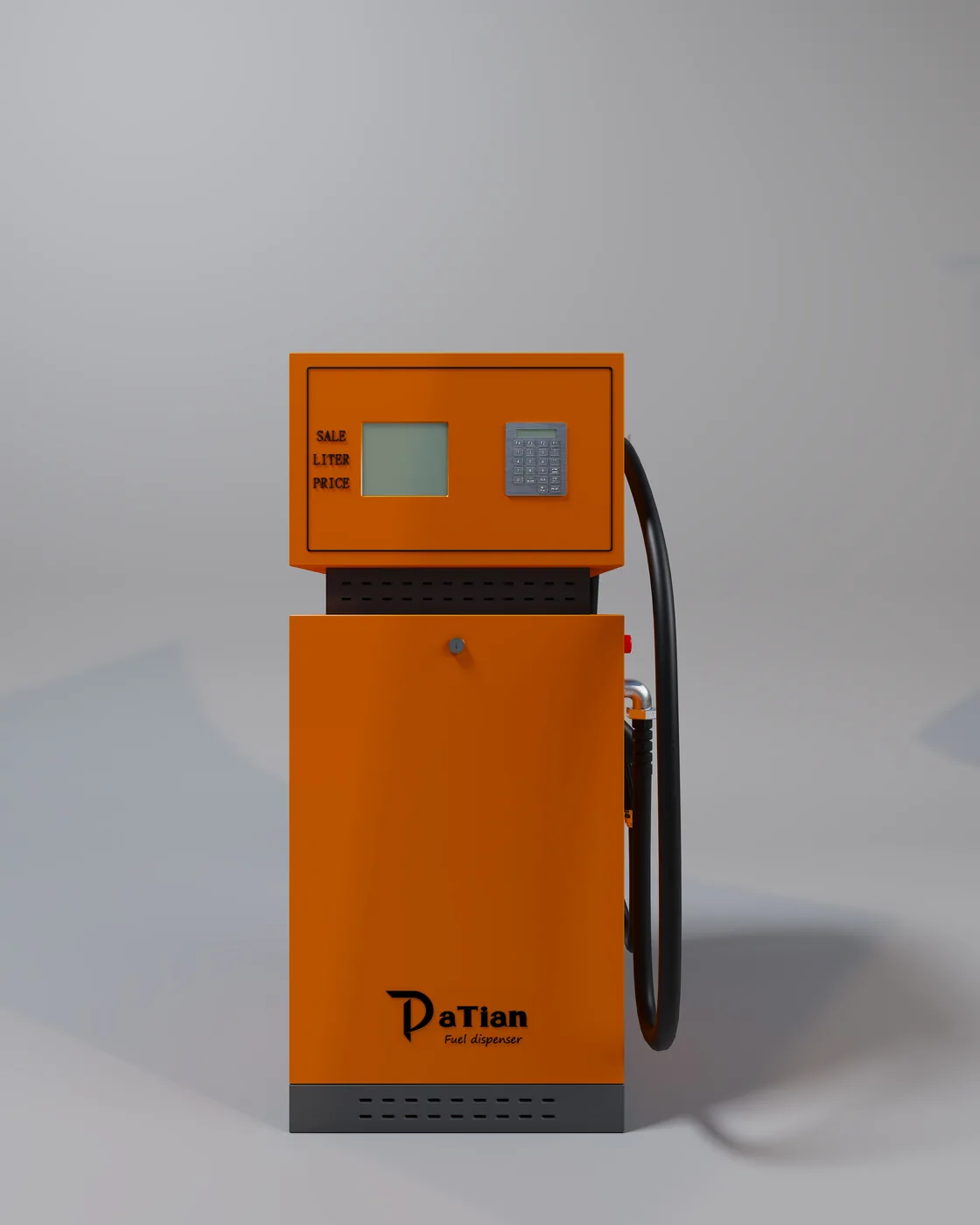

DT-T1 single-nozzle compact fuel dispenser, DaTian orange cabinet, front view

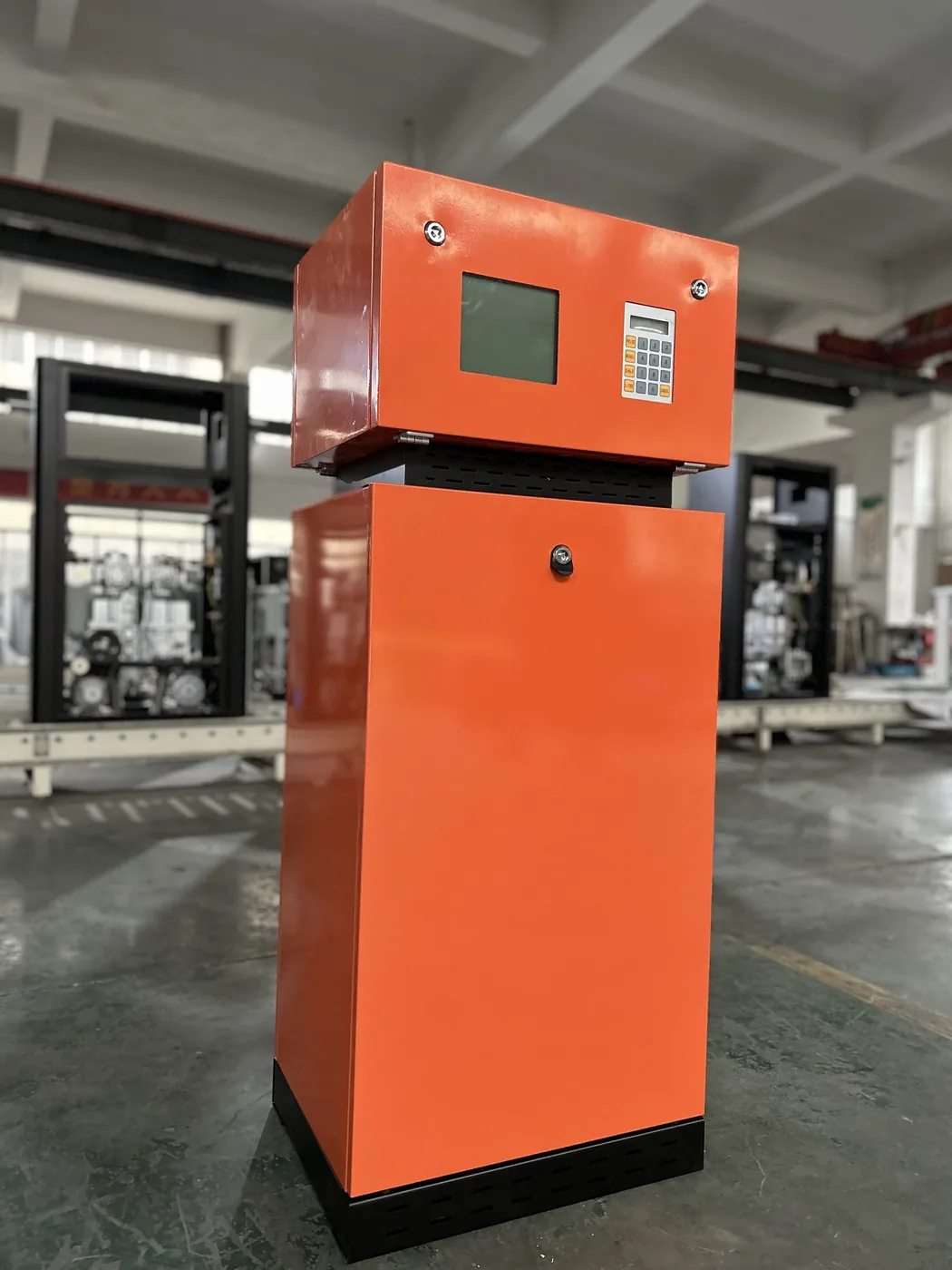

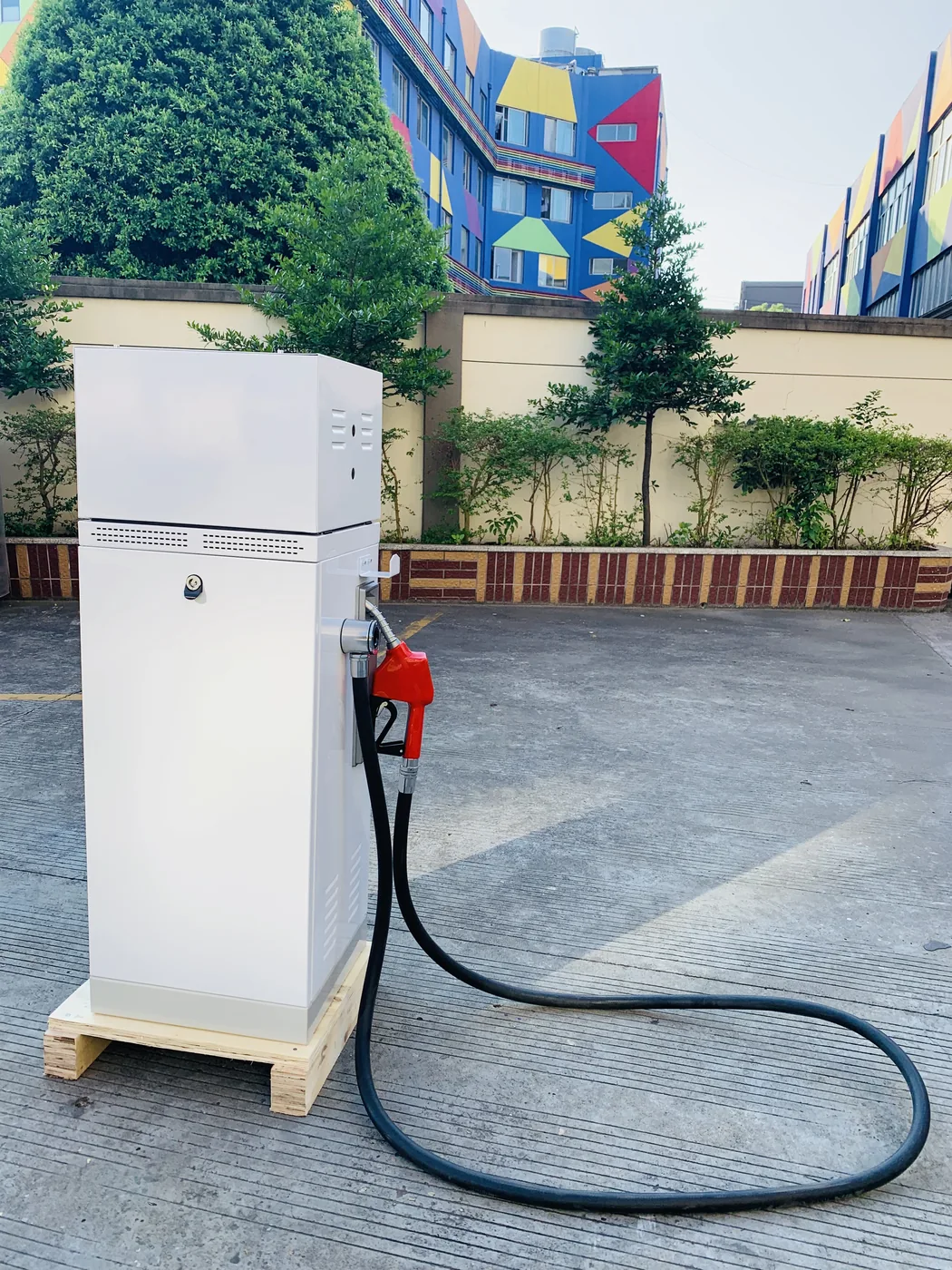

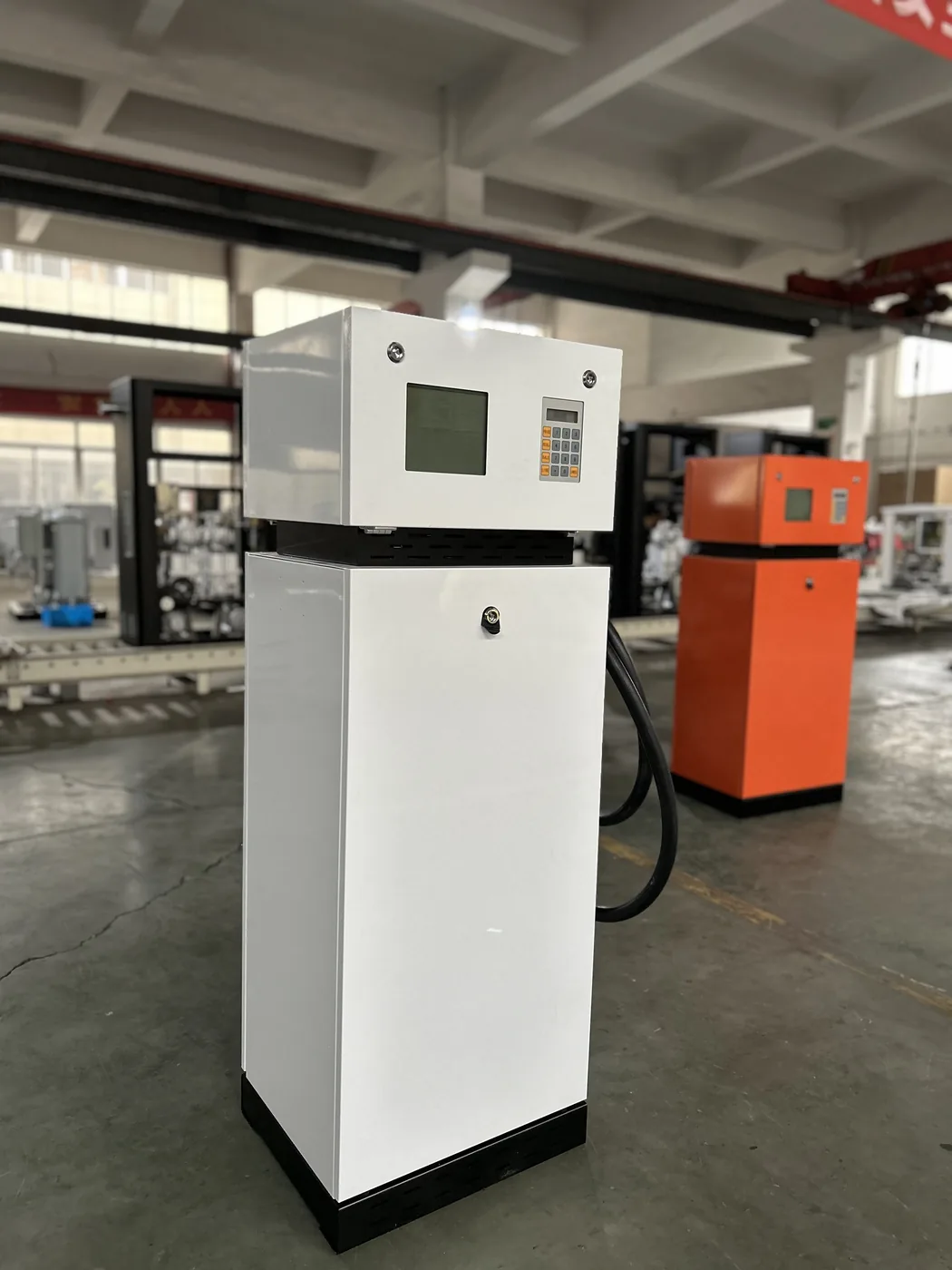

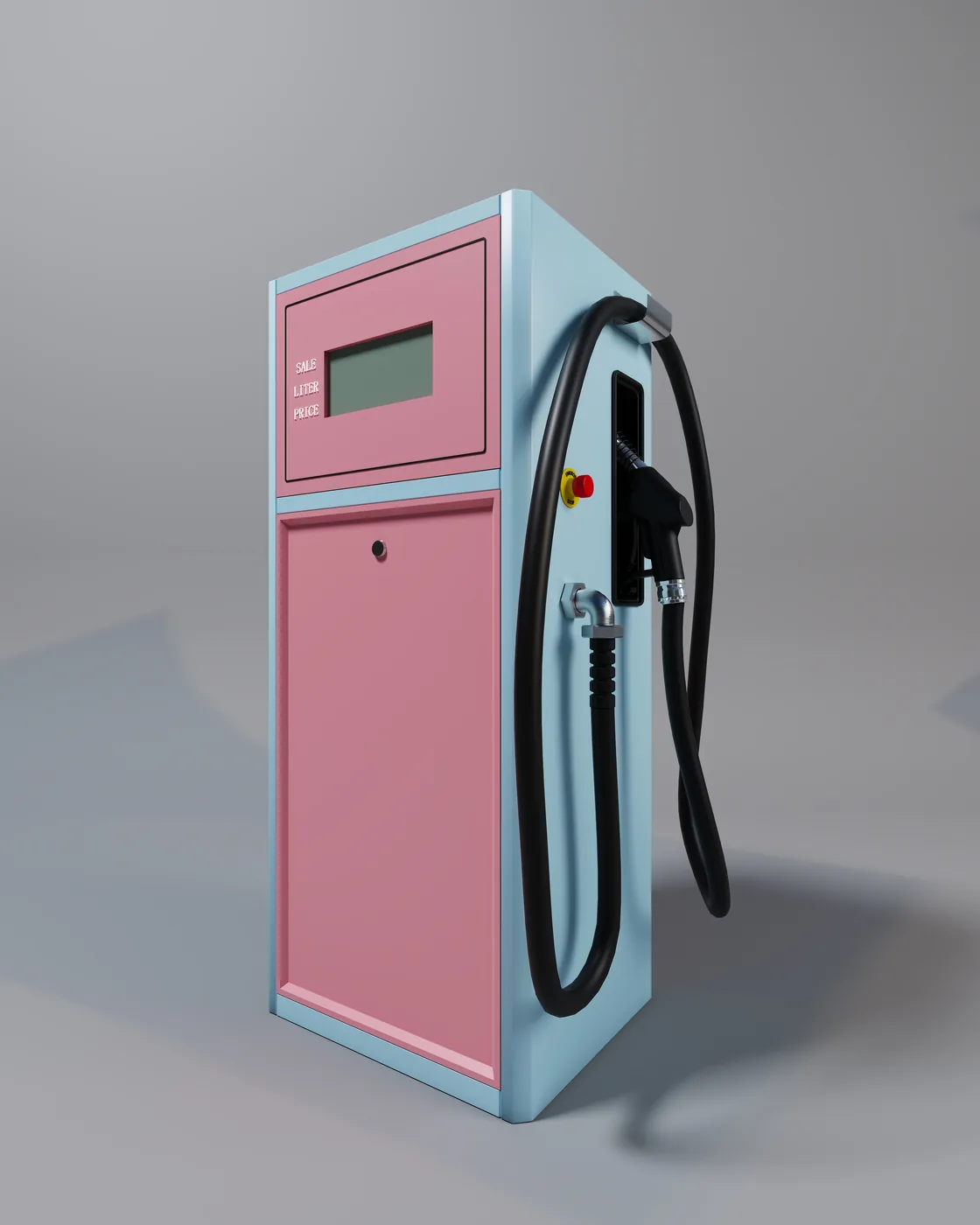

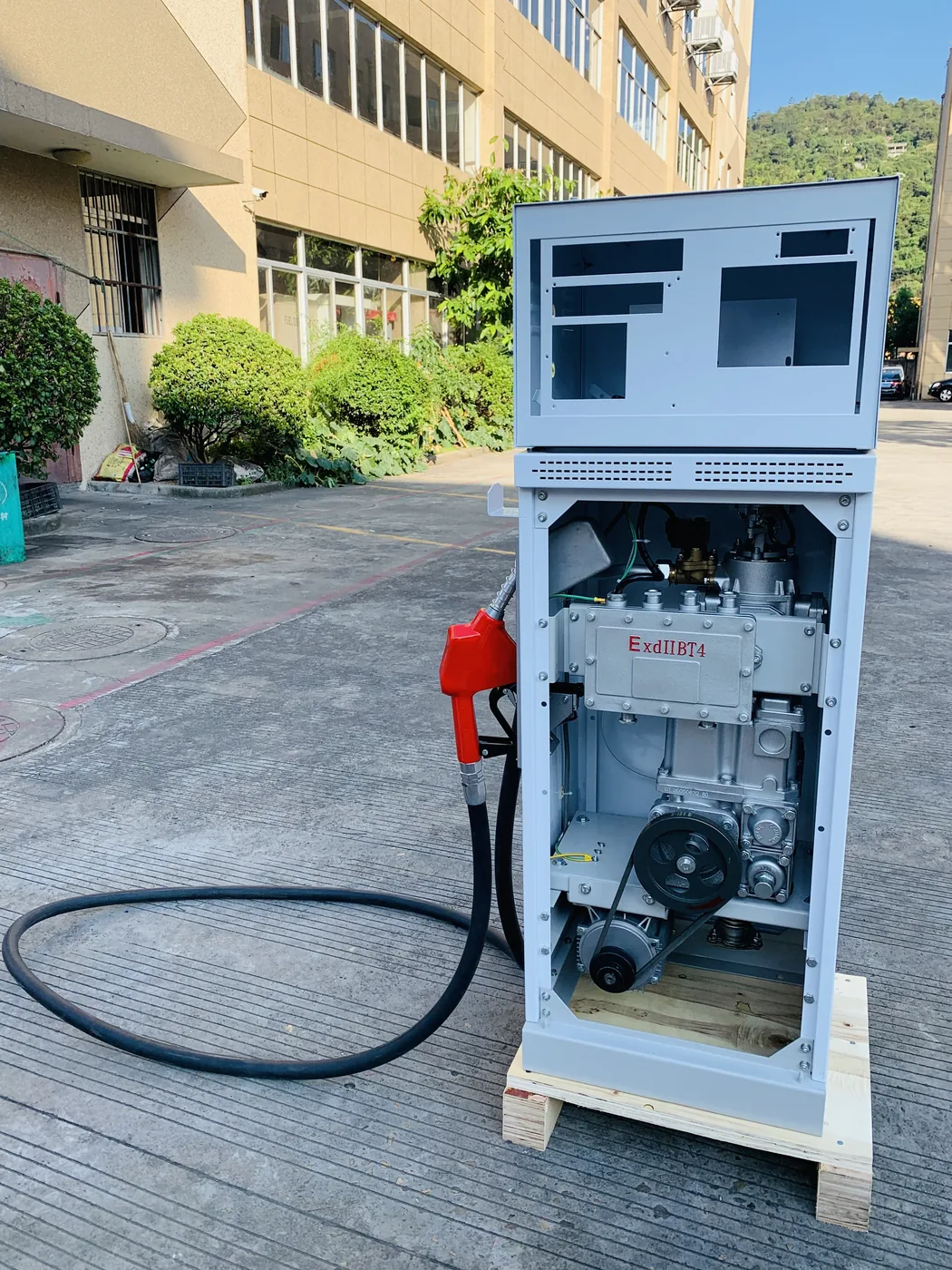

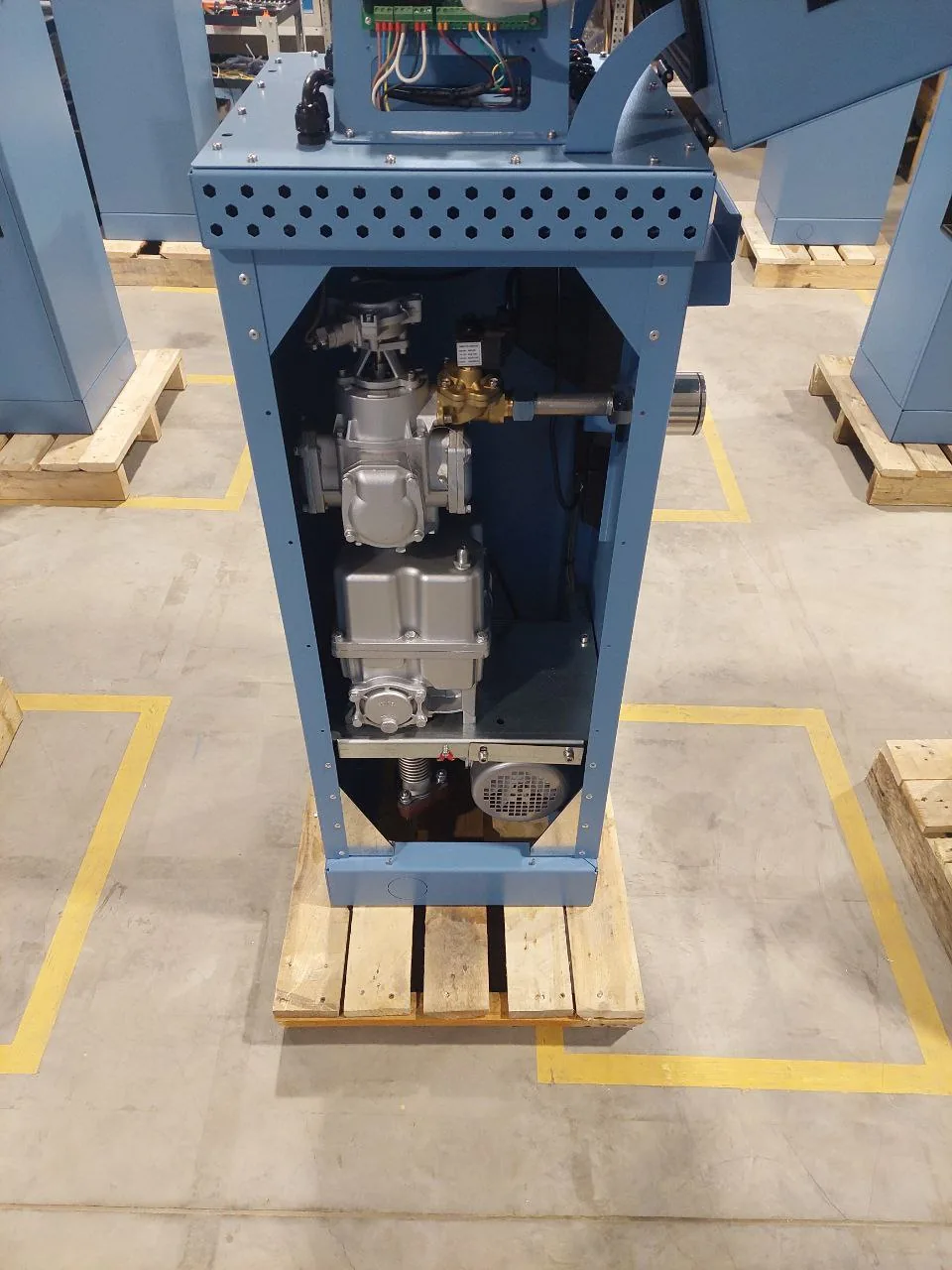

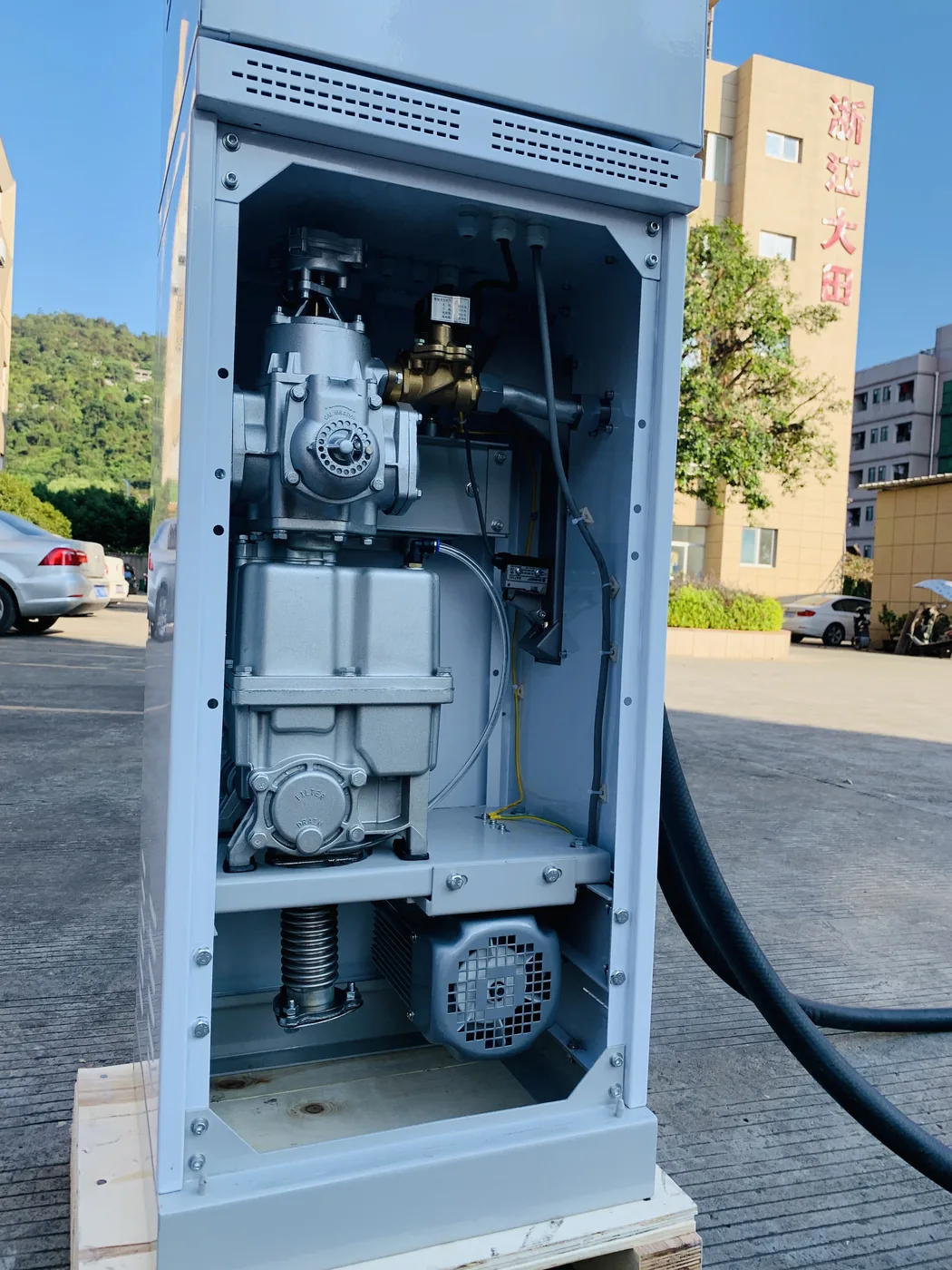

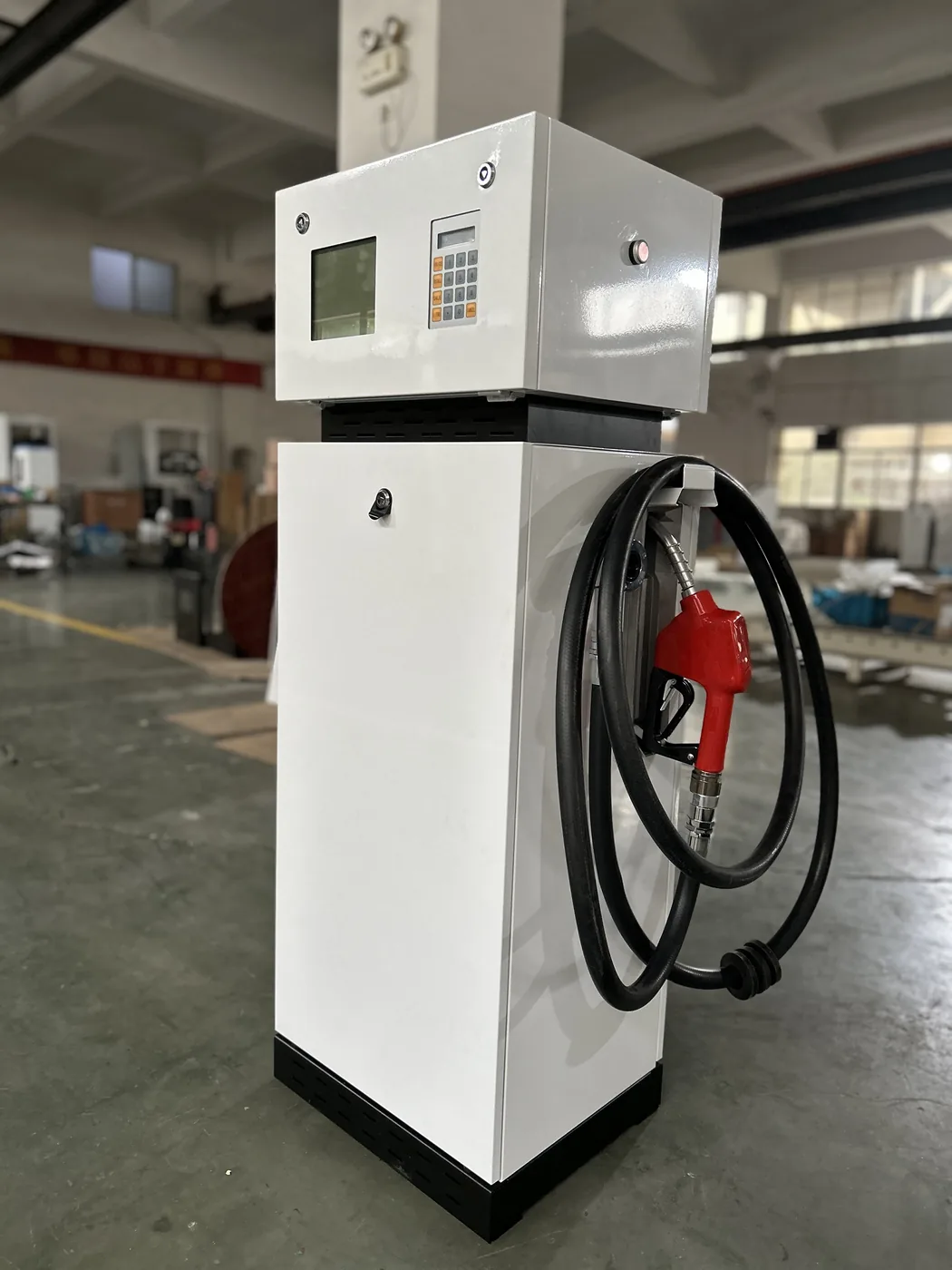

DT-T1 single-nozzle compact fuel dispenser, DaTian orange cabinet, front view (default view) DT-T1 single-nozzle dispenser, DaTian pink and white cabinet, 3D render DT-T1 single-nozzle compact dispenser, white cabinet, workshop side view with red nozzle DT-T1 single-nozzle dispenser, red cabinet, workshop three-quarter view DT-T1 single-nozzle dispenser installed at a customer site, white cabinet on wooden pallet DT-T1 single-nozzle dispenser, white cabinet with front panel open showing internal pump and motor DT-T1 single-nozzle dispenser, close-up of open cabinet showing hydraulic internals DT-T1 single-nozzle dispenser, close-up of internal pump and motor assembly DT-T1 dispensers staged in the workshop, white and red cabinets side by side DT-T compact series flow rate poster: CP5/J4 from 50 to 60 LPM, CP8/J6 from 100 to 120 LPM
DT-T1 · 1 Nozzle

Single Nozzle — Smallest Footprint

670 × 450 × 1350 mm. The DT-T1 was designed to sit where nothing else fits — inside a bund wall, alongside a containerised tank, on a workshop wall or in the corner of a depot bay.

  • Net 670 × 450 × 1350 mm — ships at 730 × 510 × 1450 mm
  • Flow rate 50 / 80 / 120 LPM
  • Floor or wall mount
  • Gasoline, diesel and kerosene versions
DT-T1 1111V 1111G

Best for single-outlet tank farms, containerised fuel stations and tight depot corners.

Request a Quote

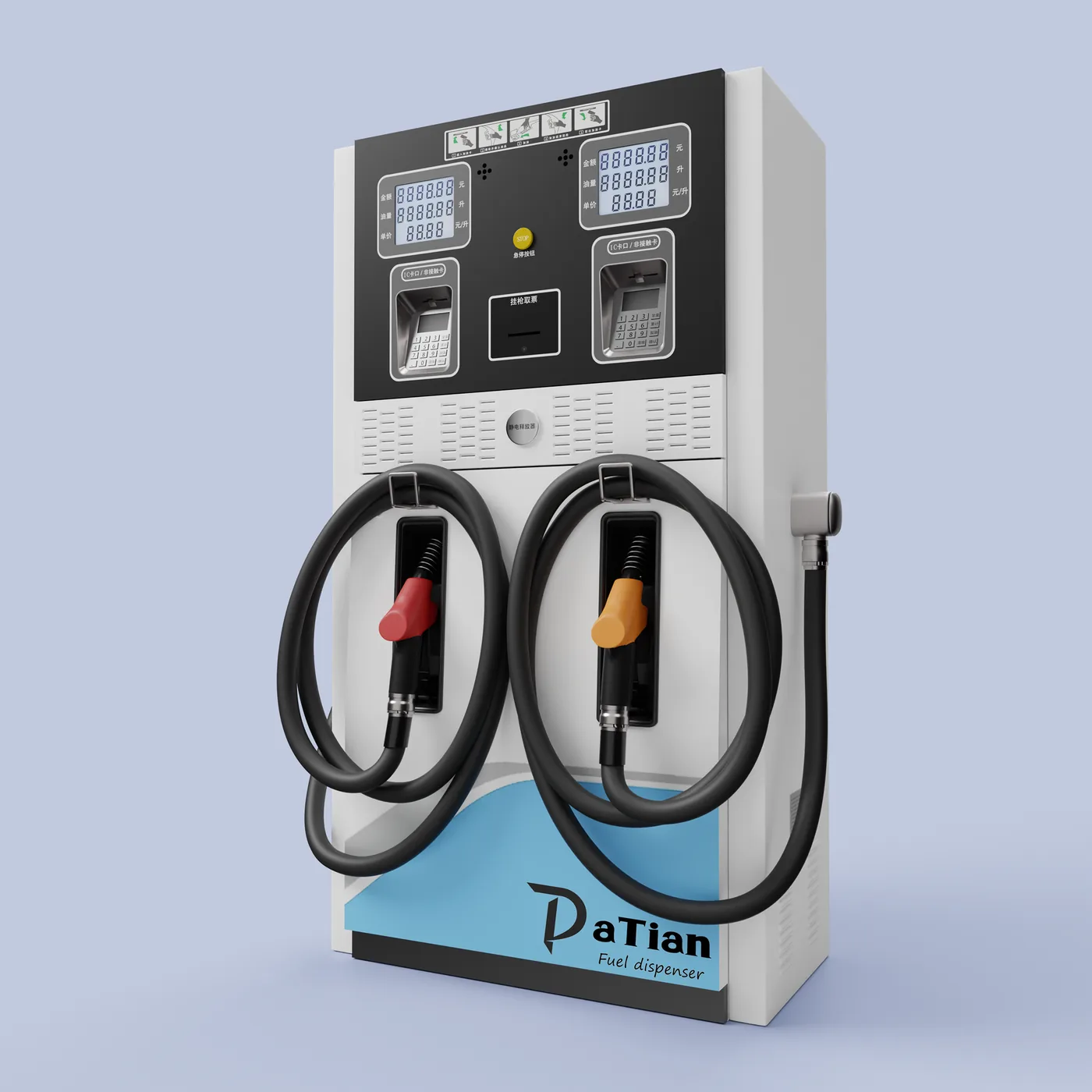

DT-T2 twin-nozzle compact fuel dispenser, DaTian 3D render, blue wave cabinet with two hoses

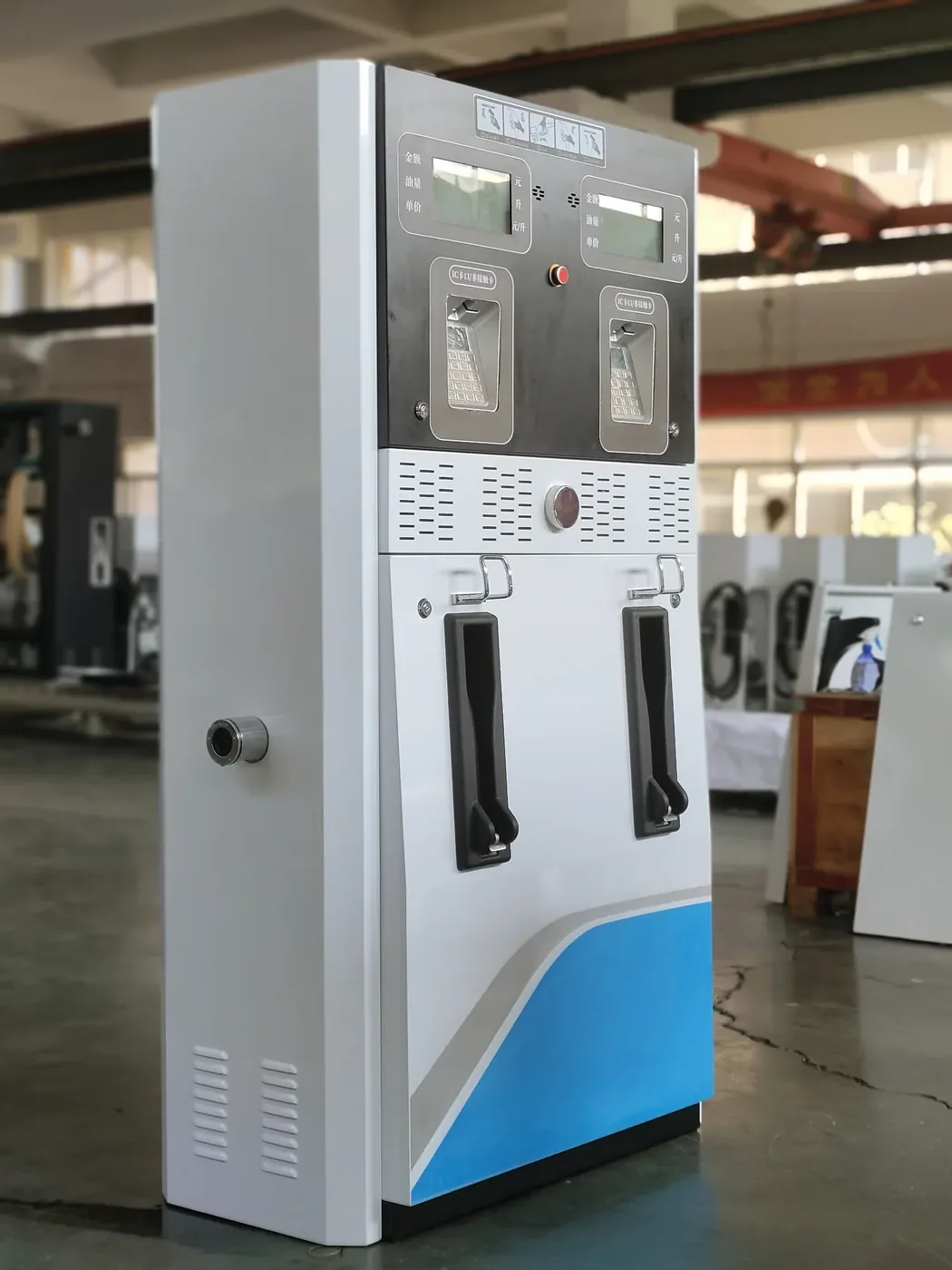

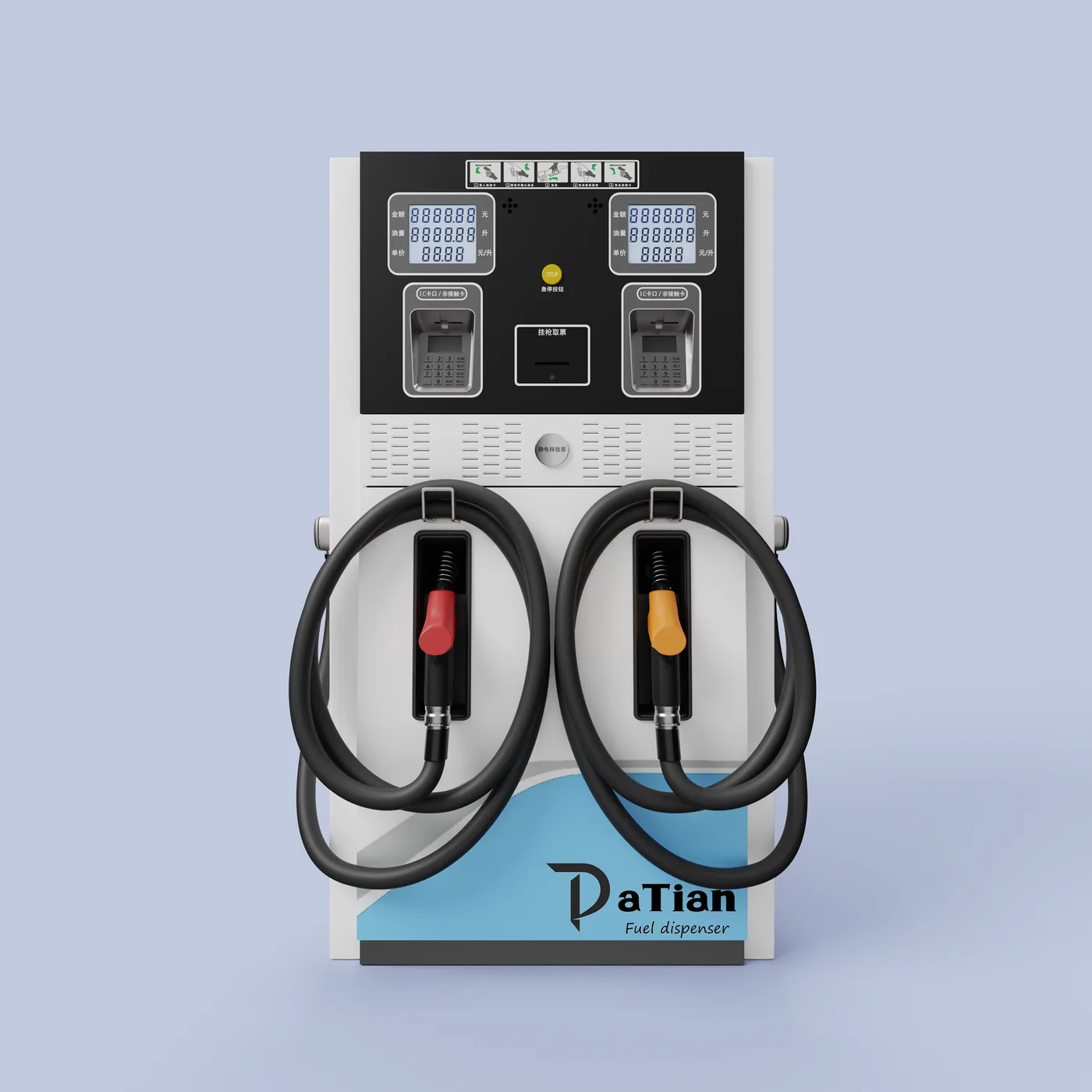

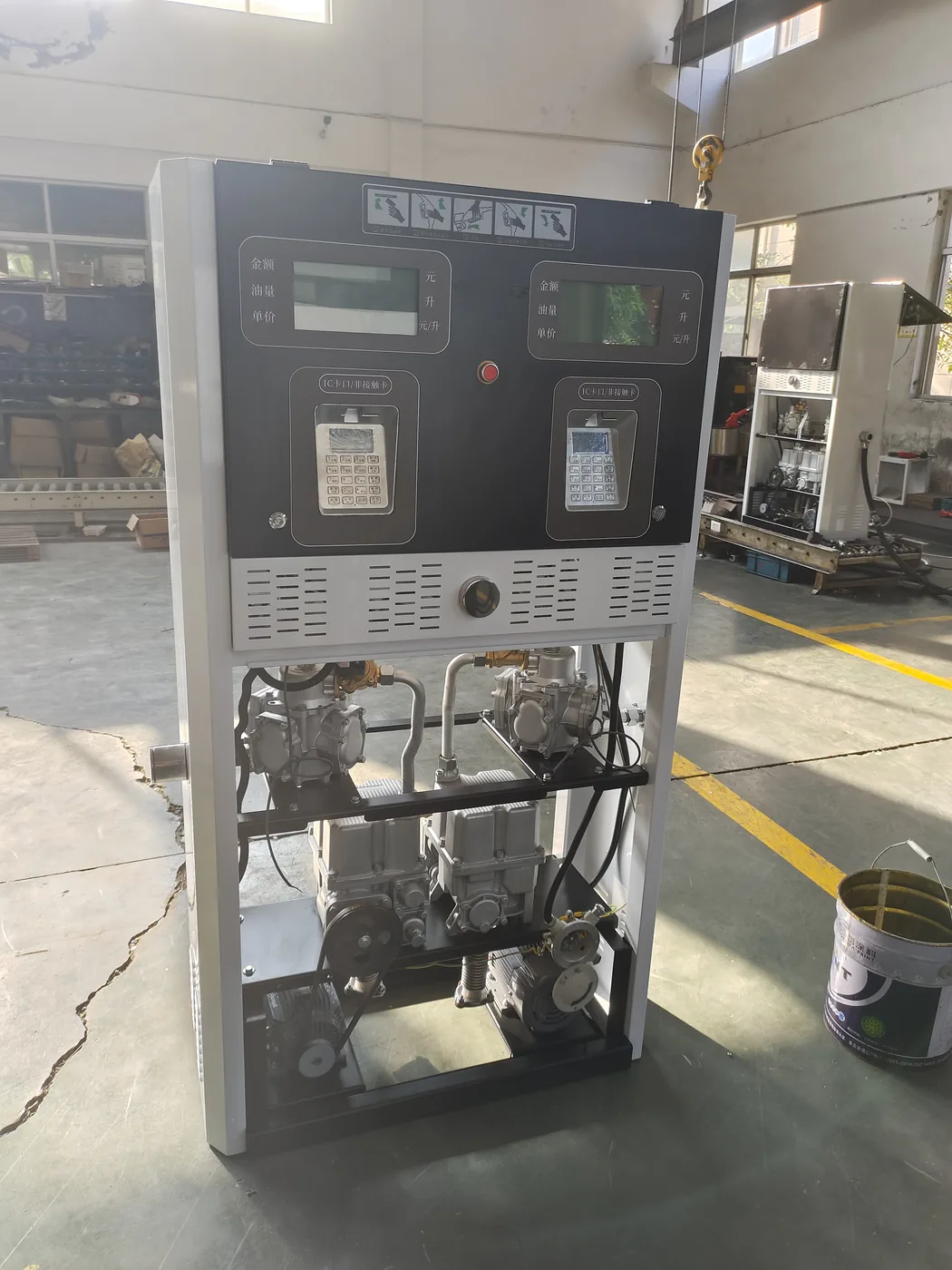

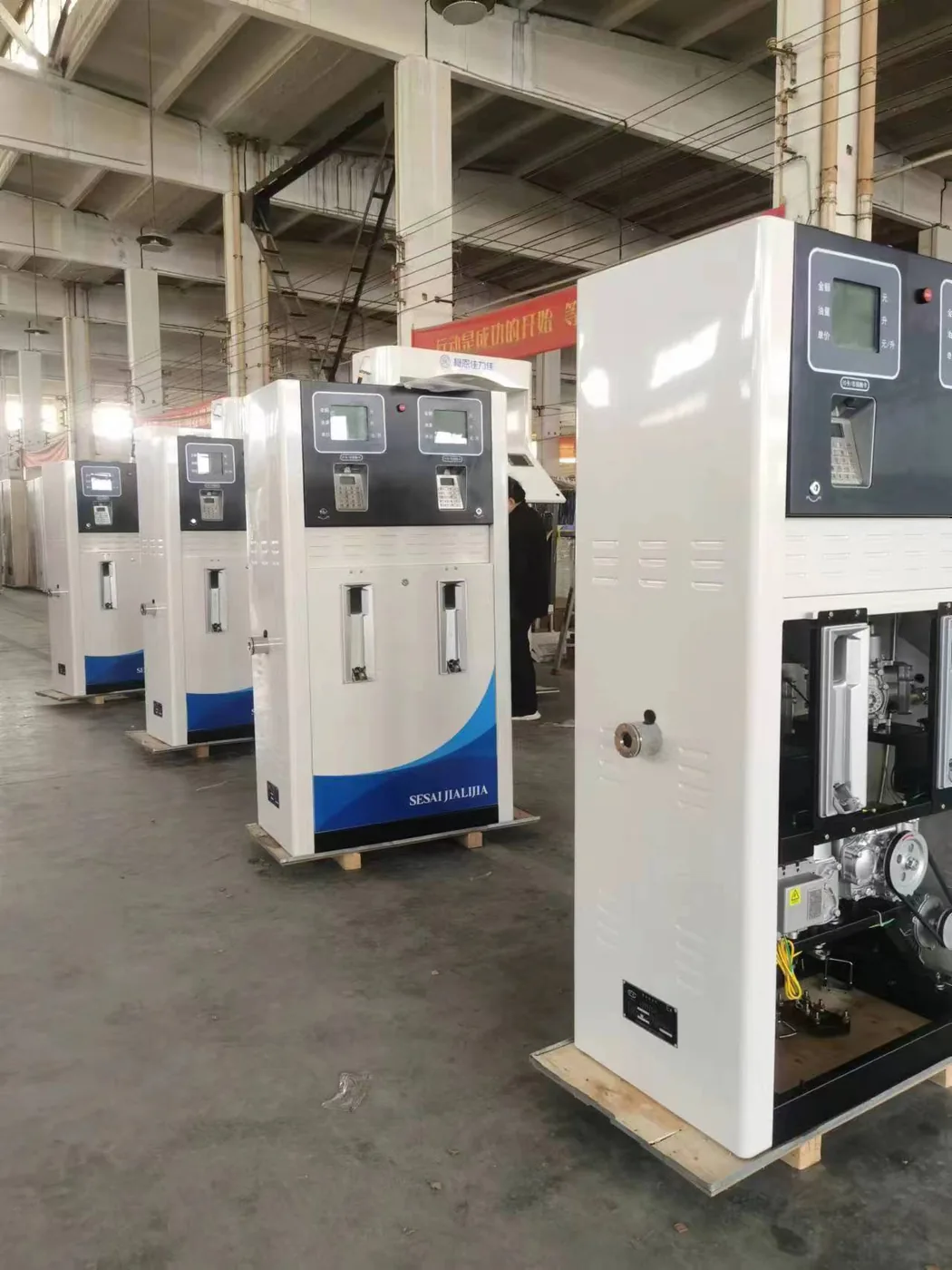

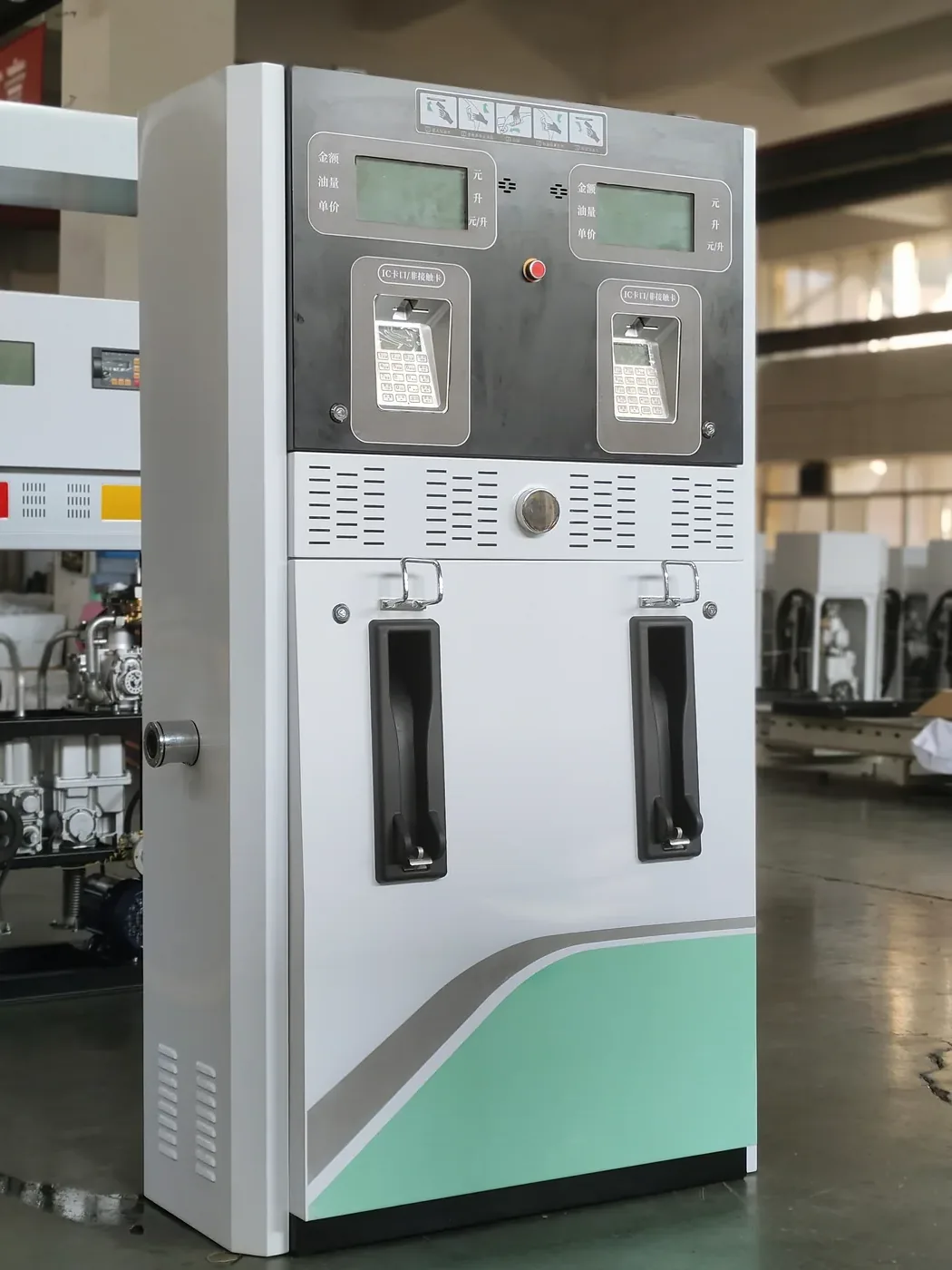

DT-T2 twin-nozzle compact fuel dispenser, DaTian 3D render, blue wave cabinet with two hoses (default view) DT-T2 twin-nozzle compact dispenser, DaTian 3D render with two hoses, side angle DT-T2 twin-nozzle compact dispenser, DaTian 3D render, blue wave cabinet Row of DT-T2 dispensers staged in the workshop, white cabinets with SESAI JIALIJIA branding DT-T2 twin-nozzle dispenser, white cabinet with green wave accent, workshop front view with both display panels visible DT-T2 twin-nozzle dispenser, white cabinet with blue wave accent, workshop front view with cabinet doors closed DT-T2 dispenser with open front panel, showing dual pump and motor assembly DT-T2 dispenser with open front panel, showing display modules and motor / pulser area
DT-T2 · 2 Nozzles

Twin Nozzle — Higher Throughput

1089 × 560 × 1700 mm. Same compact platform as the T1, widened to carry two independent pumping units — two products off one tank, or two vehicles side by side.

  • Net 1089 × 560 × 1700 mm — ships at 1140 × 600 × 1820 mm
  • Flow rate 50 / 80 / 120 LPM per side
  • Two products from one cabinet — gasoline and diesel, for example
  • Submersible (S) not offered on the compact platform — see DT-L
DT-T2 2222V 2222G

Best for two-product tank-side fuelling and higher-flow depot bays.

Request a Quote

Model Code Reference

VariantModelPumpConfigurationNet Size (mm)Package Size (mm)
DT-T1
1 nozzle · 670 mm wide		DT-T1111VVane1 pump · 1 nozzle · 1 display · 1 keyboard670 × 450 × 1350730 × 510 × 1450
DT-T1111GGear1 pump · 1 nozzle · 1 display · 1 keyboard670 × 450 × 1350730 × 510 × 1450
DT-T2
2 nozzles · 1089 mm wide		DT-T2222VVane2 pumps · 2 nozzles · 2 displays · 2 keyboards1089 × 560 × 17001140 × 600 × 1820
DT-T2222GGear2 pumps · 2 nozzles · 2 displays · 2 keyboards1089 × 560 × 17001140 × 600 × 1820

V = Vane pump · G = Gear pump. The four digits read pump – nozzle – display – keyboard — so 2222 is two of each. Every nozzle carries its own flow meter. Submersible not offered on the compact platform.

Choose Your Pump

Configuration Options

Pick the configuration that matches your site layout and duty cycle.

V: Vane Pump

Self-priming vane pump with suction lift up to 4 m. Best for sites without an underground submersible and where flow is below 50 L/min.

  • Suction lift: up to 4 m
  • Flow rate: up to 50 L/min
  • Lowest cost of ownership

Best for low-flow tank-side fuelling

G: Gear Pump

Positive-displacement gear pump with suction lift up to 6 m and up to 80 L/min.

  • Suction lift: up to 6 m
  • Flow rate: up to 80 L/min
  • Higher duty cycle

Best for higher-flow depot fuelling

S: Not on DT-T

Not offered on the DT-T platform. For submersible configurations use our DT-L series or pair a submersible turbine pump directly.

  • Submersible is a DT-L feature
  • DT-T always has an internal pump
  • Use DT-L for new builds

Choose DT-L for submersible

Applications

Where It Fits

Tank Farms

Inside-bund fuelling where a compact dispenser fits alongside the tank.

Depot & Workshop

Wall or floor mount next to the service bay, single or twin nozzle.

Construction & Mining Sites

Portable, compact, 5–80 L/min flow range covers most light equipment.
