DT-M Series — Multimedia LED Fuel Dispensers

Station dispenser with a built-in LED screen for in-store media, brand video, ad playback and live fuel information. Same four-digit code as the rest of the dispenser family — pumps · nozzles · displays · keyboards — with vane, gear or submersible hydraulics. Click any photo to view full size.

DT-G Series — High Performance DT-L Series — Balanced Design DT-T Series — Compact for Tanks DT-M Series — Multimedia LED DT-A Series — Entry Classic Classic Series — Cost-Effective DT-HF Series — High Flow Rate Truck-Mounted Dispensers
Multimedia Cabinet

An LED Screen Built Into the Dispenser

The DT-M is a standard four-digit-code dispenser with one extra feature: a large LED screen in the centre panel. Use it for in-store advertising, brand video, loyalty-programme content, or a live view of the fuelling transaction. The same hydraulics as the rest of the DT family, the same certifications, the same modular cabinet.

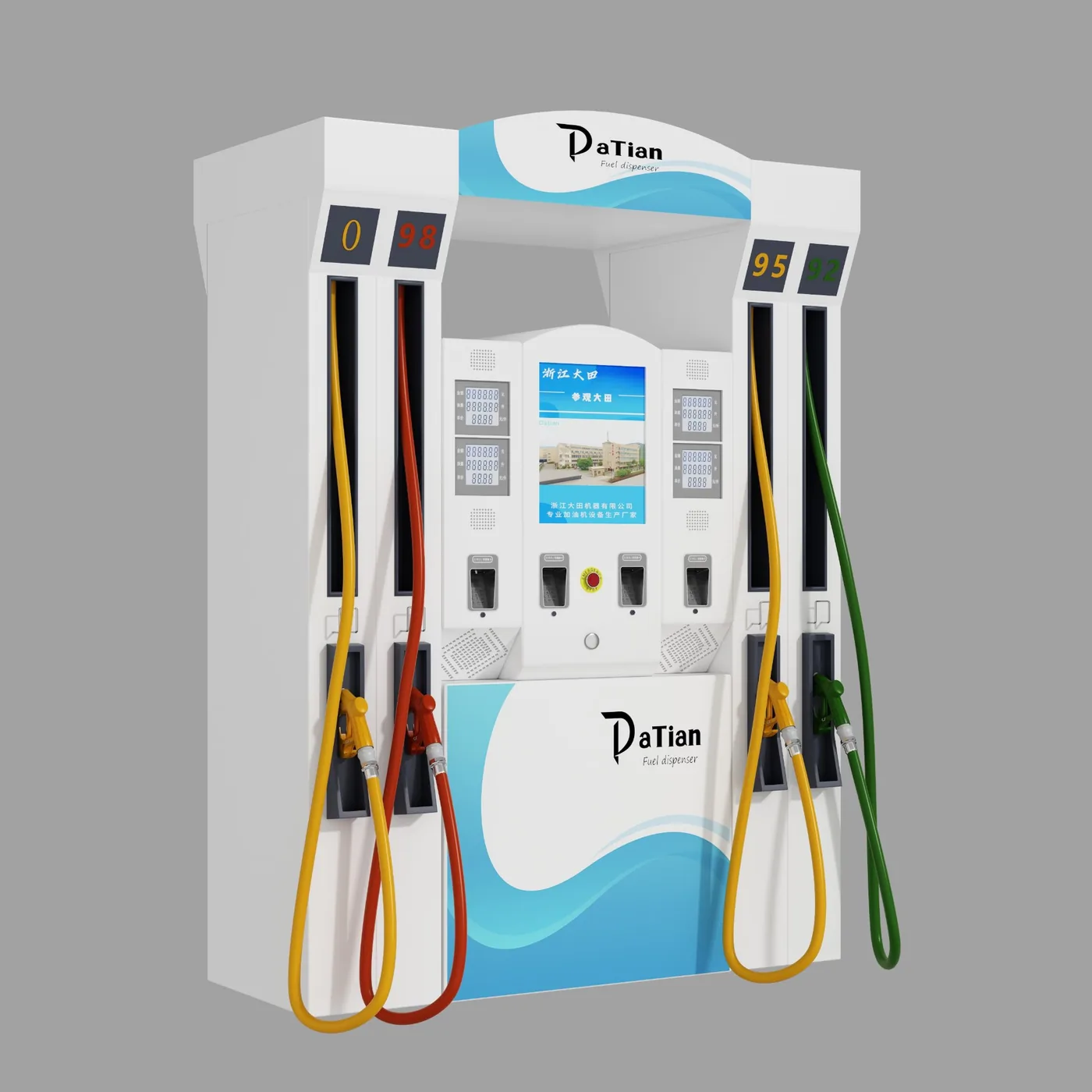

DT-M multimedia dispenser, DaTian 3D render, four-nozzle cabinet with built-in LED screen showing brand content, blue wave accent

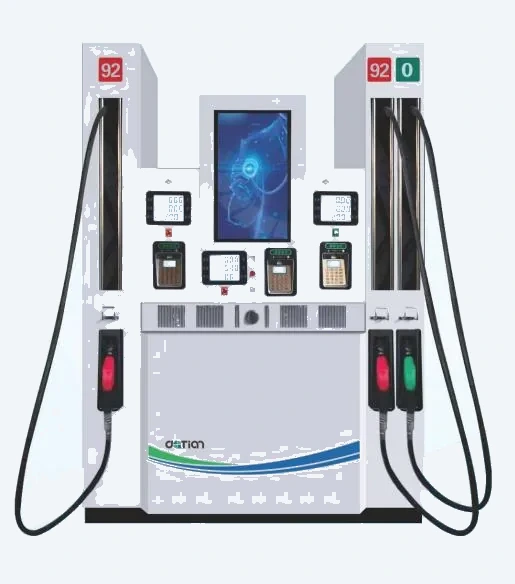

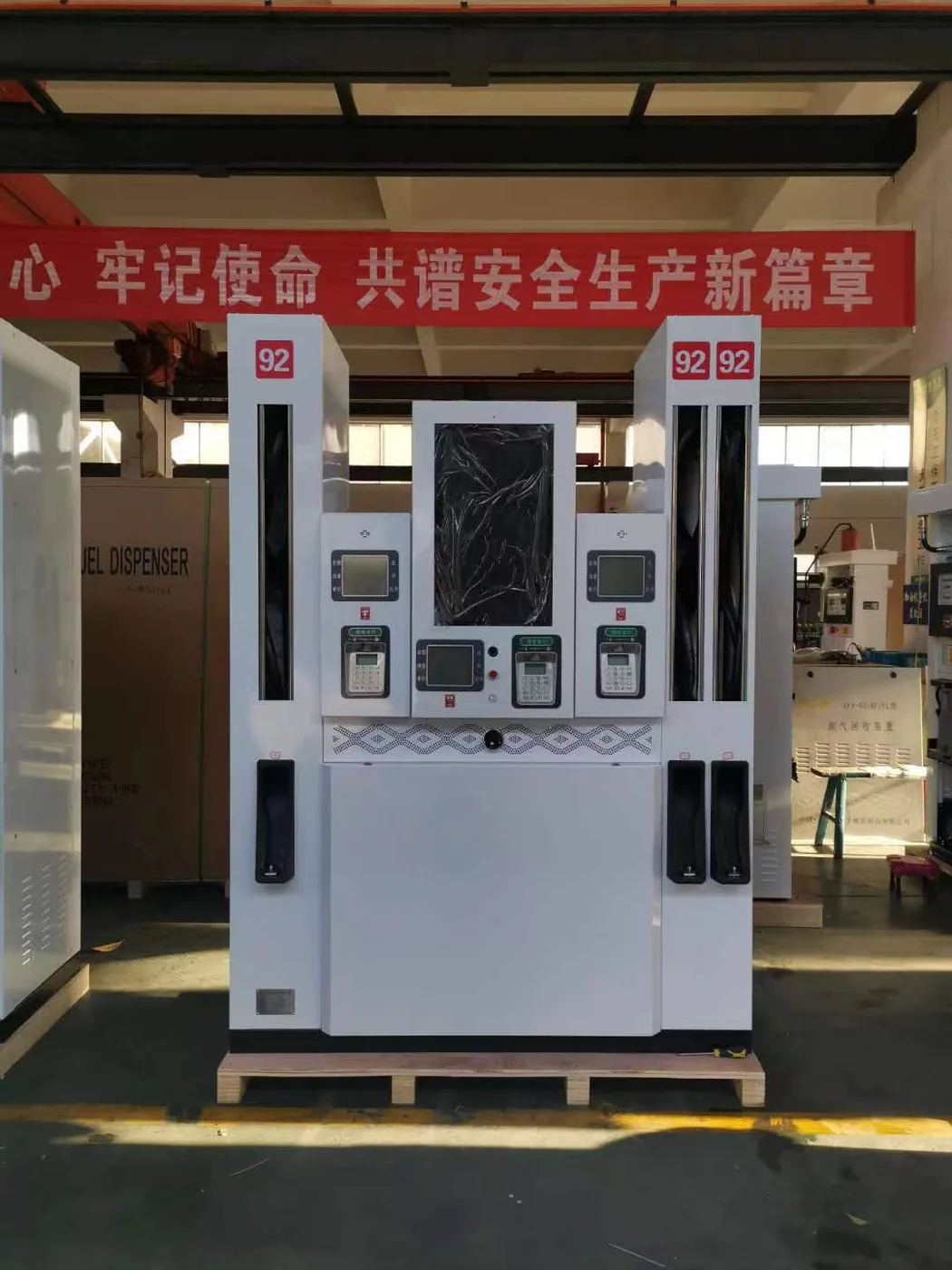

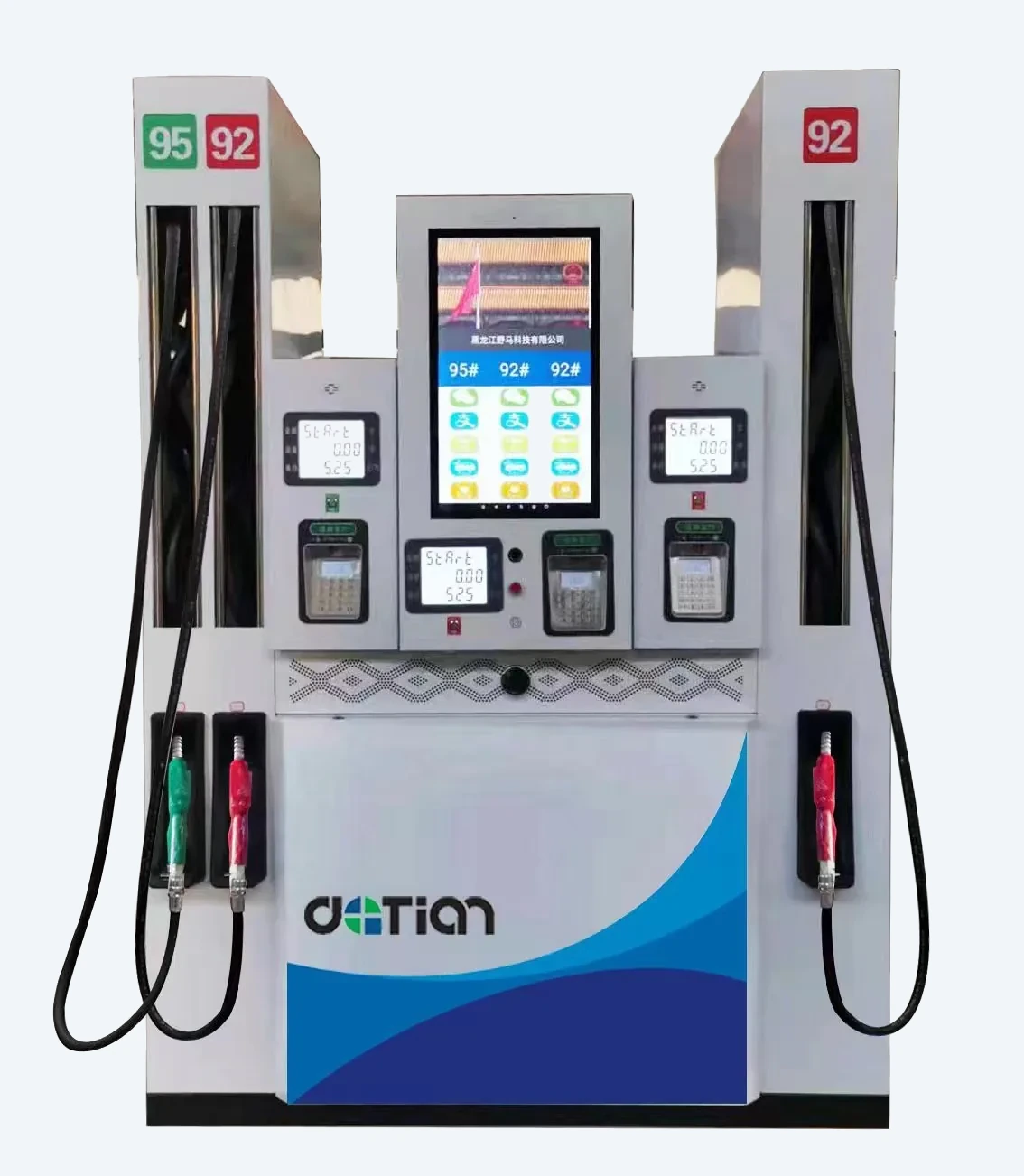

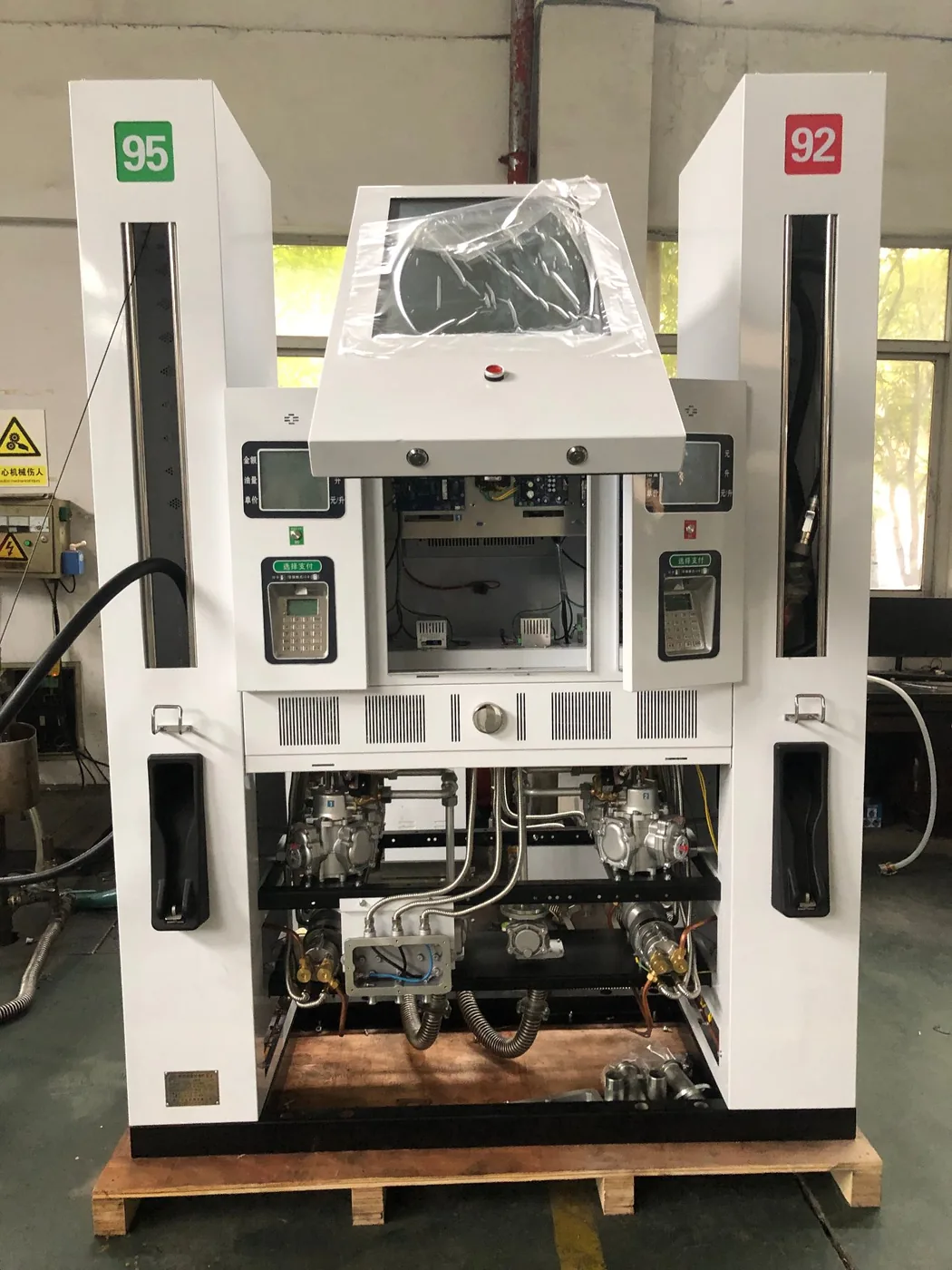

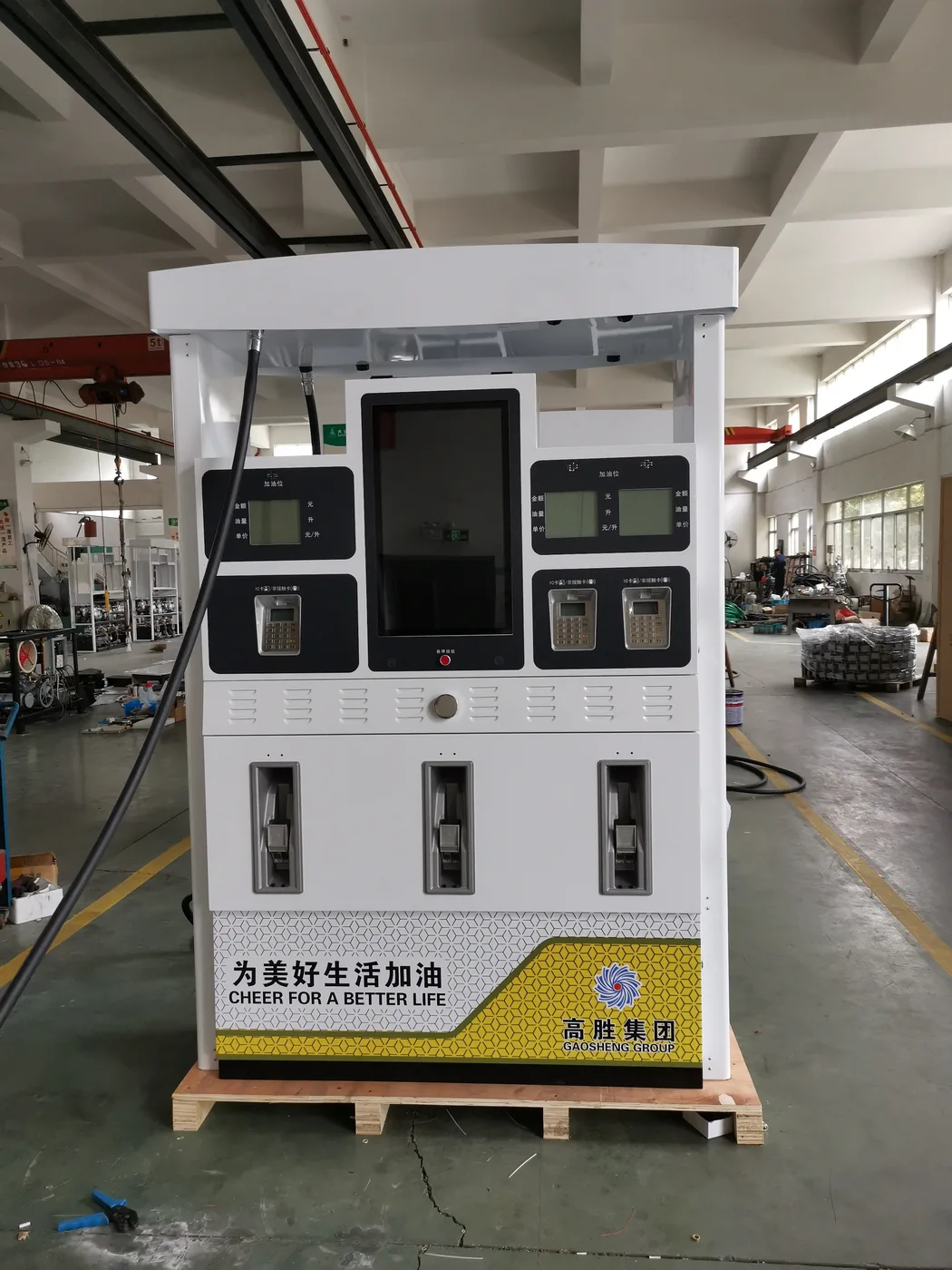

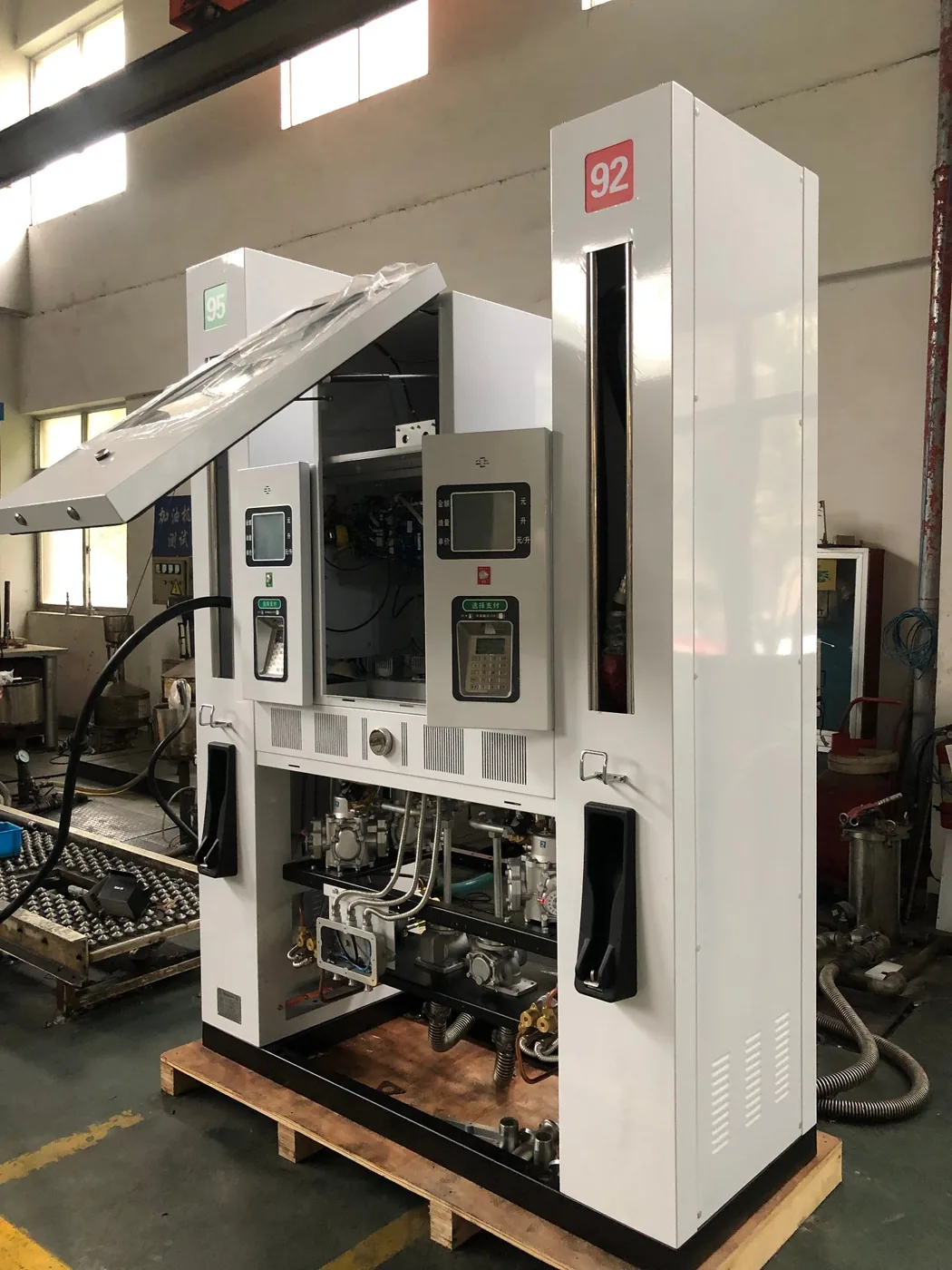

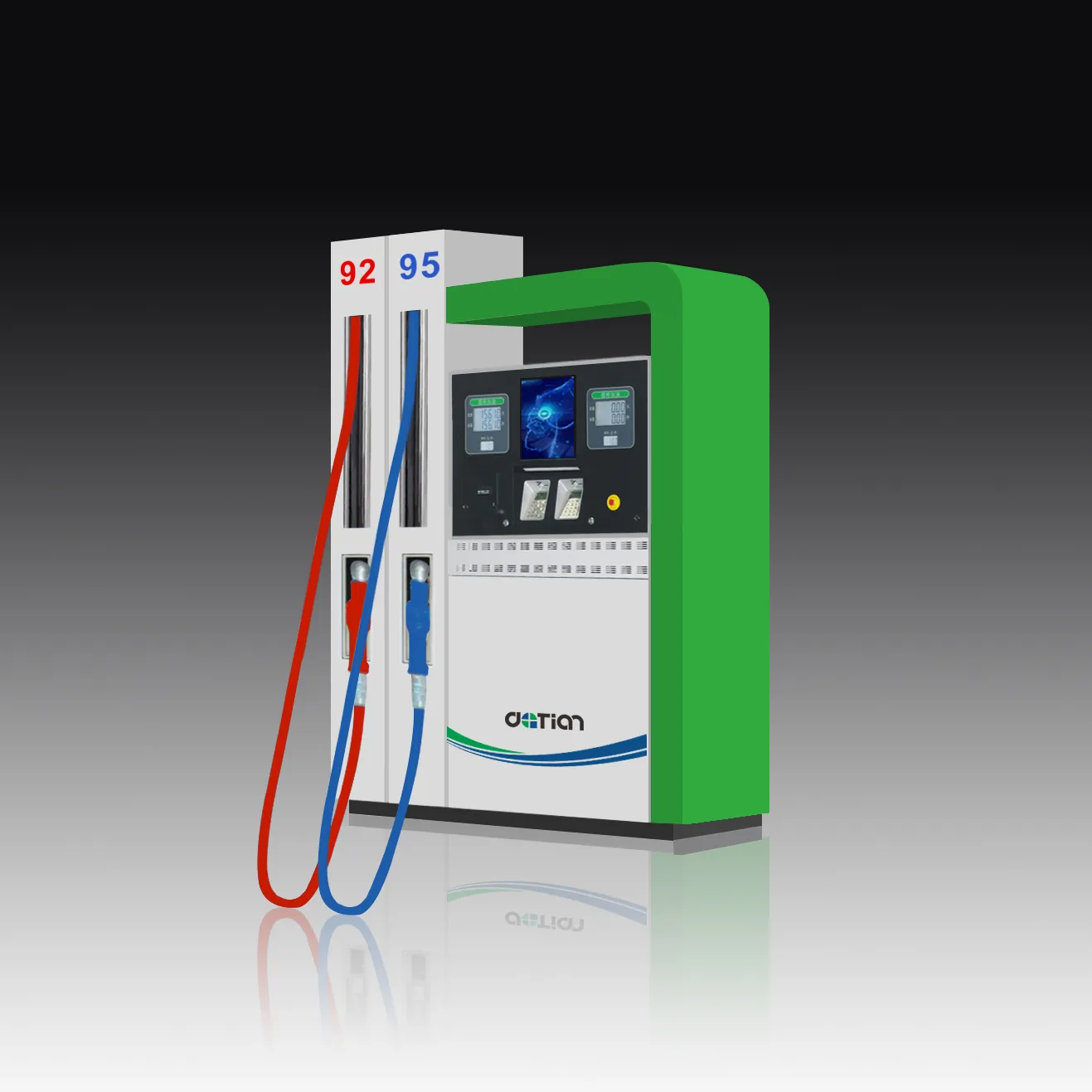

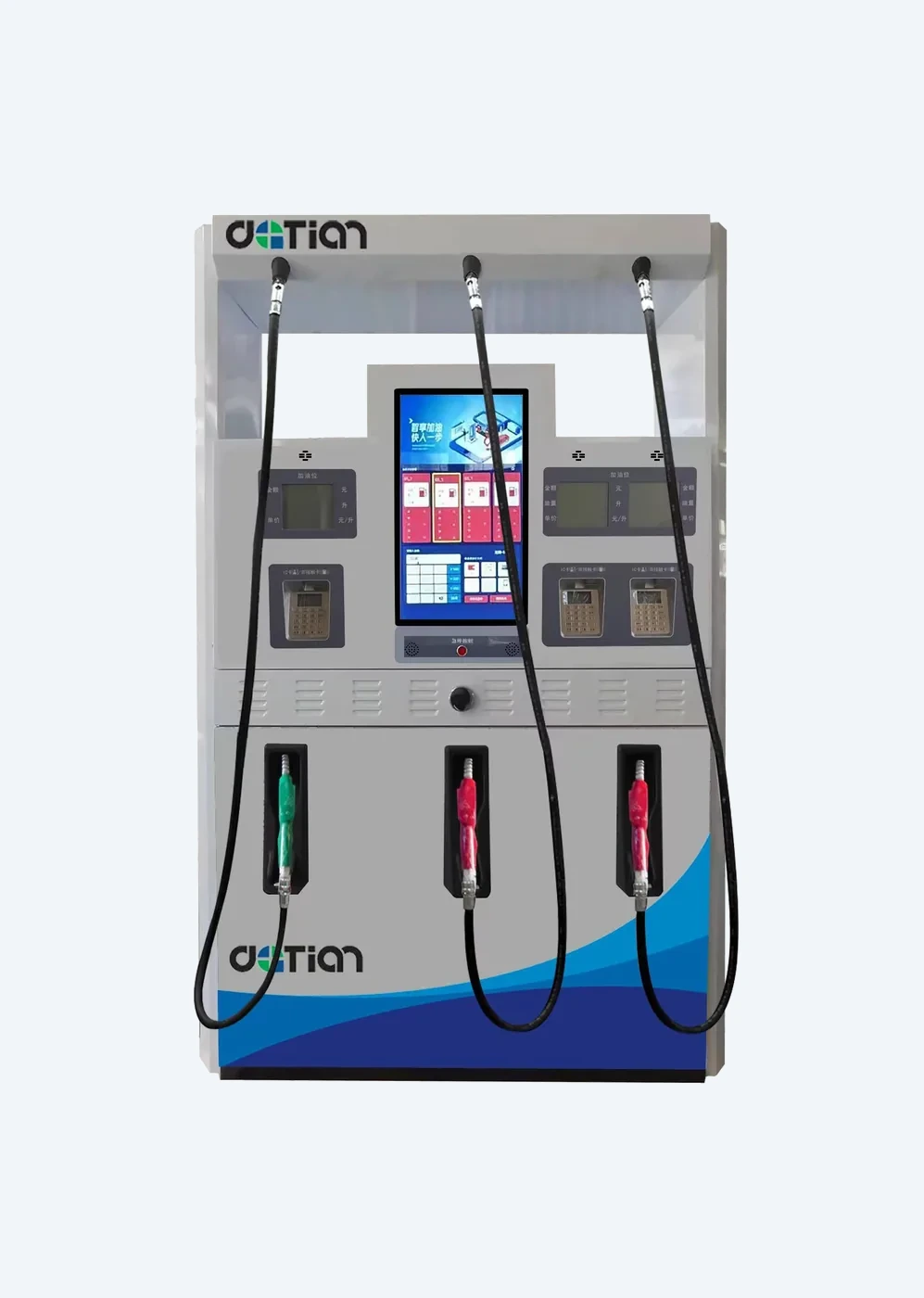

DT-M multimedia dispenser, DaTian 3D render, four-nozzle cabinet with built-in LED screen showing brand content, blue wave accent (default view) DT-M multimedia dispenser, DaTian 3D render, two-nozzle narrow cabinet with green surround and blue LED screen DT-M multimedia dispenser in the workshop, white cabinet with vertical LED screen and three nozzle holsters, customer branding DT-M multimedia dispenser, DaTian 3D render, two-nozzle cabinet with vertical LED center, blue wave accent DT-M multimedia dispenser in the workshop, white cabinet with large central LED covered with protective film, three display panels on top DT-M multimedia dispenser, DaTian 3D render, four-nozzle wide cabinet with vertical LED center, blue wave accent DT-M multimedia dispenser, DaTian 3D render, three-nozzle cabinet (two left, one right) with vertical LED center, DaTian logo on top DT-M multimedia dispenser with top cover open, two nozzles (95 and 92 labels), LED screen visible inside, hydraulic pump system exposed DT-M multimedia dispenser side view with top cover open, internal electronics and pump assembly visible
2 Pump · 4 Nozzle · 4 Display · 4 Keyboard

DT-M2444

The flagship multimedia cabinet: two pumps, four nozzles, four displays, four keyboards — and a large LED screen in the centre panel. The screen is driven by an industrial media player mounted inside the cabinet, fed with HDMI or USB. Use it to play advertising loops, brand content, station maps or a live transaction readout.

  • Built-in LED screen (vertical or horizontal mount, sized to cabinet)
  • 2 pumps · 4 nozzles · 4 displays · 4 keyboards
  • Net 1850 × 760 × 2380 mm — ships at 1910 × 820 × 2500 mm
  • Vane (V), gear (G) or submersible (S) hydraulics
  • Industrial media player inside, supports USB / HDMI / network feed
DT-M 2222 2332 2444 4666 4888

The five codes we build most often. Other combinations are quoted on request — the four digits read pumps → nozzles → displays → keyboards.

Request a Quote

Model Code Reference

Standard DT-M configurations. Every nozzle carries its own flow meter — one nozzle, one flow meter — so flow meters are not spelled out separately.

Model Pumps Nozzles Displays Keyboards LED Screen Cabinet
DT-M22222222StandardCompact
DT-M23322332StandardCompact
DT-M24442444StandardStandard
DT-M46664666LargeWide
DT-M48884888LargeWide

Reading the code

The four digits after DT-M read pumps → nozzles → displays → keyboards. Add the hydraulic suffix for the pump type: V vane, G gear, S submersible.

So DT-M2444V is a vane-pump multimedia dispenser with 2 pumps, 4 nozzles, 4 displays and 4 keyboards, plus the built-in LED screen. Every nozzle carries its own flow meter.

Net cabinet: 1850 × 760 × 2380 mm (ships 1910 × 820 × 2500 mm). The LED screen sits inside the centre panel and is wired to an industrial media player mounted in the same cabinet — feed it from USB, HDMI or a network connection. The screen size and orientation (vertical or horizontal) are sized to match the chosen cabinet width.

Choose Your Pump

Configuration: V · G · S

DT-M can be built with three different hydraulic configurations. The LED screen, electronics and cabinet are identical across all three — only the pumping unit changes.

V: Vane Pump

Self-priming vane pump built into the dispenser cabinet. Up to 50 L/min with a suction lift of about 4 m. Quiet operation and low maintenance — the default choice for retail sites that do not have an underground submersible pump.

  • Suction lift: up to 4 m
  • Flow rate: up to 50 L/min
  • Lowest noise at the island

Best for retail sites without submersible

G: Gear Pump

Positive-displacement gear pump with stronger suction — up to 6 m lift and 90 L/min. Built for busier islands and longer pipe runs between dispenser and tank.

  • Suction lift: up to 6 m
  • Flow rate: up to 90 L/min
  • Higher duty cycle

Best for high-flow retail & truck islands

S: STP

No pump unit inside the cabinet. The dispenser connects to a remote submersible turbine pump in the underground tank. Cooler, quieter and lower-energy — the modern choice for new builds.

  • No dispenser-side pump
  • Pairs with our STP series
  • Quietest, lowest-energy option

Best for new builds with underground tank

Applications

Where the DT-M Fits

Brand-Owned Stations

Show your own brand video, prices, loyalty programme or campaign on every cabinet — without separate digital signage hardware.

Highway Service Areas

The screen can run advertising or welcome messages while vehicles fuel — turning dwell time into ad revenue.

Corporate & Fleet Hubs

Display the driver's name, vehicle ID, fuel allowance or transaction summary live as the fuelling session runs.

Explore

Other Dispenser Series

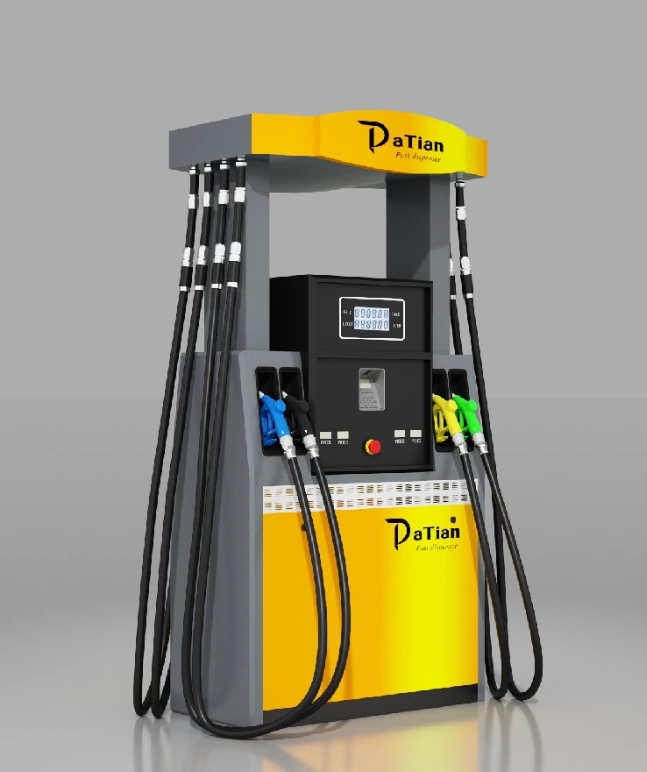

DT-G Series

DT-G Series

High-performance dispensers without built-in screen.

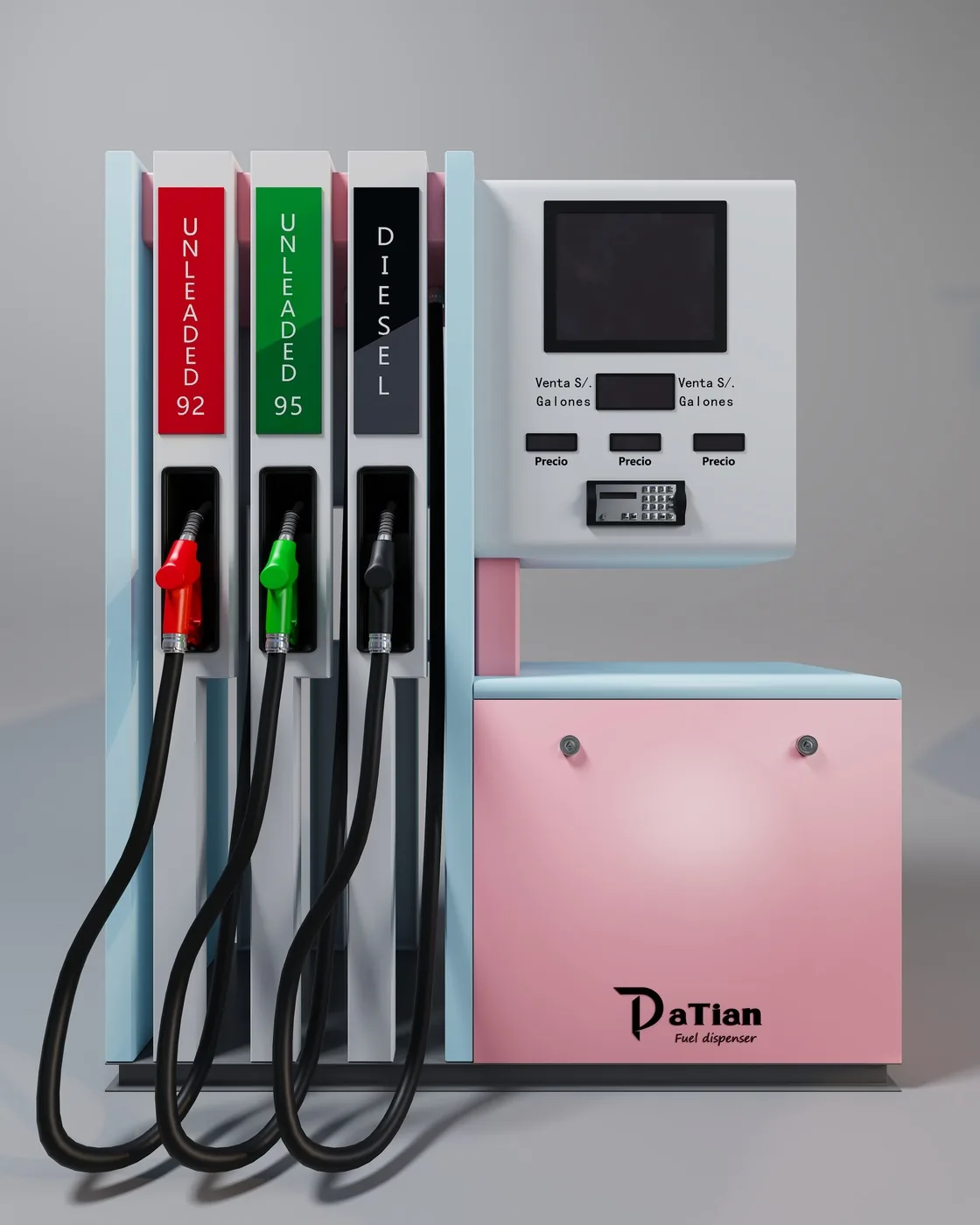

DT-L Series

DT-L Series

Balanced design for standard retail stations.

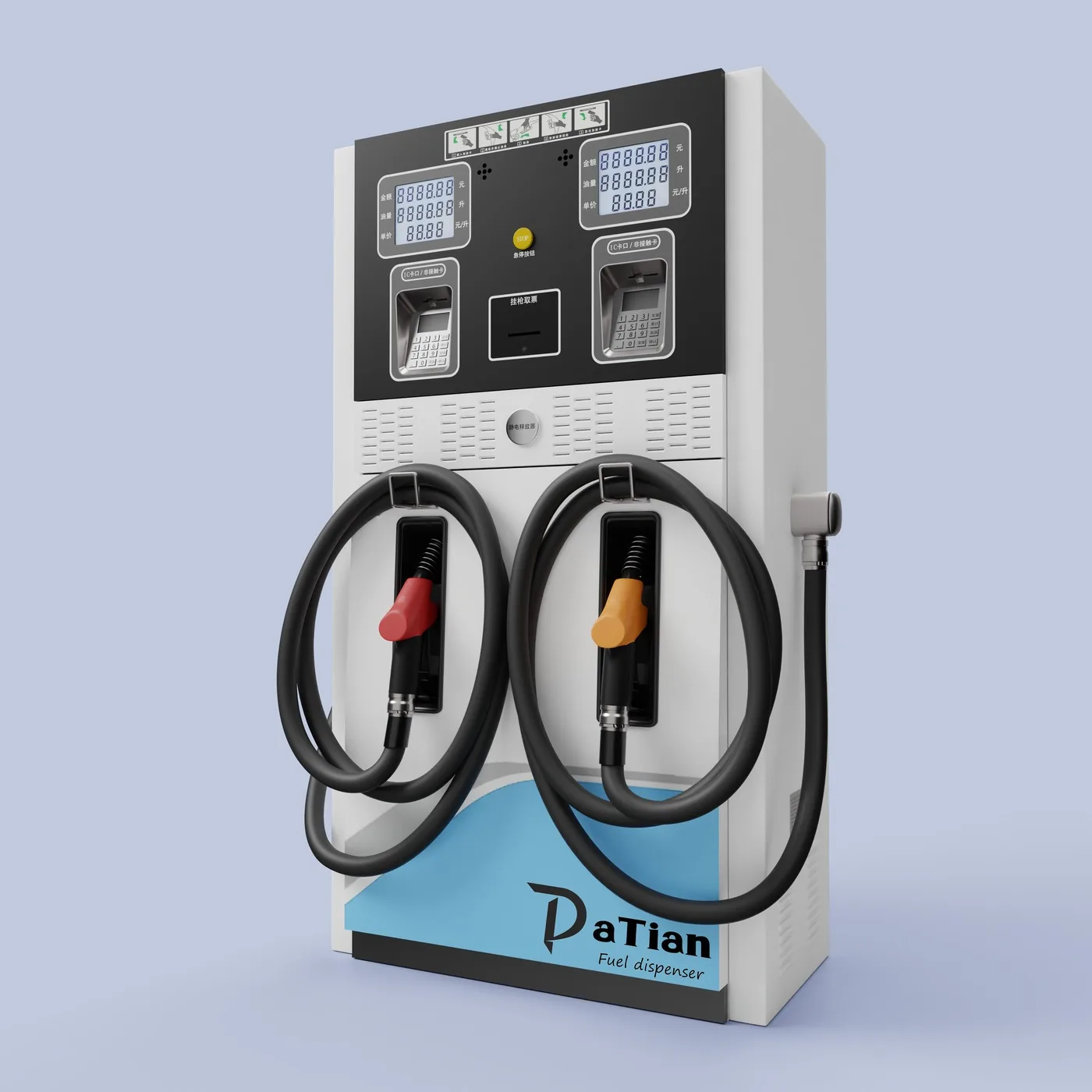

DT-T Series

DT-T Series

Compact dispenser for tanks and depots.

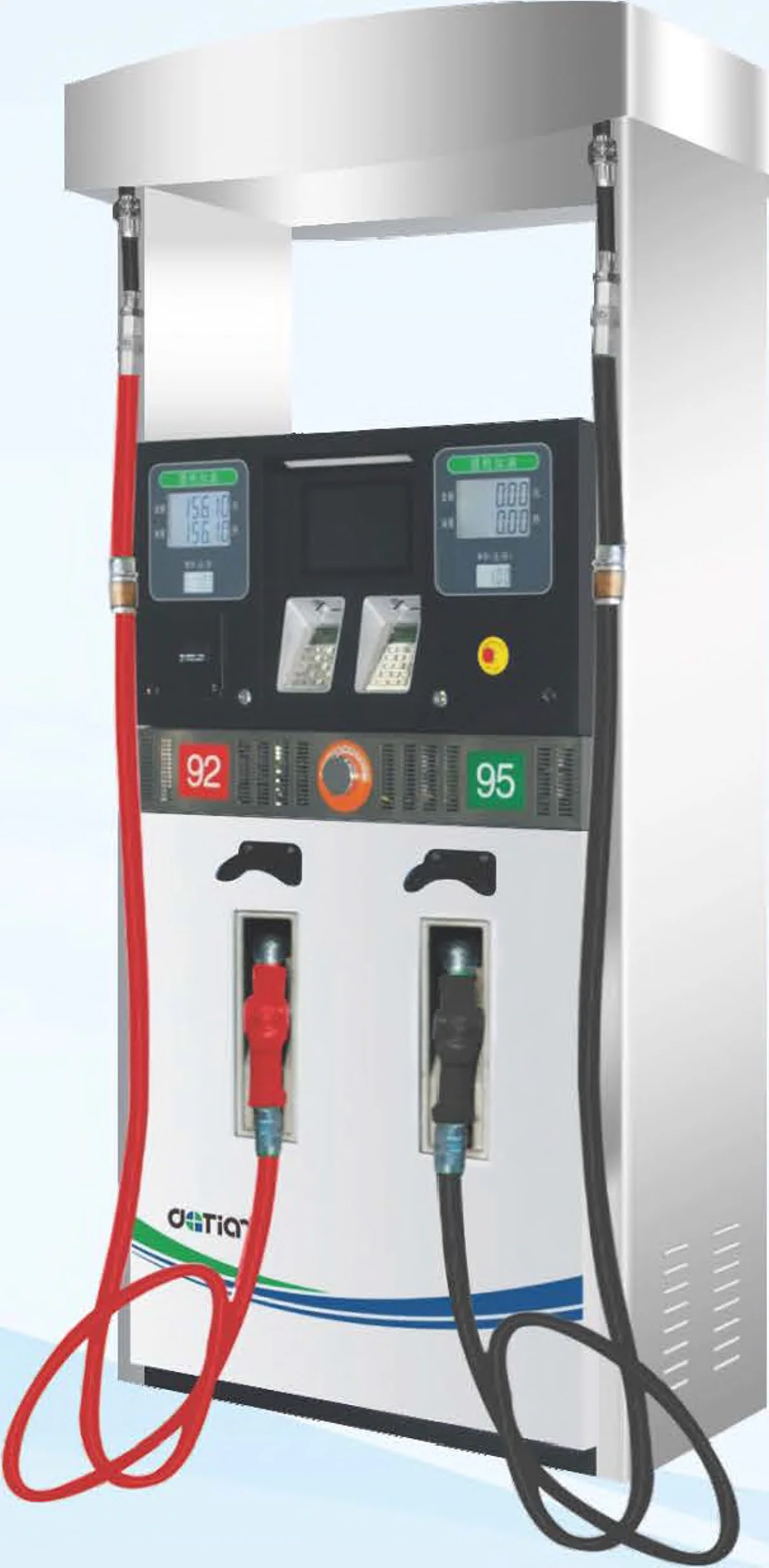

Classic Series

Classic Series

Cost-effective and proven cabinets.

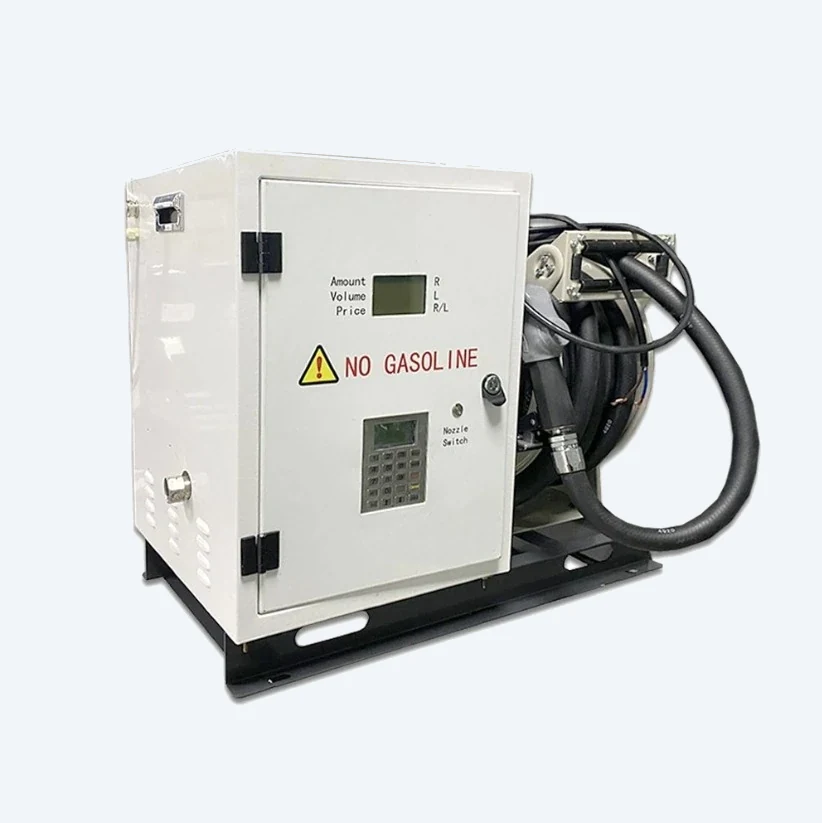

Truck-Mounted Dispensers
