Heavy-duty refuelling dispensers engineered for high-throughput stations, fuel-delivery fleets, mining operations and tank farms. Flow rates from 150 to 400 L/min in either open-skid or enclosed-cabinet configuration.

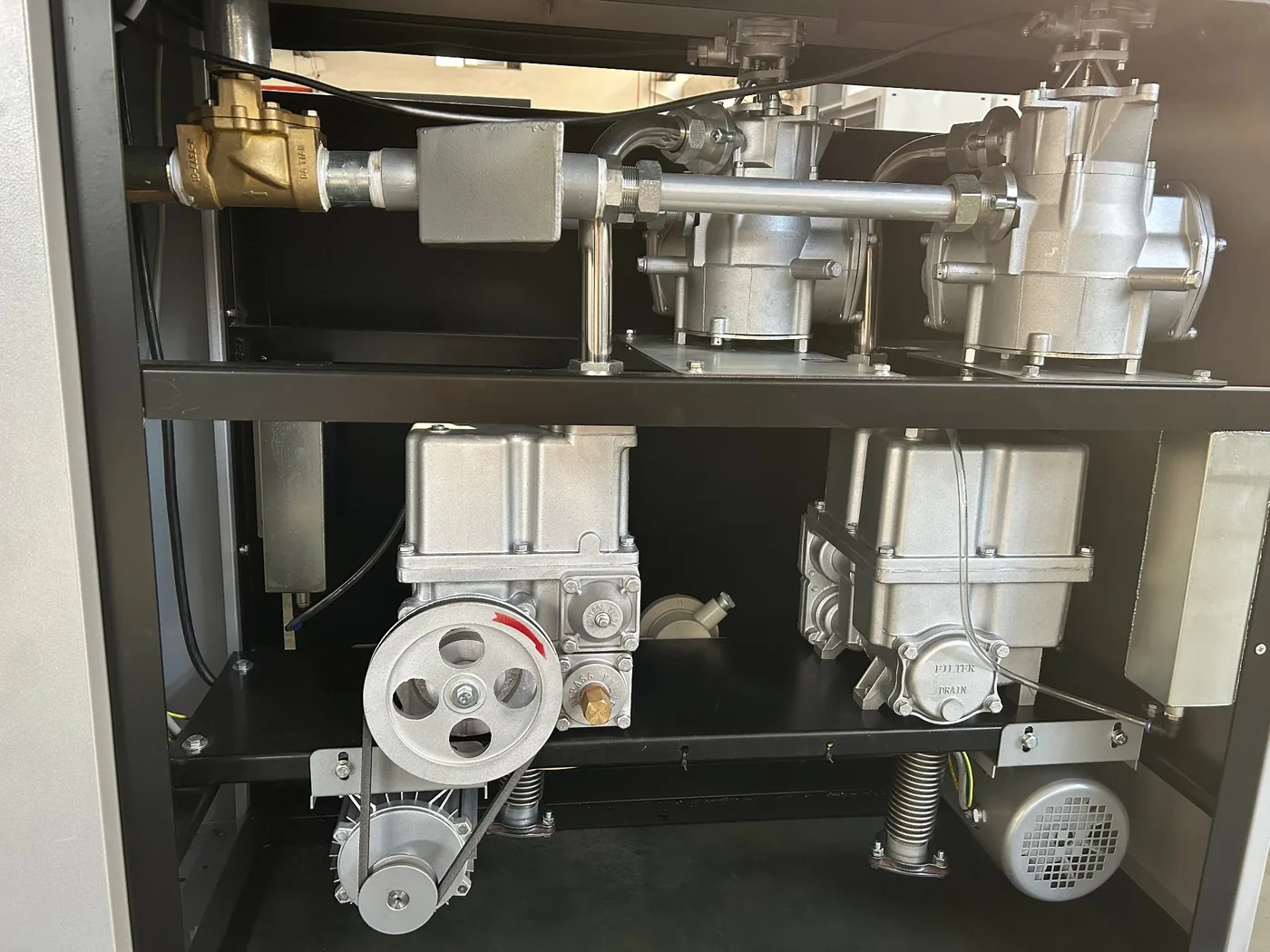

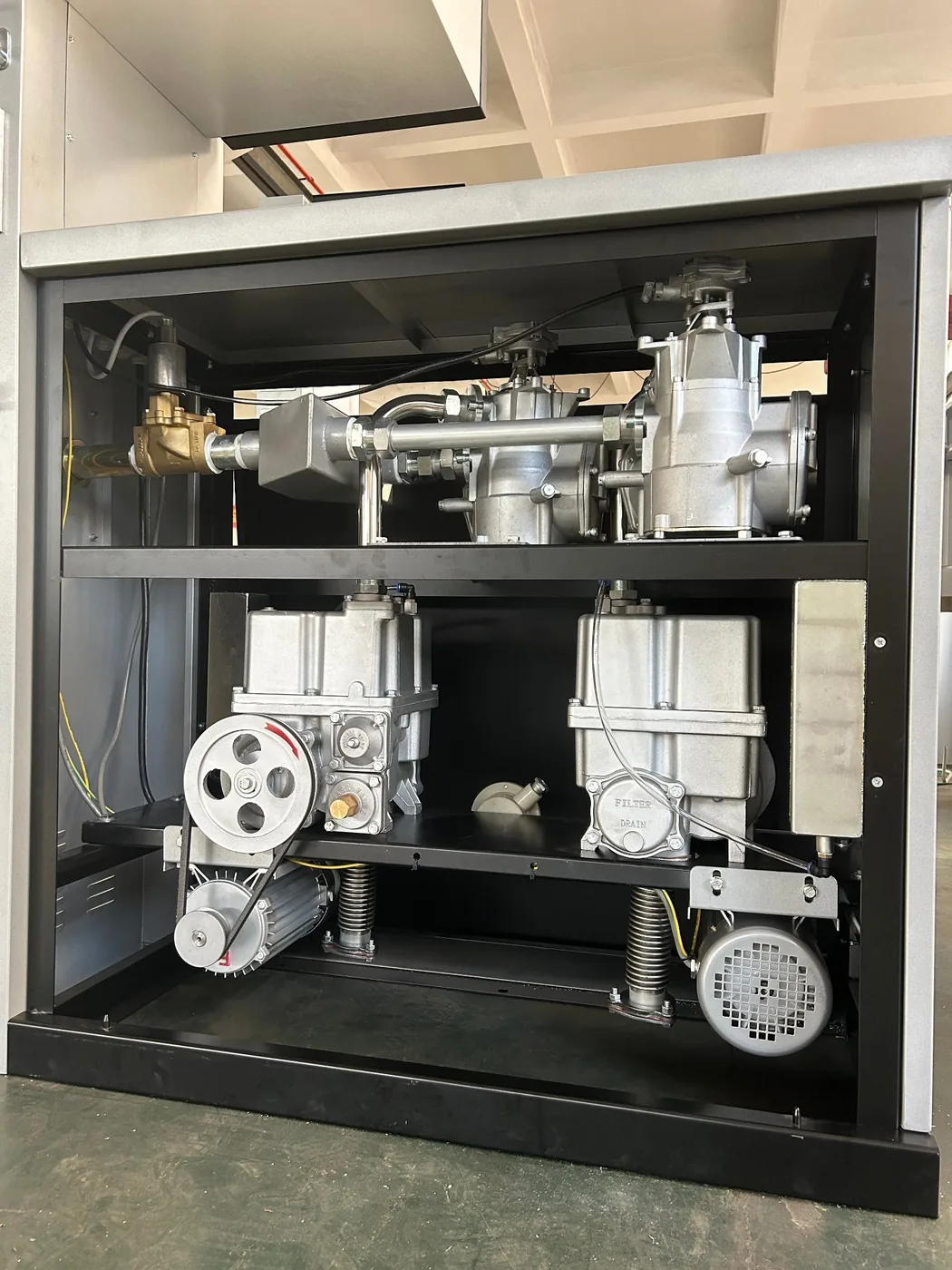

An industrial open-skid dispenser for the heaviest refuelling jobs. Twin heavy-duty vane pumps, twin filters and twin pulsers run side by side inside the cabinet to deliver steady 150–200 L/min flow without surge.
| Flow rate | 150–200 L/min |
| Pump configuration | Twin heavy-duty vane pumps |
| Filtration | Twin inlet filters with drain |
| Metering | Twin pulsers with mechanical register |
| Cabinet | Open-skid industrial frame |
| Display | Optional electronic register & preset |
| Best for | Mining sites, tank farms, fuel-delivery fleets |
| Ex-proof | Ex d mb IIA T4 Gb (CE011195) |
An enclosed-cabinet dispenser for high-throughput retail and fleet stations. Enclosed steel cabinet, card reader and TOTAL / LITROS / PRECIO displays for unattended and attended sales alike.
Built around a single heavy-duty gear pump sized for sustained 200–300 L/min flow. The cabinet front carries TOTAL / LITROS — one per side — PRECIO / LITROS, a card reader and a numeric keypad for preset and attendant sales.
| Flow rate | 200–300 L/min |
| Pump configuration | Single heavy-duty gear pump |
| Cabinet | Enclosed steel cabinet |
| Displays | TOTAL / LITROS + PRECIO / LITROS per side |
| Payment | Card reader · keypad for preset & attendant sales |
| Power supply | 380 V 50 Hz (220 V optional) |
| Best for | Highway stations, large commercial fleets |
| Ex-proof | Ex d mb IIA T4 Gb (CE011195) |

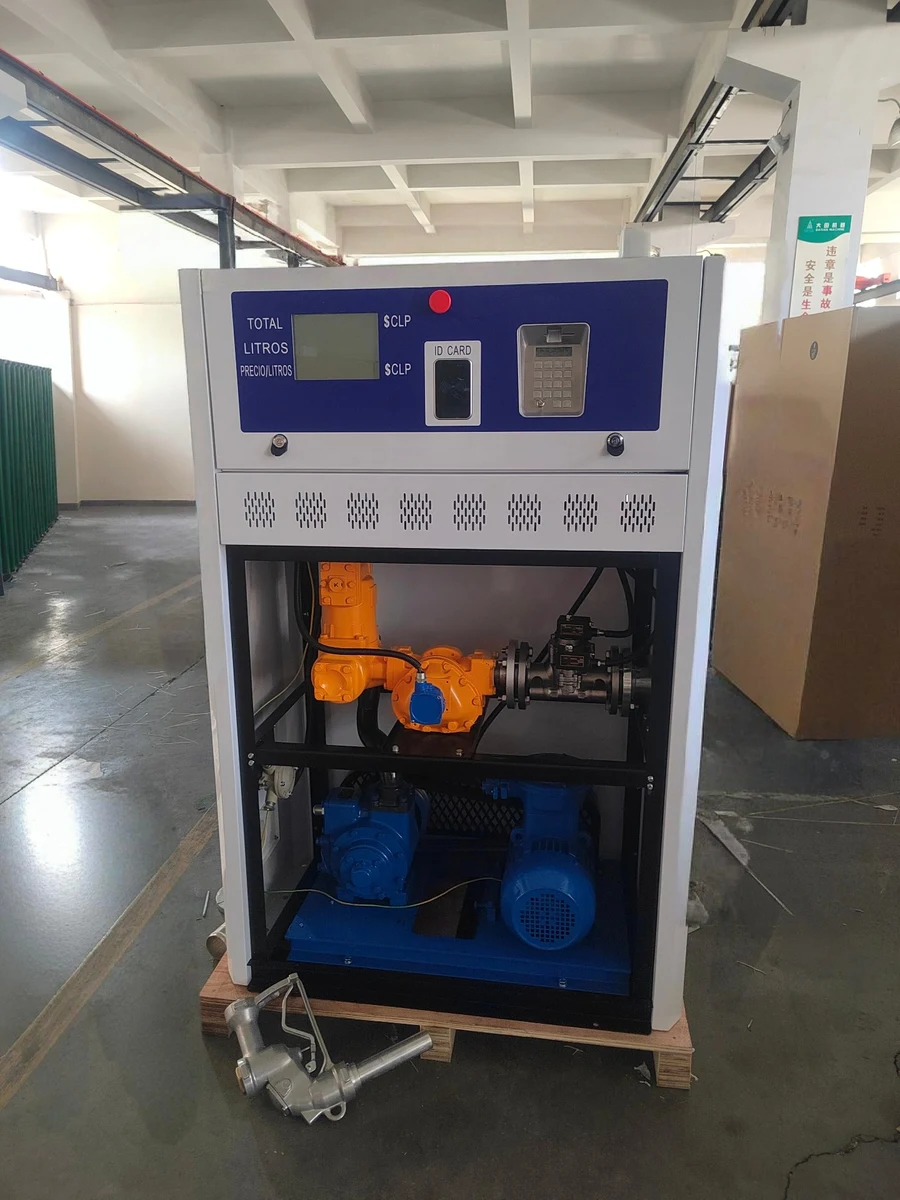

Top-of-range enclosed-cabinet dispenser for the most demanding sites. A larger gear pump and a sturdier frame hold 300–400 L/min continuous flow for mining, military and large logistics applications.
Configured for sustained 300–400 L/min flow with a high-capacity gear pump, reinforced cabinet frame and high-flow dispense hose. Tell us your site voltage and hose length and we will build to match.
| Flow rate | 300–400 L/min |
| Pump configuration | High-capacity heavy-duty gear pump |
| Cabinet | Reinforced enclosed steel cabinet |
| Displays | TOTAL / LITROS + PRECIO / LITROS |
| Payment | IC card reader · keypad · optional printer |
| Power supply | 380 V 50 Hz |
| Best for | Mining, military, large logistics, fuel depots |
| Ex-proof | Ex d mb IIA T4 Gb (CE011195) |
High-flow refuelling for sites where a standard 50 L/min dispenser cannot keep up.
Refuel haul trucks, excavators and loaders at the face. Open-skid 200L tolerates dust and vibration; enclosed 300–400L handles rain and remote weather.
Top-load a tanker truck in minutes, not hours. The shared 150–400 L/min envelope covers one-off loads and full depot top-ups.
High-throughput private fuel islands for logistics yards, container terminals and airport ground support.
Reduce queue time at busy truck stops. The 200–300L enclosed cabinet pairs with IC card and POS for unattended sales.
Field-deployable high-flow refuelling for armoured vehicles, generators and helicopters where downtime matters.
Mobile high-flow refuelling points for tower cranes, concrete pumps and site generators on large projects.
Standard flow rates from 5 to 90 L/min cover every retail and fleet scenario not listed above.
Heavy-duty up to 8 nozzles, V/G/S pump options.
Mid-tier up to 8 nozzles, V/G/S pump options.
Compact 1–2 nozzle dispensers for depots and tank farms.
Dispenser with a built-in LED screen for pump-side media.
Proven cabinets, three quality tiers (Economical / Speed / Luxury).
Mobile refuelling for fleets and on-site yards, 12 V to 380 V.
Tell us your peak flow, hose length and site conditions — we will spec the right DT-HF model and quote within 24–48 hours.
